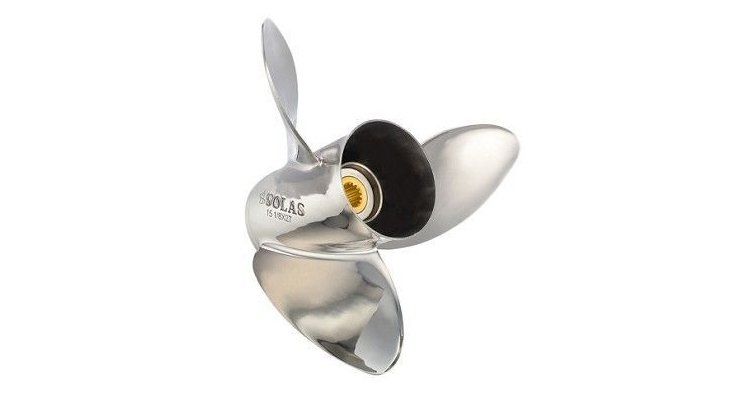

Stainless Steel Propeller HR Titan 3 13.9X23 Right Hand

Function and Technical Context

The HR Titan stainless steel 3-blade propeller with 13.9 inch diameter and 23 pitch in right-hand rotation converts the rotary energy of the outboard motor into direct thrust on the water, being the final mechanical link between the power unit and the effective propulsion of the vessel. Stainless steel, unlike aluminum, offers greater blade rigidity and lower tendency to flex under load, which translates into more faithful power transfer to the motor torque and more consistent propulsive performance throughout the service life of the component. The 23 pitch determines the theoretical advance per revolution and must be tuned to the motor's working RPM range: an incorrect pitch prevents the motor from reaching nominal revolutions under load, causing thermal overload, increased fuel consumption and premature aging of the internal components of the foot. This unit is specifically designed for Suzuki and OMC medium and high-power outboard motors, with hub and gear box geometry compatible with the motor feet of these manufacturers.

When to Replace This Component?

The clearest indicators that the propeller requires replacement are: perceptible vibrations in the motor foot or hull at any cruising speed, persistent cavitation that does not disappear when varying the mounting height, loss of top speed with the motor in perfect maintenance condition, or visible structural damage such as bent blades, notched, cracked or material stripped after impact with a submerged object. It is recommended to visually inspect the propeller at each seasonal haul-out, checking the condition of the blades, rubber hub and shear pin, replacing the latter whenever it has failed. Acting preventively at any deformation, however slight, avoids the rotational imbalances that eventually damage the shaft seals, the foot bearings and the universal joint, whose repair costs far more than a new propeller.

Compatible Johnson/Evinrude Motors

Equivalent Manufacturer References
