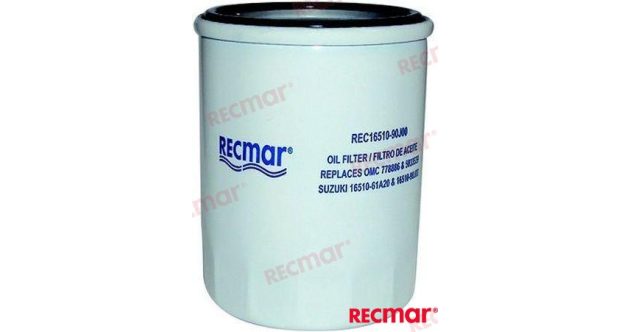

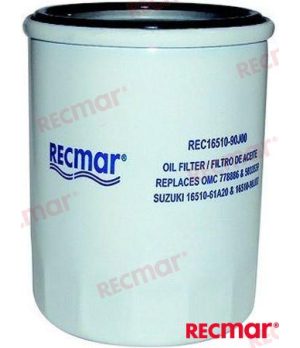

Oil Filter 16510-61A20-MHL 16510-90J00

Function and Technical Context

The oil filter operates within the lubrication system of the outboard engine, retaining metallic particles, combustion residues and suspended contaminants that circulate with the lubricant through the internal passages of the block. Its purpose is to keep the oil clean between changes so that it reaches the crankshaft, connecting rods, camshaft and other friction surfaces with the least abrasive load possible. A clogged filter forces the bypass valve to open, allowing dirty oil to lubricate the engine and silently but progressively accelerate internal wear. In medium and high-power four-stroke engines such as the Suzuki DF series 70A–140, proper lubricant filtration is critical for long-term reliability, especially in demanding navigation or intensive use.

When to Replace This Part?

The most common symptoms of an exhausted or faulty oil filter are unstable or low oil pressure indicated on the gauge, illumination of the lubricant pressure warning lamp at idle and a slight increase in fuel consumption or mechanical noise in the block. On four-stroke outboard engines it is recommended to replace the oil filter at each lubricant change, generally every 100 operating hours or at the beginning of each season if annual use is below that interval. Replacing the filter preventatively along with the oil is the most economical practice to avoid major engine breakdowns away from port.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
