Sealed gasket for the cooling pump on Suzuki outboard motors. Compatible with DF9.9, DF15T-K3, DT9.9, DT15 in versions 1986-2004.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

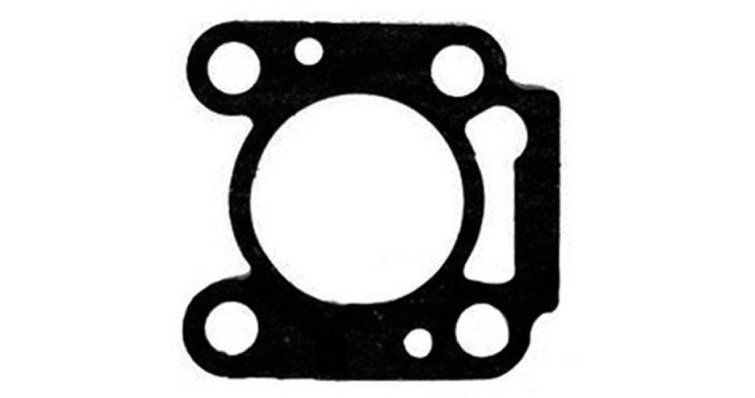

Water Pump Gasket Suzuki 17452-93910
REC17452-93910
€3.46
Tax included
Sealed gasket for the cooling pump on Suzuki outboard motors. Compatible with DF9.9, DF15T-K3, DT9.9, DT15 in versions 1986-2004.
Description
Function and technical context
The water pump gasket acts as a sealing element between the sections of the raw water cooling pump, preventing leaks that would compromise coolant flow through the outboard engine cooling circuit. It operates within the cooling system, sealing the joint between the pump housing and the engine body to ensure that water drawn from outside circulates correctly to the cooling passages of the block and cylinder head. Deterioration of this gasket causes flow loss, progressive engine overheating, and in advanced cases, severe damage to the impeller, block, or cylinder head. Its correct replacement during each water pump service is essential to maintain the integrity of the cooling system in Suzuki engines of the DF and DT series.
When to replace this part?
The most common signs that the water pump gasket has lost its sealing capacity are: presence of moisture or crystallized salt traces around the pump housing, temperature alarm active during navigation, or visible reduction in the cooling water flow from the engine drain outlet. It is recommended to replace this gasket whenever the water pump is disassembled, typically coinciding with impeller replacement every 200-300 operating hours or at the start of each season in intensively used vessels. Reusing a deformed gasket or one with permanent compression marks is the main cause of leaks after assembly, so preventive replacement avoids costly breakdowns and unexpected stops at sea.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| J10 | J10BL4SUM, J10EL4SDA, J10EL4SOR, J10EL4SRC, J10EL4SUM, J10R4SDM, J10R4SNF 4-Stroke, Tiller, Rope, Carburetor, White, 15" Shaft 2002, J10R4SOA, J10R4SR (R and F), J10R4STC, J10R4SUB, J10RBL4STS, J10REL4STS, J10RL4SDM, J10RL4SNF 4-Stroke, Tiller, Rope, Carburetor, White, 20" Shaft 2002, J10RL4SOA, J10RL4SR (R and F), J10RL4STC, J10RL4SUB, J10TBL4SDE, J10TBL4SOB, J10TBL4SR (M and F), J10TBL4STC, J10TBL4SUD, J10TE4SDM, J10TE4SNF 4-Stroke, Tiller electric, Carburetor, White, 15 in., 2002, J10TE4SOA, J10TE4SR (R and F), J10TE4STC, J10TE4SUB, J10TEL4SDM, J10TEL4SNF 4-Stroke, Tiller electric, Carburetor, White, 20 in., 2002, J10TEL4SOA, J10TEL4SR (R and F), J10TEL4STC, J10TEL4SUB |
| J15 | J15EL4SDC, J15EL4SOS, J15EL4SUR, J15R4SDM, J15R4SNF 4-Stroke, Tiller, Rope, Carburetor, White, 15" Shaft 2002, J15R4SOA, J15R4SR (R and F), J15R4STC, J15R4SUB, J15RL4SDM, J15RL4SNF 4-Stroke, Tiller, Rope, Carburetor, White, 20" Shaft 2002, J15RL4SOA, J15RL4SR (R and F), J15RL4STC, J15RL4SUB, J15TE4SDM, J15TE4SNF 4-Stroke, Tiller electric, Carburetor, White, 15 in., 2002, J15TE4SOA, J15TE4SR (R and F), J15TE4STC, J15TE4SUB, J15TEL4SDM, J15TEL4SNF 4-Stroke, Tiller electric, Carburetor, White, 20 in., 2002, J15TEL4SOA, J15TEL4SR (R and F), J15TEL4STC, J15TEL4SUB |
Equivalent manufacturer references
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 5033110 |
| Suzuki | 17452-93901, 17452-93910, 17452-93910-000 |
Related Johnson/Evinrude Spare Parts
If you are maintaining or repairing your Johnson/Evinrude engine, these spare parts might also interest you:
- Anodo Placa 5030907Category: Anodes Johnson Evinrude
- Reten Aceite 09289-17006Category: Oil Seals Johnson Evinrude
- Filtro Aceite 16510-05240Category: Oil Filters Johnson Evinrude
- Filtro Gasolina 15410-98500Category: Inline Fuel Filters Johnson Evinrude
- Base Bomba Agua Suzuki 17471-93902Category: Impeller Covers Johnson Evinrude
Product Details
REC17452-93910
Specific References
