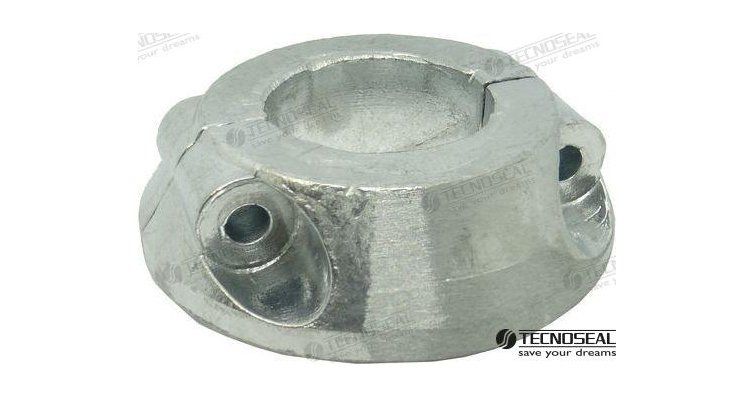

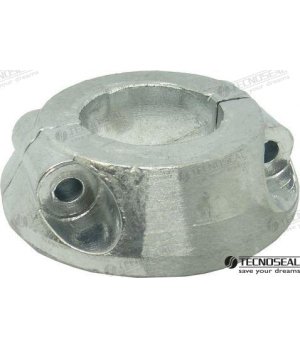

MAX PROP COLLAR 42mm.

Function and technical context

The 42mm Max Prop variable pitch propeller collar is the axial positioning and fastening element that secures the propeller assembly to the tailshaft, ensuring that the Max Prop unit is correctly secured and aligned with respect to the stern tube and gearbox. It works directly in the propulsion transmission system, acting as a structural stop that prevents the longitudinal displacement of the propeller hub on the shaft. If this collar degrades, cracks or loses its adjustment, the propeller can develop axial play, generating abnormal vibrations in the shaft line, premature wear of the stopper and, in extreme cases, loosening of the propulsion assembly during navigation.

When to replace this part?

The most common symptoms that indicate that the collar needs to be checked or replaced are: noticeable vibration in the horn or rudder at certain revolutions, clicking noise from the propeller during gear change maneuvers, and detectable play when manually moving the Max Prop propeller assembly on the shaft when grounded. It is recommended to visually inspect the collar at each seasonal dry run and replace it if there is any sign of galvanic corrosion, deformation or loss of tightening; A preventive replacement in the shipyard avoids a breakdown in the shaft line in offshore navigation, the repair of which would be considerably more expensive.

Compatibility table
