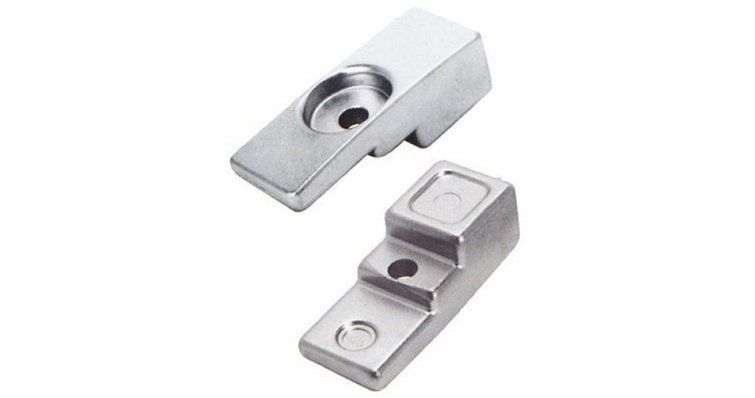

Plate Anode for Evinrude 5032930

Function and Technical Context

This plate anode acts as cathodic protection on the gear case housing of Johnson and Evinrude outboard motors, drawing galvanic corrosion toward itself that would otherwise degrade the structural metal parts of the transmission. It operates within the corrosion protection system of the submerged portion of the motor, absorbing the electrochemical oxidation generated by contact between dissimilar metals and saltwater or brackish water. Its progressive deterioration is completely normal and desired—it indicates that it is performing its function—but if it becomes completely consumed, it leaves the motor foot housing and transmission shaft components exposed to galvanic attack, resulting in severe structural damage and costly repairs. It directly replaces manufacturer references 5032543 and 5032930, and is also compatible with Suzuki motors through reference 55321-90J01.

When to Replace This Part?

The clearest indication that the plate anode needs replacement is a reduction in mass exceeding 50% compared to the new condition: when the anode appears irregularly eroded, very thin, or with completely consumed areas, it no longer offers sufficient protection. Standard practice on marine vessels is to inspect and replace anodes at the beginning of each season or whenever the motor has been in the water for more than six months; in high salinity zones or aggressive waters, the interval can be considerably shortened. Replacing the anode preventively, before it disappears entirely, is the most economical measure to prevent corrosion of transmission parts, whose repair can multiply the cost of this component many times over.

Compatible Johnson/Evinrude Motors

Equivalent Manufacturer References
