SUZUKI WATER PUMP KIT

Function and technical context

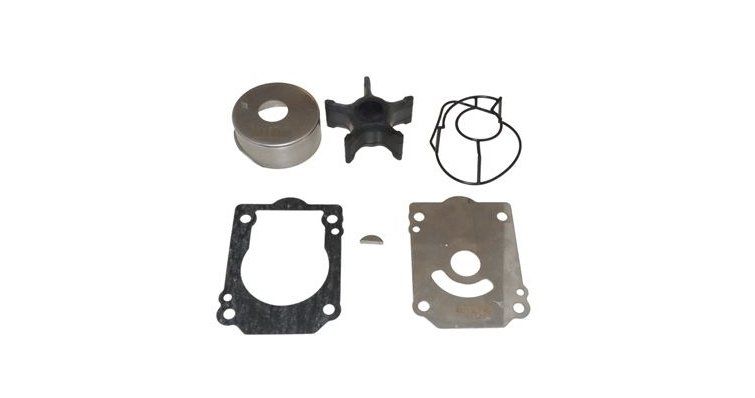

The water pump kit is part of the outboard's seawater cooling circuit, being the component responsible for boosting the flow of water that cools the engine block, cylinder head and exhaust manifolds. In the high-power Suzuki engines of the DF150, DF175, DF200, DF225 and DF250 series, this system works continuously from start-up, which subjects the impeller and the assembly parts to progressive wear due to abrasion, cavitation and hardening of the elastomer. A complete kit includes the impeller, pump casing, wear plate and sealing elements necessary to restore pumping capacity to factory level. If the pump loses efficiency, the engine temperature rises, the overtemperature pilot light is activated and the protection system reduces power to prevent serious damage to the propeller.

When to replace this part?

The most common symptoms of a deteriorated water pump kit are a weak or intermittent jet of cooling water from the discharge pilot, an overtemperature alarm during navigation and, in advanced cases, overheating with forced loss of power by the protection control unit. It is recommended to replace the assembly every 300 hours of use or, at least, every two sailing seasons, since the impeller elastomer loses flexibility even in engines with few hours if it remains static for months. Renewing the kit preventively at each stranding maintenance prevents serious breakdowns at sea and guarantees optimal engine cooling throughout the entire speed range.
