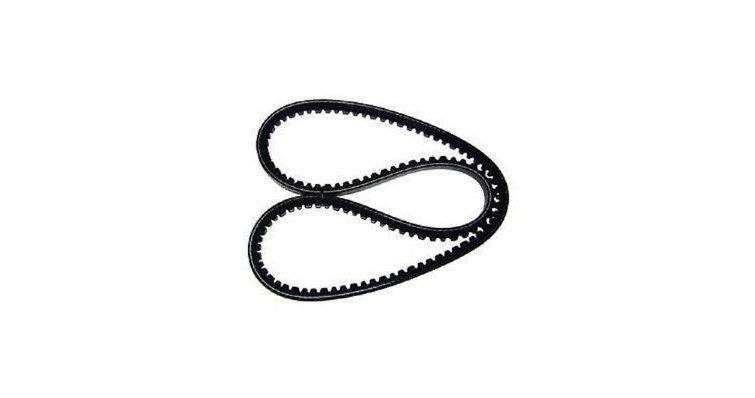

Yanmar Belt 121850-42280E

Function and technical context

The V-belt type A46 with reference 121850-42280E is part of the belt transmission system of Yanmar diesel engines of the 4LH and 4LHA series, acting as a mechanical link between the crankshaft and the fundamental accessories of the engine. Through this belt, the rotational movement is transmitted to the alternator and the seawater pump, which makes this component a critical element both for the electrical load of the system and for engine cooling. A deterioration or breakage of the transmission belt causes the immediate loss of battery charge and, what is more serious, the interruption of the coolant flow, with the consequent risk of severe overheating of the propeller. Being made with high-resistance materials designed for the marine environment, it withstands the vibrations, humidity and thermal variations characteristic of nautical propulsion.

When to replace this part?

The most common signs of wear on a marine drive belt include squealing or whistling when accelerating, visible cracks on the sidewalls or inner side of the belt, worn sidewalls causing slippage on the pulley, and low charge indicators on the alternator even with the engine running. It is recommended to inspect the condition of the belt during each seasonal maintenance and to proceed with its preventive replacement every 500 hours of operation or if there is any sign of hardening, cracking or loss of tension. Replacing the belt preventively is the simplest measure to avoid a cooling or electrical failure at sea, where the consequences of a failure can be very costly.
