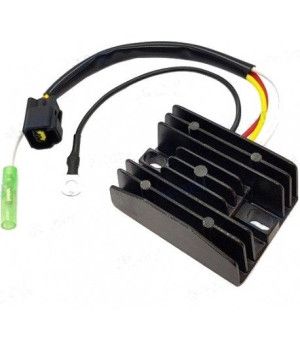

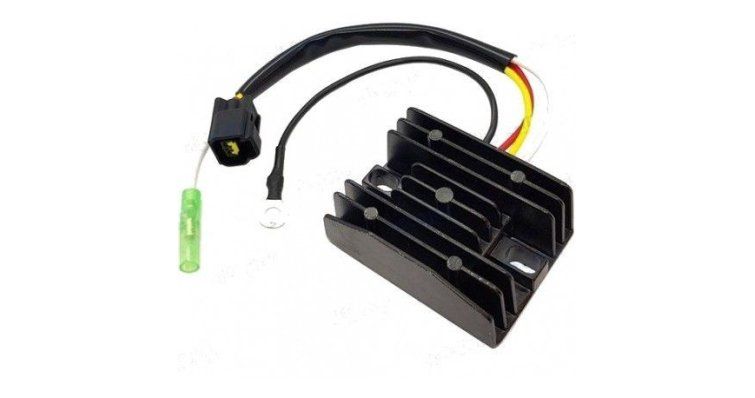

RECTIFIER REGULATOR 32800-89J11

Function and technical context

The rectifier regulator is the component responsible for converting the alternating current (AC) generated by the outboard motor alternator into direct current (DC) usable by the battery and on-board electrical systems, also regulating the voltage to avoid overloads. It works directly in the engine's electrical charging system, acting as a bridge between the alternator stator and the battery. A failure in this component causes poor or no battery charge, unstable voltages that can damage navigation instrumentation and electronics, or even be left without electric starting at sea.

When to replace this part?

The most common symptoms of a failed rectifier regulator are a battery that does not charge or progressively discharges during navigation, instrument lights that flicker or fluctuate, and a voltmeter that shows abnormal readings above or below the correct range. As it is an electronic component without moving parts, it does not have a fixed replacement interval, but it should be checked during each seasonal maintenance or in the event of any anomaly in the electrical system. Replacing it preventively at the first symptoms avoids being left without propulsion or with damaged electronics in risky situations.

Engine Compatibility
