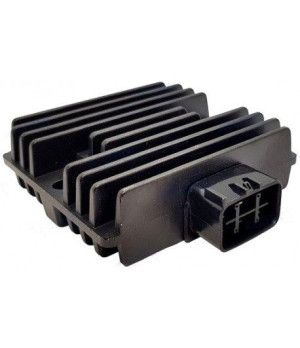

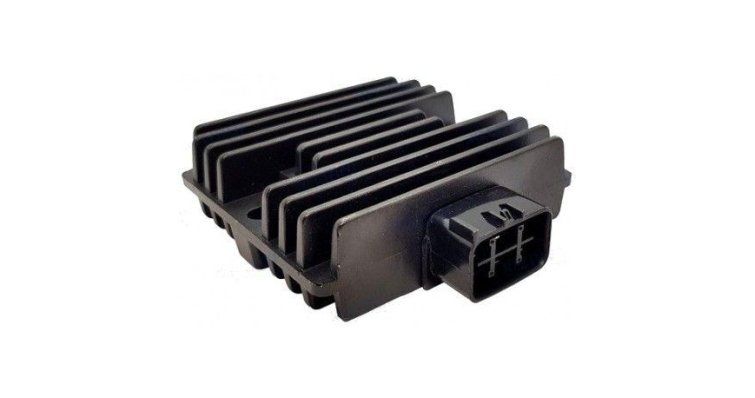

SUZUKI REGULATOR RECTIFIER 32800-87L00

Function and technical context

The rectifier regulator is an essential component of the outboard motor's electrical system: it converts the alternating current (AC) generated by the stator into direct current (DC) and regulates the charging voltage to protect the battery and the boat's electrical consumers. In Suzuki DF series engines, this component works in close coordination with the alternator and the electronic engine management system. A rectifier regulator in poor condition can cause poor or excessive battery charging, failures in on-board electronic systems and even unexpected engine stoppage due to lack of power supply.

When to replace this part?

The most common symptoms of a faulty regulator rectifier include the battery not charging or discharging with the engine running, unstable voltage readings on the instrument panel, navigation lights with varying intensity or electrical fault warning lights coming on. It is recommended to check this component during each seasonal maintenance and measure the load voltage with the engine running; Values ​​outside the expected range are an unequivocal sign of substitution. Replacing it preventively in the event of any symptoms avoids being left without a starter or suffering damage to the battery and navigation electronics at sea.
