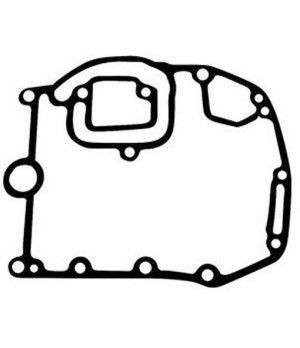

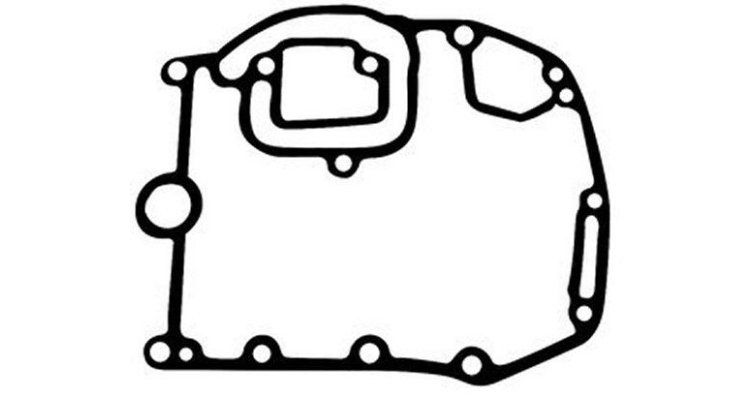

Carter Gasket 11489-90J00

Function and Technical Context

The crankcase gasket is the sealing element that seals the joint between the engine block and the oil pan, ensuring that the lubricant remains within the lubrication circuit without external leakage. It works directly in the lubrication system of the outboard engine, acting as a barrier against internal pressure and vibrations inherent to full-load operation. Poor sealing causes oil loss, drop in lubrication circuit pressure and, consequently, accelerated wear of crankshaft, connecting rods and bearings. This part number is compatible with four-stroke engines of medium and high power from Suzuki and Johnson/Evinrude brands, covering a wide range of blocks from 90 to 140 HP manufactured between 2001 and 2013.

When to Replace This Part?

The most common symptoms of crankcase gasket deterioration are the appearance of oil stains or streaks on the lower part of the block, burnt oil smell during operation and progressive oil level decline with no apparent cause elsewhere in the engine. It is recommended to inspect the condition of this gasket at each seasonal maintenance or whenever the oil pan is removed for oil change or internal inspection. Replacing it preventively at the slightest sign of leakage avoids major failures due to insufficient lubrication, especially during extended cruising far from port.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
