Charge regulator for electrical systems of Johnson and Evinrude V6 60° outboard engines from 90 to 115 HP. Compatible with models BE90, BE115, BJ90, BJ115, E90, E100, E105, E115, J90, J100, J105, J115 and later from 1996.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

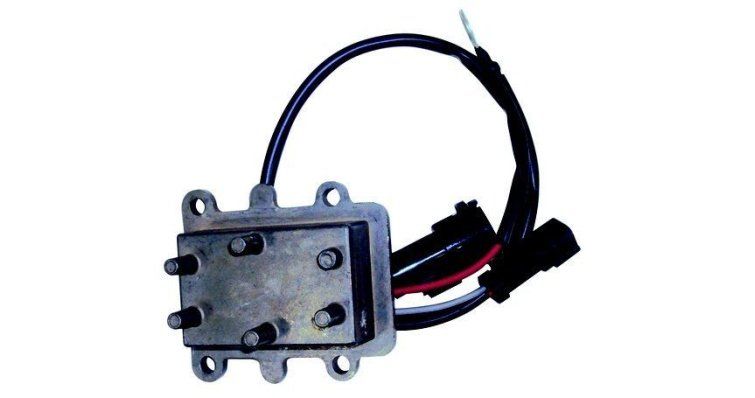

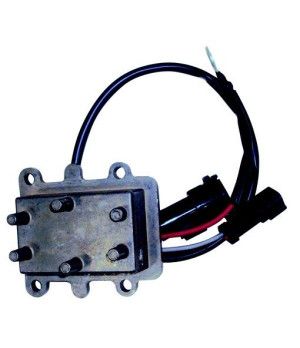

Regulator 586075
REC300-03585
€287.92
Tax included
Charge regulator for electrical systems of Johnson and Evinrude V6 60° outboard engines from 90 to 115 HP. Compatible with models BE90, BE115, BJ90, BJ115, E90, E100, E105, E115, J90, J100, J105, J115 and later from 1996.
Description
Function and Technical Context
The voltage regulator is an essential component within the outboard motor electrical charging system, responsible for controlling and stabilizing the voltage generated by the stator so that the battery receives a proper charge without suffering overvoltage. It acts as a control element between the alternator and the vessel's electrical circuit, ensuring that the current delivered remains within safe limits regardless of engine speed variations. A faulty regulator can cause insufficient battery charging, leaving the vessel unable to start, or conversely an overcharge that irreversibly damages the battery, stator and other electronic components of the system. This regulator ref. 586075 is designed for OMC V6 60º engines of 90 and 115 HP manufactured from 1996 onwards, fitting directly into the installations of Johnson and Evinrude motors of that generation.
When to Replace this Part?
The most common symptoms of a faulty voltage regulator are a battery that does not retain charge after boating, a charging warning light illuminated on the panel, unstable voltage readings on the voltmeter, or in more serious cases, a stator that burns out recurrently from receiving uncontrolled voltage. It is recommended to inspect the regulator at each seasonal maintenance service, especially if the engine has accumulated many hours of use or if intermittent electrical problems have been detected. Replacing the regulator preventatively at the first signs of trouble avoids cascading failures in the charging system, which are usually much more costly to repair away from port.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| BE90 | BE90ELEDR 1996, BE90ELEUA 1997, BE90ELEUC 1997, BE90SLECM 1998, BE90SLEDR 1996, BE90SLEUA 1997, BE90SLEUC 1997, BE90SXECM 1998, BE90SXEUA 1997, BE90SXEUC 1997 |
| BE115 | BE115ELEDR 1996, BE115ELEUA 1997, BE115ELEUC 1997, BE115GLECM 1998, BE115GLEDR 1996, BE115GLEUA 1997, BE115GLEUC 1997, BE115SXECM 1998, BE115SXEDR 1996, BE115SXEUA 1997, BE115SXEUC 1997 |
| BJ90 | BJ90ELEDR 1996, BJ90ELEUA 1997, BJ90ELEUC 1997, BJ90PLEEB 1999, BJ90PLSID elec start, TNT, 20 in shaft, n/a usa 2001, BJ90PLSSE Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, BJ90PXEEB 1999, BJ90PXSSE Elec. Start, TNT, 25 IN. shaft, N/A USA 2000, BJ90SLECM 1998, BJ90SLEDR 1996, BJ90SLEUA 1997, BJ90SLEUC 1997, BJ90SXECM 1998, BJ90SXEUA 1997, BJ90SXEUC 1997, BJ90VLSIC elec start, TNT, 20 in shaft, wht, n/a usa 2001, BJ90VXSIC elec start, TNT, 25 in shaft, wht, n/a usa 2001, BJ90VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000 |
| BJ115 | BJ115ELEDR 1996, BJ115ELEUA 1997, BJ115ELEUC 1997, BJ115GLECM 1998, BJ115GLEDR 1996, BJ115GLEUA 1997, BJ115GLEUC 1997, BJ115PLEEM 1999, BJ115PLSIE elec start, TNT, 20 in shaft, n/a usa 2001, BJ115PLSSB Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, BJ115PXEEM 1999, BJ115PXSSB Elec. Start, TNT, 25 IN. shaft, N/A USA 2000, BJ115SXECM 1998, BJ115SXEDR 1996, BJ115SXEUA 1997, BJ115SXEUC 1997, BJ115VXSIC elec start, TNT, 25 in shaft, wht, n/a usa 2001, BJ115VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000 |
| E90 | E90ELECM 1998, E90ELEDR 1996, E90ELEUA 1997, E90ELEUC 1997, E90SLECM 1998, E90SLEDR 1996, E90SLEUA 1997, E90SLEUC 1997 |
| E100 | E100WPLEEC 1999, E100WPLSIF commercial, elec start, 20 in shaft 2001, E100WPLSSR Commercial, Elec. Start, TNT, 20 IN. shaft 2000, E100WPXEEC 1999, E100WPXSIF commercial, elec start, 25 in shaft 2001, E100WPXSSR Commercial, Elec. Start, TNT, 25 IN. shaft 2000, E100WQLECS 1998, E100WQXECS 1998 |
| E105 | E105WELEEN 1999, E105WELEES 1999, E105WELSIF commercial, elec start, 20 in shaft 2001, E105WELSSC Commercial, Elec. Start, 20 IN. shaft 2000, E105WPLEES 1999, E105WPLSIF commercial, elec start, TNT, 20 in shaft 2001, E105WPLSSC Commercial, Elec. Start, TNT, 20 IN. shaft 2000, E105WPXEES 1999, E105WPXSIF commercial, elec start, TNT, 25 in shaft 2001, E105WPXSSC Commercial, Elec. Start, TNT, 25 IN. shaft 2000 |
| E115 | E115ELECM 1998, E115ELEDR 1996, E115ELEUA 1997, E115ELEUC 1997, E115GLECM 1998, E115GLEDR 1996, E115GLEUA 1997, E115GLEUC 1997, E115JTLECS 1998, E115SLECM 1998, E115SLEDR 1996, E115SLEUA 1997, E115SLEUC 1997, E115SXECM 1998, E115SXEDR 1996, E115SXEUA 1997, E115SXEUC 1997 |
| HE115 | HE115SLECM 1998, HE115SLEDR 1996, HE115SLEUA 1997, HE115SLEUC 1997 |
| HJ115 | HJ115SLECM 1998, HJ115SLEDR 1996, HJ115SLEUA 1997, HJ115SLEUC 1997 |
| J90 | J90ELECM 1998, J90ELEDR 1996, J90ELEUA 1997, J90ELEUC 1997, J90GLSDE, J90GLSOB, J90GLSRM, J90GLSTA, J90PLEEB 1999, J90PLSDM, J90PLSID elec start, TNT, 20 in shaft 2001, J90PLSNF Carbureted, 20 in. shaft, Smoke, Remote, Elec, TNT 2002, J90PLSOA, J90PLSRR, J90PLSSE Elec. Start, TNT, 20 IN. shaft 2000, J90PLSTC, J90PXSDR, J90PXSOC, J90PXSRS, J90SLECM 1998, J90SLEDR 1996, J90SLEUA 1997, J90SLEUC 1997, J90SPLEES 1999, J90SPLSSC Elec. Start, TNT, 20 IN. shaft, wht 2000, J90VLSIC elec start, TNT, 20 in shaft, wht 2001, J90VLSNF Carbureted, 20 in. shaft, White, Remote, Elec, TNT 2002, J90VLSSE Elec. Start, TNT, 20 IN. shaft, wht 2000 |
| J100 | J100WPLEEC 1999, J100WPLSIF commercial, elec start, 20 in shaft 2001, J100WPLSSR Commercial, Elec. Start, TNT, 20 IN. shaft 2000, J100WPXEEC 1999, J100WPXSIF commercial, elec start, TNT, 25 in shaft 2001, J100WPXSSR Commercial, Elec. Start, TNT, 25 IN. shaft 2000, J100WQLECS 1998, J100WQXECS 1998 |
| J105 | J105WELEEN 1999, J105WELEES 1999, J105WELSIF commercial, elec start, 20 in shaft 2001, J105WELSSC Commercial, Elec. Start, 20 IN. shaft 2000, J105WPLEEN 1999, J105WPLEES 1999, J105WPLSIF commercial, elec start, TNT, 20 in shaft 2001, J105WPLSSC Commercial, Elec. Start, TNT, 20 IN. shaft 2000, J105WPLSTM, J105WPXEEN 1999, J105WPXEES 1999, J105WPXSIF commercial, elec start, TNT, 25 in shaft 2001, J105WPXSSC Commercial, Elec. Start, TNT, 25 IN. shaft 2000 |
| J115 | J115ELECM 1998, J115ELEDR 1996, J115ELEUA 1997, J115ELEUC 1997, J115GLECM 1998, J115GLEDR 1996, J115GLEUA 1997, J115GLEUC 1997, J115GLSDE, J115GLSOB, J115GLSRC, J115GLSTA, J115JPLEEC 1999, J115JPLSIA jet drive, elec start, TNT, 20 in shaft 2001, J115JPLSSR Jet Drive, Elec. Start,TNT, 20 IN. shaft 2000, J115JTLECS 1998, J115PLEEM 1999, J115PLSDA, J115PLSIE elec start, TNT, 20 in shaft 2001, J115PLSNF Carbureted, 20 in. shaft, Smoke, Remote, Elec, TNT 2002, J115PLSOR, J115PLSRC, J115PLSSB Elec. Start, TNT, 20 IN. shaft 2000, J115PLSTS, J115PXEEM 1999, J115PXSDA, J115PXSNF Carbureted, 25 in. shaft, White, Remote, Elec, TNT, 2002, J115PXSOR, J115PXSRM, J115PXSSB Elec. Start, TNT, 25 IN. shaft 2000, J115PXSTS, J115SLECM 1998, J115SLEDR 1996, J115SLEUA 1997, J115SLEUC 1997, J115SPLEES 1999, J115SPLSSC Elec. Start, TNT, 20 IN. shaft, wht, N/A USA 2000, J115SXECM 1998, J115SXEDR 1996, J115SXEUA 1997, J115SXEUC 1997, J115VLSIC elec start, TNT, 20 in shaft, wht 2001, J115VLSNF Carbureted, 20 in. shaft, White, Remote, Elec, TNT 2002, J115VLSSS Elec. Start, 20 IN. shaft, wht 2000, J115VXSIC elec start, TNT, 25 in shaft, wht 2001, J115VXSSS Elec. Start, TNT, 25 IN. shaft, wht, 2000, J115WPLSOC, J115WPLSRS |
| L90 | L90GLECS 1998 |
| L115 | L115GLECA 1998, L115GLEDC 1996, L115GLEUC 1997, L115GLEUR 1997 |
| RJ90 | RJ90PLSID elec start, TNT, 20 in shaft 2001, RJ90PLSSE Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, RJ90VLSIC elec start, TNT, 20 in shaft, wht 2001, RJ90VLSSS Elec. Start, 20 IN. shaft, wht, N/A USA 2000 |
| RJ115 | RJ115PLSIE elec start, TNT, 20 in shaft 2001, RJ115PLSSB Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, RJ115PXSSB Elec. Start, TNT, 25 IN. shaft, N/A USA 2000, RJ115VLSIC elec start, TNT, 20 in shaft, wht 2001, RJ115VLSSB Elec. Start, 20 IN. shaft, wht, N/A USA 2000, RJ115VXSIC elec start, TNT, 25 in shaft, wht 2001, RJ115VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000 |
| SE105 | SE105WELV 1998, SE105WEXV 1998, SE105WRPLV 1998, SE105WRPXV 1998 |
| SJ90 | SJ90ELEDR 1996 |
| SJ105 | SJ105WELV 1998, SJ105WEXV 1998, SJ105WRPLV 1998, SJ105WRPXV 1998 |
| SJ115 | SJ115ELEDR 1996 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0586075, 586075 |
