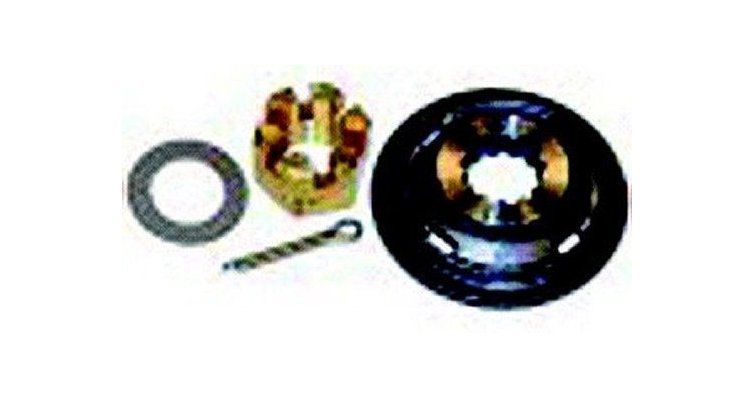

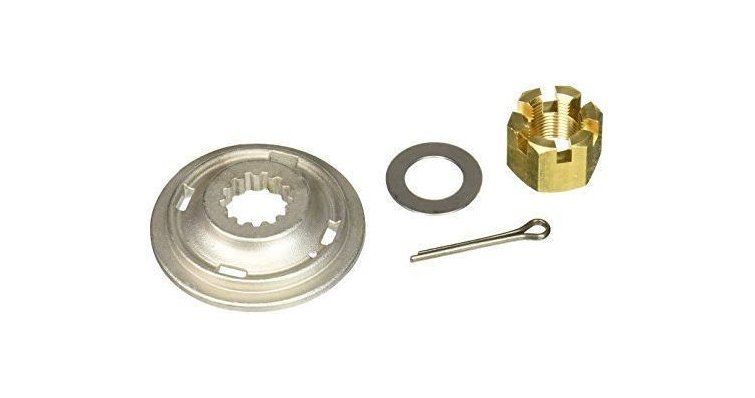

Propeller Closure Kit 57630-94550 57630-94500

Function and Technical Context

The propeller closure kit acts in the coupling zone between the propeller hub and the propulsion shaft, being the element responsible for ensuring a hermetic and secure fit that prevents free rotation or slippage of the propeller under load. It forms part of the power transmission system of the propulsion unit, working at the end of the tail shaft where traction efforts, torsional stress, and axial loads generated during navigation are concentrated. The integrity of this assembly is decisive for propulsive efficiency: if the closure components lose their retention capacity, play develops between the hub and shaft, resulting in direct loss of thrust, appearance of structural vibrations, and in the worst case, propeller detachment during navigation. This kit is applicable to both Suzuki outboard motors of the DF and DT series and Johnson and Evinrude units in the 60 to 70 HP range, covering a wide base of recreational and professional vessels.

When to Replace This Part?

The clearest indicators of deterioration of the propeller closure assembly are: propeller with perceptible play when displaced axially on the shaft, anomalous vibration at different engine speeds, loss of propulsive performance with no apparent cause in the engine, or metallic noise coming from the shaft end during operation. It is recommended to inspect the condition of this assembly at each haul-out or seasonal service, and proceed with replacement whenever the propeller is removed for anode maintenance, stuffing box inspection, or any intervention on the propulsion shaft. Replacing this kit preventively represents minimal expense compared to the cost of repairing shaft damage or recovering a detached propeller at sea.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
