MAP SENSOR 8M0087834

REC8M0087834
€61.88
Tax included
Measures intake manifold absolute pressure on Volvo Penta 4.3GXI, 5.0GXI, 5.7GXI and MerCruiser 4.3L, 5.0L, 5.7L and 6.2L MPI engines. The MAP sensor transmits the signal to the ECU to adjust the air-fuel mixture and ignition timing in real time.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Thursday 13 August and Friday 14 August with UPS/DHL/TNT North America

Description

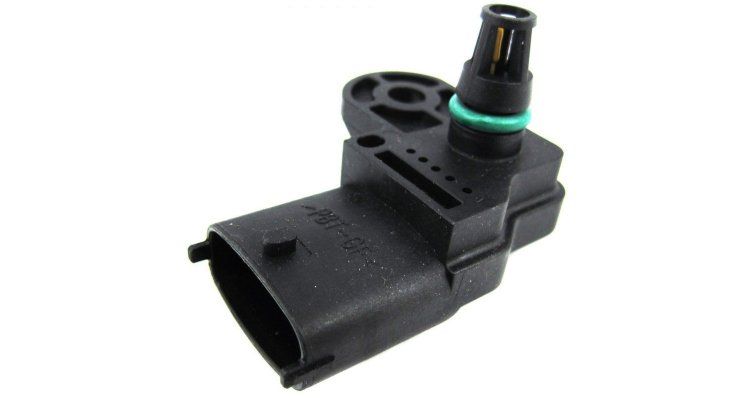

The 8M0087834 MAP (Manifold Absolute Pressure) Sensor is a critical component of the electronic engine management system that measures the absolute pressure in the intake manifold. This information allows the control unit to optimize the air-fuel mixture and ignition timing in real time according to operating conditions, guaranteeing maximum performance, fuel efficiency and idle stability in Volvo Penta and MerCruiser brand petrol engines.

Accuracy in reading the intake pressure is essential to maintain acceleration response and optimized consumption. Replacement with a quality-proven component is essential when faults or erratic readings are detected in this sensor.



Compatible Volvo Engines

SeriesModels
4.3OSI Series4.3OSI-B, 4.3OSI-BF, 4.3OSI-C, 4.3OSI-CF, 4.3OSI-D, 4.3OSI-DF, 4.3OSI-E, 4.3OSI-EF, 4.3OSI-F, 4.3OSI-FF, 4.3OSI-G, 4.3OSI-GF, 4.3OSI-J, 4.3OSI-JF
4.3GI Series4.3GI-200-R
4.3GXI Series4.3GXI-225-R, 4.3GXI-B, 4.3GXI-BF, 4.3GXI-C, 4.3GXI-CF, 4.3GXI-D, 4.3GXI-DF, 4.3GXI-E, 4.3GXI-EF, 4.3GXI-F, 4.3GXI-FF, 4.3GXI-G, 4.3GXI-GF, 4.3GXI-J, 4.3GXI-JF, 4.3GXI-P, 4.3GXI-Q
4.3GXIE Series4.3GXIE-225-R, 4.3GXIE-M, 4.3GXIE-P, 4.3GXIE-Q
5.0OSI Series5.0OSI-B, 5.0OSI-BF, 5.0OSI-C, 5.0OSI-CF, 5.0OSI-D, 5.0OSI-DF, 5.0OSI-E, 5.0OSI-EF, 5.0OSI-F, 5.0OSI-FF, 5.0OSI-G, 5.0OSI-GF, 5.0OSI-J, 5.0OSI-JF
5.0GXI Series5.0GXI-270-R, 5.0GXI-B, 5.0GXI-BF, 5.0GXI-C, 5.0GXI-CF, 5.0GXI-D, 5.0GXI-DF, 5.0GXI-E, 5.0GXI-EF, 5.0GXI-F, 5.0GXI-FF, 5.0GXI-G, 5.0GXI-GF, 5.0GXI-J, 5.0GXI-JF, 5.0GXI-N, 5.0GXI-P
5.0OSIE Series5.0OSIE-J, 5.0OSIE-JF
5.0GIC Series5.0GIC-225-S, 5.0GIC-J
5.0GICE Series5.0GICE-225-S
5.0GXIC Series5.0GXIC-270-R, 5.0GXIC-J, 5.0GXIC-JF, 5.0GXIC-P, 5.0GXICE-270-R, 5.0GXICE-J, 5.0GXICE-JF, 5.0GXICE-M, 5.0GXICE-MF, 5.0GXICE-P
5.0GXIE Series5.0GXIE-270-R, 5.0GXIE-J, 5.0GXIE-JF, 5.0GXIE-K, 5.0GXIE-KF, 5.0GXIE-M, 5.0GXIE-MF, 5.0GXIE-N, 5.0GXIE-P
5.7GXI Series5.7GXI-320-R, 5.7GXI-C, 5.7GXI-CF, 5.7GXI-D, 5.7GXI-DF, 5.7GXI-E, 5.7GXI-EF, 5.7GXI-F, 5.7GXI-FF, 5.7GXI-G, 5.7GXI-GF, 5.7GXI-H, 5.7GXI-HF, 5.7GXI-J, 5.7GXI-JF, 5.7GXI-N, 5.7GXI-P
5.7OSXI Series5.7OSXI-A, 5.7OSXI-AF, 5.7OSXI-B, 5.7OSXI-BF, 5.7OSXI-C, 5.7OSXI-CF, 5.7OSXI-D, 5.7OSXI-DF, 5.7OSXI-E, 5.7OSXI-EF, 5.7OSXI-G, 5.7OSXI-GF, 5.7OSXI-J, 5.7OSXI-JF, 5.7OSXIE-J, 5.7OSXIE-JF
5.7GXII Series5.7GXII-C, 5.7GXII-D, 5.7GXII-E, 5.7GXII-F, 5.7GXII-G, 5.7GXII-H
5.7OSI Series5.7OSI-300-J, 5.7OSI-300-JF, 5.7OSI-A, 5.7OSI-AF, 5.7OSI-B, 5.7OSI-BF, 5.7OSI-C, 5.7OSI-CF, 5.7OSI-D, 5.7OSI-DF, 5.7OSI-E, 5.7OSI-EF, 5.7OSI-G, 5.7OSI-GF
5.7GI Series5.7GI-300-J, 5.7GI-300-JF, 5.7GI-300-N, 5.7GI-300-P, 5.7GI-300-R, 5.7GI-B, 5.7GI-BF, 5.7GI-C, 5.7GI-CF, 5.7GI-D, 5.7GI-DF, 5.7GI-E, 5.7GI-EF, 5.7GI-F, 5.7GI-FF, 5.7GI-G, 5.7GI-GF
5.7GII Series5.7GII-B, 5.7GII-C, 5.7GII-D, 5.7GII-E, 5.7GII-F, 5.7GII-G
5.7GXIE Series5.7GXIE-320-R, 5.7GXIE-J, 5.7GXIE-JF, 5.7GXIE-K, 5.7GXIE-KF, 5.7GXIE-M, 5.7GXIE-MF, 5.7GXIE-N, 5.7GXIE-P
5.7GXIC Series5.7GXIC-320-R, 5.7GXIC-J, 5.7GXIC-JF, 5.7GXIC-P, 5.7GXICE-320-R, 5.7GXICE-J, 5.7GXICE-JF, 5.7GXICE-M, 5.7GXICE-P
5.7OSIE Series5.7OSIE-300-J, 5.7OSIE-300-JF
5.7GIE Series5.7GIE-300-J, 5.7GIE-300-JF, 5.7GIE-300-K, 5.7GIE-300-KF, 5.7GIE-300-M, 5.7GIE-300-N, 5.7GIE-300-P, 5.7GIE-300-R
5.7GICE Series5.7GICE-300-J, 5.7GICE-300-JF, 5.7GICE-300-M, 5.7GICE-300-MF, 5.7GICE-300-P, 5.7GICE-300-R
5.7GIC Series5.7GIC-300-J, 5.7GIC-300-JF, 5.7GIC-300-P, 5.7GIC-300-R
V SeriesV6-200-A, V6-225-A, V6-225-E-A, V8-225-C-A, V8-225-C-B, V8-225-CE-A, V8-225-CE-B, V8-270-A, V8-270-B, V8-270-C-A, V8-270-C-B, V8-270-CE-A, V8-270-CE-B, V8-270-E-A, V8-270-E-B, V8-300-A, V8-300-B, V8-300-C-A, V8-300-C-B, V8-300-CE-A, V8-300-CE-B, V8-300-E-A, V8-300-E-B, V8-320-A, V8-320-B, V8-320-C-A, V8-320-C-B, V8-320-CE-A, V8-320-CE-B, V8-320-E-A, V8-320-E-B



Compatible MerCruiser Engines

MarcaModeloRango de serie
MerCruiser4.3L MPI ALPHA/BRAVO0M300000 THRU 0M614999 / 0W658584 THRU 1A030367 / 1A030370 THRU 1A063239 / 1A030368 THRU 1A030369 / 1A063240 & Up / 0W310000 THRU 0W649999 / 0W650000 THRU 0W658582 / 0W658583 THRU 0W658583 / 0M615000 THRU 0W309999
MerCruiser4.3L MPI ALPHA/BRAVO EC1A637496 & Up
MerCruiser4.5L MPI 200 Alpha/Bravo2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 200 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiserQS 4.5L Alpha/Bravo 250 FWC - - Cat.# 90-8M0245467—
MerCruiser5.0L MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser5.0L MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser5.7L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE EC1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI SKI1A090000 & Up
MerCruiser5.7L MPI TOW1G400000 THRU 1G499999
MerCruiser5.7L MPI TOWSPORT WITH GEN III1A091881 & Up
MerCruiser5.7L SKI EC1A090000 & Up
MerCruiser6.2L MPI 3002A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 300 EC2A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 3502A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 350 EC2A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI EC JET 3702A674166 & Up
MerCruiser6.2L MPI EC TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI EC TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI JET 3702A674166 & Up
MerCruiser6.2L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC1A091600 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE EC 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiserMX 6.2L MPI BRAVO0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON BRAVO0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON MIE0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI MIE0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI SKI0M317000 THRU 0W689999
MerCruiserQS 6.2L Bravo 300 RWC/350 FWC - - Cat.# 90-8M0240864—
MerCruiser350 HORIZON BOBTAIL1G700000 THRU 1G799999
MerCruiser350 MAG MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON MIE0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI MIE0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI SKI0M300000 THRU 0M316999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0W689999
MerCruiser350 MPI ALPHA1G400000 THRU 1G499999
MerCruiser350 MPI Alpha/Bravo1G700000 THRU 1G799999
MerCruiser350 MPI BRAVO1G400000 THRU 1G499999
MerCruiser350 MPI Crate1G400000 THRU 1G499999
MerCruiser357 HRZ BOBTAIL RM1G300000 THRU 1G399999
MerCruiser377 MAG MPI BRAVO1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser377 MAG MPI BRAVO EC1A343300 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser383 MAG STROKER BRAVO1G400000 THRU 1G499999
MerCruiser383 MAG STROKER INBOARD1G300000 THRU 1G399999
MerCruiser383 MPI FWC Bravo1G700000 THRU 1G799999
MerCruiser385 Performance Tuned1G400000 THRU 1G499999



Equivalent manufacturer part numbers

Manufacturer/BrandReference/Part Number
Mercury/MerCruiser885165, 8M0087834, 8M6002029
Volvo3858987, 3859020
