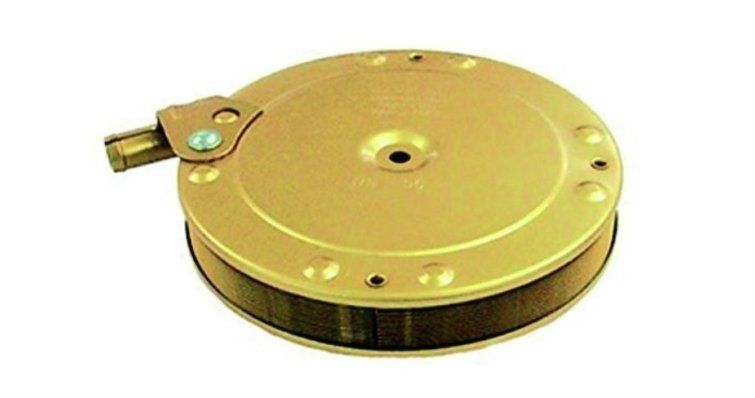

FLAME ARRESTER 44196T
REC85784A1
€205.46
Tax included
For MerCruiser 2.5L to 5.7L petrol engines, from 120 hp to 470 hp. Safety component that stops the spread of flames from the carburetor to the fuel tank in the event of recoil, acting as a thermal barrier in intake systems.
Description
The 44196T flame arrester is a critical safety component in MerCruiser marine engine fuel systems. Its function is to prevent the spread of flames from the carburetor to the fuel tank in the event of recoil or explosion in the intake, acting as a physical and thermal barrier that dissipates combustion energy.
This spare part is compatible with multiple MerCruiser references, guaranteeing the operational continuity of boats equipped with injection or carburetion systems of this brand. Cross compatibility between references (44196T, 44196T1, 74000T, 805016A1, 85784A1, 863200) allows flexibility in the selection of the spare part according to inventory availability and year of manufacture of the engine.
Compatible engines
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | 2.5L GM 153 I/L4 | 0B531854 THRU 0C856558 |
| MerCruiser | 3.0L GM 181 I/L4 | 0L097000 THRU 0W301999 / 0L010042 THRU 0L096999 / 0C856559 THRU 0F353099 / 0B450801 THRU 0C856558 / 0W302000 THRU 1A0019999 / 1A002000 THRU 1A020543 / 1A020544 & Up |
| MerCruiser | 3.0L Crate Engine | 1G800000 THRU 1G899999 |
| MerCruiser | 3.0L TKS Plus | 1G404114 THRU 1G414332 / 1G700000 THRU 1G799999 |
| MerCruiser | 3.0LX GM 181 I/L4 | 0F604000 THRU 0K999999 / 0C856559 THRU 0F603999 |
| MerCruiser | 3.7L (2 BBL.) | 0B774252 & Up |
| MerCruiser | 3.7LX (4 BBL.) | 0B775249 & Up |
| MerCruiser | 4.3L (2 BBL.) GM 262 V-6 | 0B773243 THRU 0D714106 |
| MerCruiser | 4.3L (GEN +) (2 BBL.) GM 262 V-6 | 0L010044 THRU 0M614999 |
| MerCruiser | 4.3L (GEN II) (2 BBL.) GM 262 V-6 | 0F000878 THRU 0F601126 / 0F601127 THRU 0F802999 / 0D714107 THRU 0F000877 |
| MerCruiser | 4.3L CARB ALPHA/BRAVO | 0W300013 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A063239 / 1A063240 & Up / 0M615000 THRU 0W300012 |
| MerCruiser | 4.3LH (GEN +) (4 BBL.) GM 262 V-6 | 0L010044 THRU 0M614999 |
| MerCruiser | 4.3LX (4 BBL.) GM 262 V-6 | 0B775130 THRU 0D714369 |
| MerCruiser | 4.3LX (GEN II) (4 BBL.) GM 262 V-6 | 0F001220 THRU 0F601126 / 0F601127 THRU 0F802999 / 0D714370 THRU 0F001219 |
| MerCruiser | 4.3LX (GEN +) (2 BBL.) GM 262 V-6 | 0F803000 THRU 0K999999 |
| MerCruiser | 4.3LXH (GEN +) (4 BBL.) GM 262 V-6 | 0F803114 THRU 0K999999 |
| MerCruiser | 5.0L (2 BBL.) GM 305 V-8 | 0B774445 THRU 0F600999 / 0L015751 THRU 0M599999 |
| MerCruiser | 5.0L CARB ALPHA/BRAVO | 0W650000 & Up / 0W300010 THRU 0W309999 / 0M600000 THRU 0W300009 / 0W310000 THRU 0W649999 |
| MerCruiser | 5.0LX (4 BBL.) GM 305 V-8 | 0B773740 THRU 0F600999 |
| MerCruiser | 5.7L GM 350 V-8 | 0B525982 THRU 0F600999 |
| MerCruiser | 5.7L (2 BBL.) GM 350 V-8 | 0K001527 THRU 0K999999 / 0F601000 THRU 0K001526 / 0L010037 THRU 0M599999 |
| MerCruiser | 5.7L CARB ALPHA/BRAVO | 0W300755 THRU 0W309999 / 0W650000 & Up / 0M600000 THRU 0W300754 / 0W310000 THRU 0W649999 |
| MerCruiser | 5.7L CARB MIE | 0L002003 THRU OM316999 / 0W090900 THRU 0W689999 / 0W690000 & Up / 0M317000 THRU 0W090899 |
| MerCruiser | 5.7L CARB SKI | 0W090900 THRU 0W689999 / 0W694844 & Up / 0M317000 THRU 0W090899 |
| MerCruiser | 5.7L COMPETITION SKI GM 350 V-8 | 0F775200 THRU 0K040003 / 0K040004 THRU 0K999999 |
| MerCruiser | 5.7L COMPETITION SKI (GEN+) GM 350 V-8 | 0L002005 THRU 0M316999 |
| MerCruiser | 5.7LX (4 BBL) GM 350 V-8 | 0K001527 THRU 0K999999 / 0F601000 THRU 0K001526 |
| MerCruiser | 120 GM 153 I/L4 | 6229718 THRU 0B531853 |
| MerCruiser | 140 GM 181 I/L4 | 6229718 THRU 0B450800 |
| MerCruiser | 165 (2 BBL.) | 0B434941 THRU 0B774251 |
| MerCruiser | 170 (2 BBL.) | 6916779 THRU 0B434940 |
| MerCruiser | 175 (2 BBL.) GM 262 V-6 | 0B527955 THRU 0B773242 |
| MerCruiser | 180 (4 BBL.) | 0B436391 THRU 0B775248 |
| MerCruiser | 190 (4 BBL.) | 6916779 THRU 0B436390 |
| MerCruiser | 200 (2 BBL.) GM 305 V-8 | 0B525982 THRU 0B774444 |
| MerCruiser | 205 (4 BBL.) GM 262 V-6 | 0B527955 THRU 0B775129 |
| MerCruiser | 230 (4 BBL.) GM 305 V-8 | 0B525982 THRU 0B773739 |
| MerCruiser | 260 (4 BBL.) GM 350 V-8 | 0B525982 THRU 0B773739 |
| MerCruiser | 350 MAG. ALPHA (4 BBL.) GM 350 V-8 | 0K001527 THRU 0K999999 / 0F601000 THRU 0K001526 / 0B525982 THRU 0F600999 |
| MerCruiser | 470 (2 BBL.) | 6218037 THRU 6916778 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| MerCruiser | 85784A1, 44196T, 44196T1, 74000T, 805016A1 ✓ (actual), 863200 |
