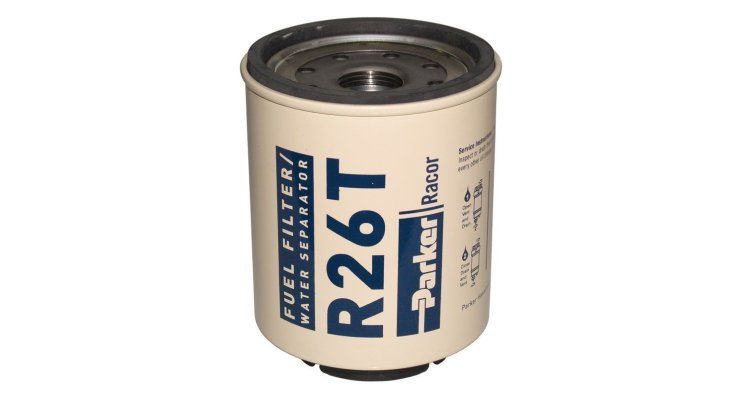

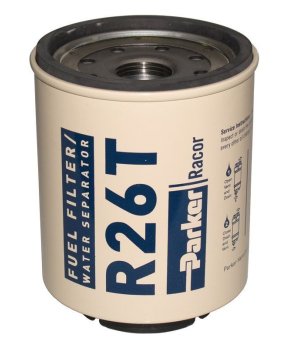

FITTING ELEMENT 225 10 MICRON

Function and technical context

The Racor 225 10 micron filter element acts as a protective barrier within the fuel supply system of marine engines, retaining solid particles, dirt and contaminants down to 10 microns before they reach the fuel pump and injectors. It works integrated into the Racor 225 series filter-separator, a common set in pleasure boats and work boats with diesel or petrol engines that require rigorous fuel filtration. Contamination of marine fuel—especially in fiberglass tanks or in fuel with the presence of water and microorganisms—is one of the main causes of failure in injectors and high-pressure pumps; A filter element in correct condition is the first line of defense against these failures. If the cartridge is clogged or damaged, the flow restriction causes pressure drops that translate into loss of power, difficulty starting and even stopping the engine while sailing.

When to replace this part?

The most common symptoms of a exhausted Racor element are: engine that progressively loses speed under load, difficult starts when cold, idle fluctuations or low fuel pressure alarms. For fuel filters in marine engines, it is recommended to replace the filter cartridge every 200-300 hours of operation or, at least, once a season before start-up, regardless of the accumulated hours. Changing the Racor element preventively is one of the most economical and effective maintenance interventions to avoid serious breakdowns in the injection system during navigation.

Equivalent manufacturer part numbers
