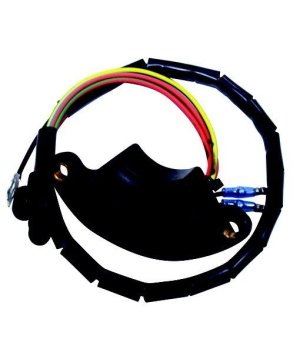

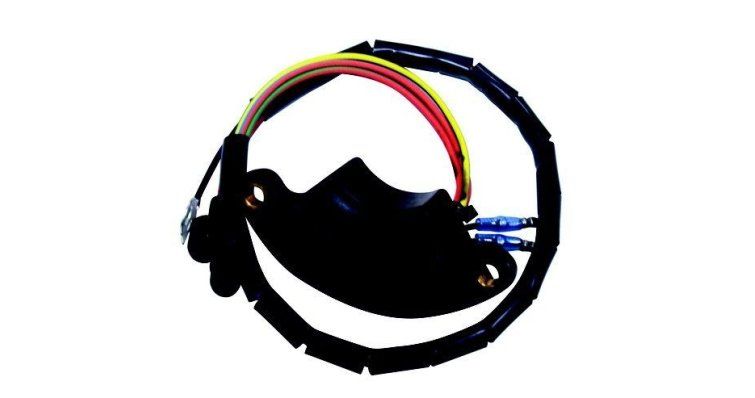

Black Box 583663 300-26084

Function and Technical Context

This ignition module—also referred to as a black box or ignition control unit—is the electronic component responsible for generating and controlling spark signals in two-stroke outboard motors. It operates within the CDI (Capacitor Discharge Ignition) system, acting as the circuit's brain: it receives the signal from the magnetic flywheel, processes the exact firing moment, and sends the high-voltage pulse to the coil so that the spark plugs produce combustion. If this module fails, the motor may experience impossible starting, ignition cutouts at high RPM, or total spark loss, leaving the vessel without propulsion. Its correct operation is critical for engine reliability during navigation, especially in Johnson and Evinrude units in the low and medium power range of the years when this reference was manufactured.

When to Replace This Part?

The most common symptoms of a faulty ignition module are: the motor starts cold but stops when it reaches temperature, intermittent spark failures in one or multiple cylinders, harsh jerking at mid or high load, or total ignition failure with no apparent cause in the fuel system. Unlike mechanical components, the ignition control unit does not have a fixed replacement interval by hours, but should be inspected at any sign of irregular ignition and replaced immediately if its failure is confirmed through multimeter testing or spark tester verification. Replacing this module preventatively at the first signs of trouble avoids being stranded offshore with an electrical failure that is difficult to diagnose aboard.

Compatible Johnson/Evinrude Motors

Equivalent Manufacturer References
