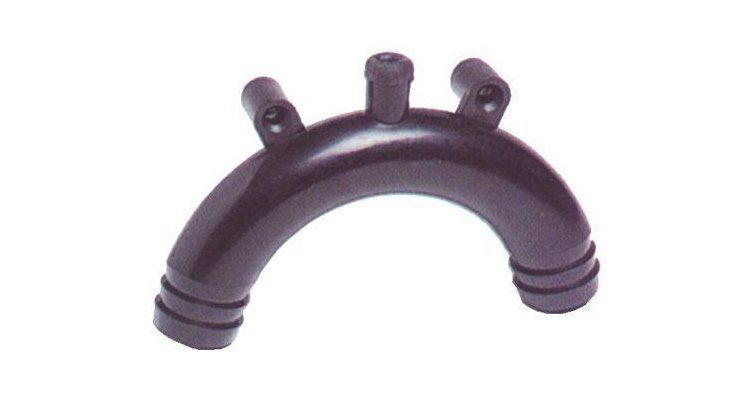

Vented Loop Plastic 25 mm 1"

Function and technical context

The anti-siphon valve, also known as vented loop or sifone, is an essential safety component in nautical installations of marine toilets and bilge or bilge pumps located below the waterline. Its mission is to break the siphon effect that, if not interrupted, would allow sea water to enter the boat through the discharge hoses when the pump stops. It works in the gray and black water sanitation and management system, as well as in any pumping circuit with an intake below the waterline. Made of heavy-duty nylon with a black finish, this 25 mm (1 inch) unit is designed to withstand the permanent humidity, salinity and mechanical stresses of the marine environment. Without an anti-siphon valve in perfect condition, the risk of progressive flooding of the bilge – or even the engine compartment – ​​is real and can compromise the safety of the boat.

When to replace this part?

The most common symptoms of failure in an anti-siphon valve are: persistent dripping from the vent valve (indicates that the internal membrane has lost its tightness), the smell of sewage inside the boat due to gas leaks, or the appearance of water in the bilge without apparent cause when the toilet pump is stopped. It is recommended to visually inspect the valve during each seasonal maintenance - at least once a year - and replace the inner membrane or the entire assembly if cracks, hardening of the material or lime deposits are observed that prevent correct closure. Preventively replacing this low-cost part avoids major breakdowns and, above all, risky situations while navigating.

Compatibility table
