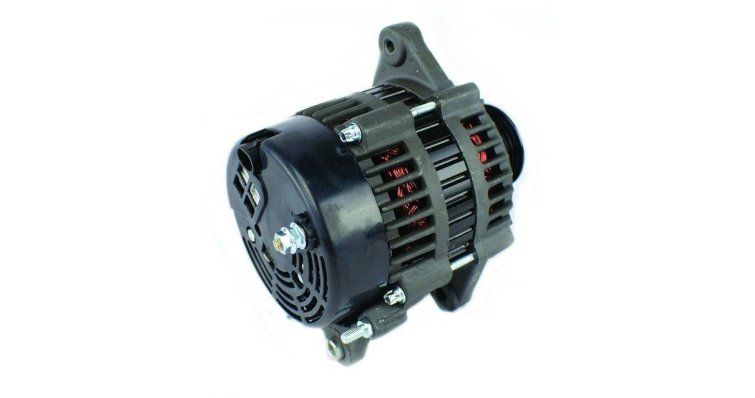

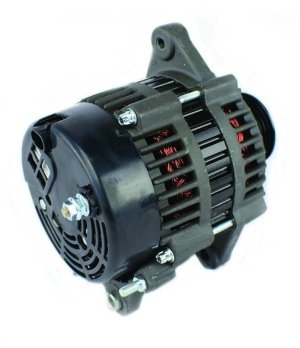

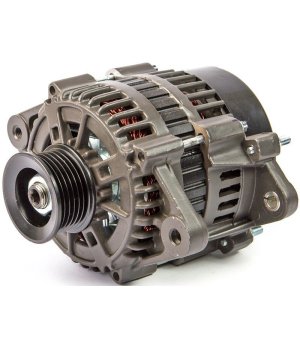

ALTERNATOR 863077T 12V 70A

REC863077T
€189.40
Tax included
rating Read the review
Average rating: 5/5 Number of reviews: 1
For 1995 to present MerCruiser 4.3L, 5.0L, 5.7L, 6.2L and 8.1L engines. Provides 70 amps at 12 volts to keep the battery charged and power electrical systems during operation. Internal regulator and 6-channel serpentine pulley, 50 mm diameter.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Order it before 2 hours y 13 minutes and receive it between Thursday 10 September and Friday 11 September with UPS/DHL/TNT North America

Description

The 863077T alternator is a critical charging system component for Mercruiser medium and high displacement engines. With a nominal power of 70 amps and voltage of 12 volts, it provides the energy necessary to keep the battery charged and power the on-board electrical systems during engine operation. It incorporates an internal voltage regulator and a 6-channel serpentine pulley with a diameter of 50 mm, designed for direct compatibility with 4.3L, 6.2L and 5.7L engine blocks manufactured after 1995.

This alternator replaces part numbers ARC20815 and PH300-0035, and is compatible with multiple Mercruiser serial numbers including 863077R01, 863077T, 86307AR01, 889463R01, 889463R1 and 8M0095472.



Engine Compatibility

Mercury/MerCruiser

MarcaModeloRango de serie
MerCruiser4.3L (GEN +) (2 BBL.) GM 262 V-60L010044 THRU 0M614999
MerCruiser4.3L (GEN +) (4BBL) Reman1G400000 THRU 1G416776
MerCruiser4.3L Alpha 4V EST1G417302 THRU 1G499999
MerCruiser4.3L CARB ALPHA/BRAVO0W300013 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A063239 / 1A063240 & Up / 0M615000 THRU 0W300012
MerCruiser4.3L MPI ALPHA/BRAVO0M300000 THRU 0M614999 / 0W658584 THRU 1A030367 / 1A030370 THRU 1A063239 / 1A030368 THRU 1A030369 / 1A063240 & Up / 0W650000 THRU 0W658582 / 0W658583 THRU 0W658583 / 0M615000 THRU 0W309999 / 0W310000 THRU 0W649999
MerCruiser4.3L MPI ALPHA/BRAVO EC1A637496 & Up
MerCruiser4.3LH (GEN +) (4 BBL.) GM 262 V-60L010044 THRU 0M614999
MerCruiser4.5L MPI 200 Alpha/Bravo2A530778 & Up / 2A441953 THRU 2A530777
MerCruiser4.5L MPI 200 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser4.5L MPI 250 Alpha/Bravo EC2A441953 THRU 2A530777 / 2A530778 & Up
MerCruiser5.0L (2 BBL.) GM 305 V-80L015751 THRU 0M599999
MerCruiser5.0L CARB ALPHA/BRAVO0W300010 THRU 0W309999 / 0W650000 & Up / 0M600000 THRU 0W300009 / 0W310000 THRU 0W649999
MerCruiser5.0L MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser5.0L MPI ALPHA/BRAVO EC1A623185 & Up / 1A300000 THRU 1A611927 / 1A611928 THRU 1A623184
MerCruiser5.7L (2 BBL.) GM 350 V-80L010037 THRU 0M599999
MerCruiser5.7L CARB ALPHA/BRAVO0W300755 THRU 0W309999 / 0W650000 & Up / 0M600000 THRU 0W300754 / 0W310000 THRU 0W649999
MerCruiser5.7L CARB MIE0L002003 THRU OM316999 / 0W090900 THRU 0W689999 / 0M317000 THRU 0W090899 / 0W690000 & Up
MerCruiser5.7L CARB SKI0W090900 THRU 0W689999 / 0M317000 THRU 0W090899 / 0W694844 & Up
MerCruiser5.7L COMPETITION SKI (GEN+) GM 350 V-80L002005 THRU 0M316999
MerCruiser5.7L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE EC1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI SKI1A090000 & Up
MerCruiser5.7L MPI TOW1G400000 THRU 1G499999
MerCruiser5.7L MPI TOWSPORT WITH GEN III1A091881 & Up
MerCruiser5.7L SKI EC1A090000 & Up
MerCruiser6.2L BLACK SCORPION SKI (GEN+) V-80L670015 THRU 0M391599
MerCruiser6.2L MPI 3002A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 300 EC2A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 3502A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI 350 EC2A456613 THRU 2A530775 / 2A530776 & Up
MerCruiser6.2L MPI EC JET 3702A674166 & Up
MerCruiser6.2L MPI EC TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI EC TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI JET 3702A674166 & Up
MerCruiser6.2L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC1A091600 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE EC 3002A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI MIE EC 3502A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3202A456613 THRU 2A530773 / 2A530774 & Up
MerCruiser6.2L MPI TOW 3702A456613 THRU 2A530773 / 2A530774 & Up
MerCruiserBLACK SCORPION MX 6.2L MPI0M391750 THRU 0W689999 / 0W690000 THRU 0W698432
MerCruiserMX 6.2L MPI BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON MIE0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI MIE0L302200 THRU 0M299999 / 0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI SKI0M317000 THRU 0W689999
MerCruiserQS 6.2L Bravo 300 RWC/350 FWC - - Cat.# 90-8M0240864—
MerCruiser8.1L INBOARD1G300000 THRU 1G300884
MerCruiser8.1L INBOARD (Base)0M319125 THRU 0W089999 / 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319124 / 0W690000 THRU 0W698172
MerCruiser8.1L INBOARD (Base) EC0W697154 THRU 1A380251
MerCruiser8.1L INBOARD (H.O.)0M319191 THRU 0W089999 / 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 0W698172 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319190
MerCruiser8.1L INBOARD (H.O.) EC0W697154 THRU 1A380251
MerCruiser8.1L Quicksilver Engine1G700000 THRU 1G701415
MerCruiser8.1L TOWSPORT (Base)1A380074 & Up
MerCruiser8.2L INBOARD (Base) EC1A350802 THRU 2A041664 / 2A041665 & Up
MerCruiser8.2L INBOARD (H.O.) EC1A350802 THRU 2A041664 / 2A041665 & Up
MerCruiser8.2L Mag (Base Model)1A351597 & Up
MerCruiser8.2L Mag (H.O. Model)1A351597 & Up
MerCruiser8.2L Mag EC (Base Model)2A051742 THRU 2A051742 / 1A350340 THRU 2A041664 / 2A041665 THRU 2A051741 / 2A051743 & Up
MerCruiser8.2L Mag EC (H.O. Model)1A350340 THRU 2A041664 / 2A051741 THRU 2A051741 / 2A041665 THRU 2A051740 / 2A051742 & Up
MerCruiser8.2L MPI Bravo1G400000 THRU 1G499999
MerCruiser8.2L TOWSPORT (BASE) EC2A789470 & Up
MerCruiser8.2L TOWSPORT (H.O.) EC2A789470 & Up
MerCruiser100 VAZER1A035000 THRU 1A036006
MerCruiser100 VAZER EC1A035295 THRU 1A036006
MerCruiser350 BLACK SCORPION SKI (GEN+) V-80K040001 THRU 0M391599
MerCruiser350 HORIZON BOBTAIL1G700000 THRU 1G799999
MerCruiser350 MAG MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI ALPHA/BRAVO EC1A623185 & Up / 1A300000 THRU 1A611927 / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO EC1A623185 & Up / 1A300000 THRU 1A611927 / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON MIE0L302200 THRU 0M299999 / 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI MIE0L302200 THRU 0M299999 / 0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI SKI0M300000 THRU 0M316999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0W689999
MerCruiser350 MPI ALPHA1G400000 THRU 1G499999
MerCruiser350 MPI Alpha/Bravo1G700000 THRU 1G799999
MerCruiser350 MPI BRAVO1G400000 THRU 1G499999
MerCruiserBLACK SCORPION 350 MAG MPI0M391600 THRU 0W689999 / 0W690000 THRU 0W698432
MerCruiserSCORPION 3500W698433 & Up
MerCruiserSCORPION 350 EC0W698433 & Up
MerCruiser357 Alpha 4V1G400000 & Up
MerCruiser357 HRZ BOBTAIL RM1G300000 THRU 1G399999
MerCruiser357 Mag Bravo 4V1G400000 THRU 1G499999
MerCruiser377 MAG MPI BRAVO1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser377 MAG MPI BRAVO EC1A623185 & Up / 1A343300 THRU 1A611927 / 1A611928 THRU 1A623184
MerCruiserSCORPION 3770W698433 & Up
MerCruiserSCORPION 377 HO EC1A091488 THRU 1A092170
MerCruiser383 Mag Bravo 4V1G480748 THRU 1G499999
MerCruiser383 Mag Inboard 4V1G400000 THRU 1G499999
MerCruiser383 MAG STROKER BRAVO1G400000 THRU 1G499999
MerCruiser383 MAG STROKER INBOARD1G300000 THRU 1G399999
MerCruiser383 MPI FWC Bravo1G700000 THRU 1G799999
MerCruiser383 STROKER SCORPION1G300000 & Up
MerCruiser383 STROKER SCORPION BRAVOAll & Up
MerCruiser496 BRAVO1G700000 THRU 1G701393 / 1G701569 THRU 1G799999
MerCruiser496 H.O. BRAVO1G400000 THRU 1G412955 / 1G700000 THRU 1G701402 / 1G701569 THRU 1G799999
MerCruiser496 MAG (Base Model)1A066166 THRU 1A350678 / 0M687083 THRU 0W059999 / 1A350679 & Up / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A066165 / 0M025000 THRU 0M687082
MerCruiser496 MAG (H.O. Model)0M687144 THRU 0W059999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A066165 / 0M025000 THRU 0M687143 / 1A066166 THRU 1A350678 / 1A350679 & Up
MerCruiser496 MAG EC (Base Model)1A066166 THRU 1A350440
MerCruiser496 MAG EC (H.O. Model)1A066166 THRU 1A350440
MerCruiser5200M970122 & Up
MerCruiser525 EFI0M956327 THRU 0M962885 / 0M953620 THRU 0M956326
MerCruiser5400M970866 & Up
MerCruiser600 SCi0M952908 THRU 0M962885
MerCruiser662 SCi0M956580 THRU 0M962885
MerCruiser700 SCi0M954560 THRU 0M962885
MerCruiser850 SCi0M957579 THRU 0M962885
MerCruiser1075 SCi0M957032 THRU 0M962885
MerCruiser1200 SCi0M956534 THRU 0M962885



Equivalent manufacturer part numbers

Manufacturer/BrandReference/Part Number
MerCruiser863077T, 863077R01 ✓ (actual), 86307AR01, 889463R01, 889463R1, 8M0095472
