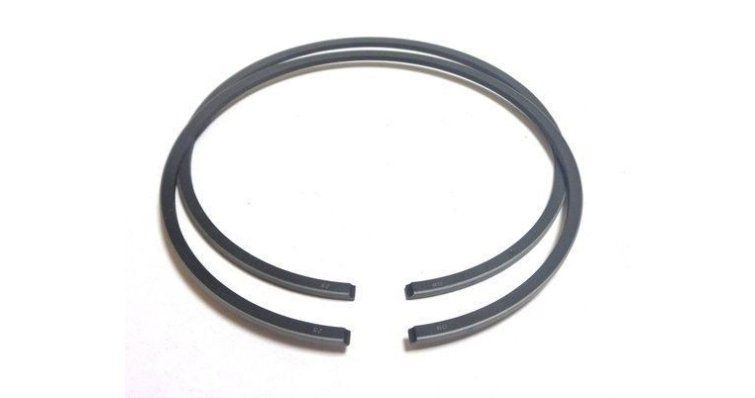

PISTON RINGS 0.50 688-11605-A0

Function and technical context

The piston ring is an essential component of the engine's compression system that ensures airtight sealing of the combustion chamber during compression and expansion cycles. Installed in the piston grooves, it works in direct contact with the cylinder walls to prevent combustion gas leaks into the crankcase and maintain the pressure necessary for an efficient explosion. This sealing is critical: if the ring is worn or damaged, there is a gradual loss of compression that reduces engine power, increases fuel consumption and accelerates the deterioration of other internal components.

When to replace this part?

Common symptoms of piston ring wear include noticeable loss of power, excessive oil consumption with bluish smoke from the exhaust, and difficulties when starting when cold. The replacement interval depends on the operating conditions, but it is advisable to evaluate the condition of the rings during each piston check or after intense operating cycles; Preventive replacement at the first symptoms prevents costly secondary cylinder damage. The +0.50 oversize of this ring requires a cylinder previously ground to that exact measurement.

Equivalent manufacturer part numbers
