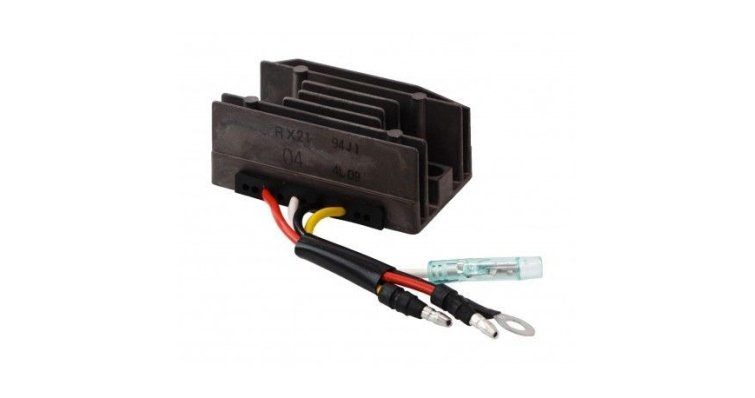

RECTIFIER REGULATOR 32800-94J11

Function and technical context

The rectifier regulator is an essential component of the outboard motor's electrical system: it is responsible for converting the alternating current (AC) generated by the stator into direct current (DC) suitable for charging the battery and powering the boat's electrical consumers. At the same time, it regulates the output voltage so that it does not exceed the threshold supported by the battery and the installed electrical accessories. A failure in this component can cause insufficient or excessive charging of the battery, damage to the electrical installation and even total stoppage of the engine due to lack of power.

When to replace this part?

The most common symptoms of a faulty rectifier regulator are: battery that does not charge or discharges with the engine running, charging light on permanently, unstable voltage in the electrical system or fuses that blow repeatedly. There is no fixed replacement interval, but it is recommended to check its operation with a multimeter at each seasonal maintenance, especially in engines with many hours of navigation. Replacing it preventively at the first symptoms avoids running out of battery at sea and protects the rest of the electrical installation.
