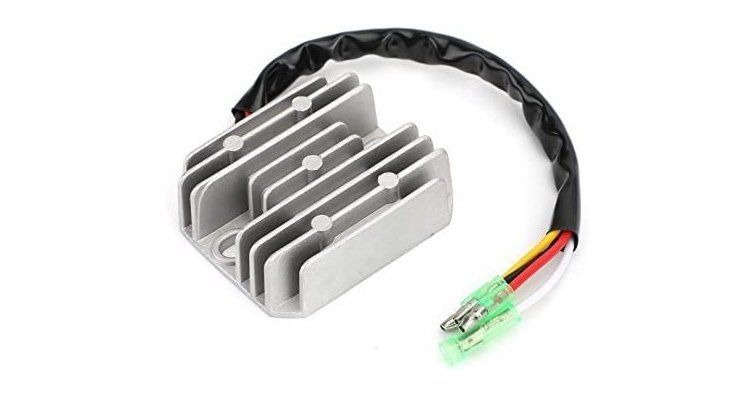

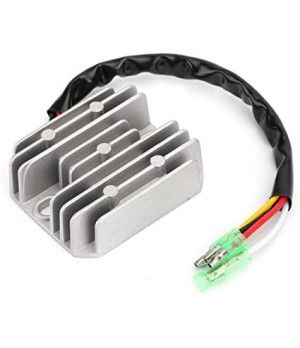

RECTIFIER REGULATOR 32800-94620

Function and technical context

The rectifier regulator is a key component of the electrical charging system in outboard motors: it converts the alternating current (AC) generated by the alternator stator into direct current (DC) usable by the battery and the boat's electrical consumers, while regulating the output voltage to prevent overloads. Without this element, the electrical system is left unprotected against voltage spikes that can damage the battery, the ignition system and the on-board electronics. Its correct operation is essential to maintain battery charge during navigation and ensure reliable starting and operation of the engine at all times.

When to replace this part?

The most common symptoms of a faulty regulator rectifier include the battery not charging or frequently overcharging, intermittent misfiring, navigation lights with varying intensity, or the voltmeter showing readings that are unstable or outside the normal range. As it is an electronic component with no moving parts, it does not have a fixed replacement interval, but it should be inspected during each seasonal maintenance, especially in engines with more than ten years of use or after having suffered a short circuit or battery failure. Replacing it preventively at the first signs of irregularity in the load avoids major electrical breakdowns that can leave the boat without starting while underway.
