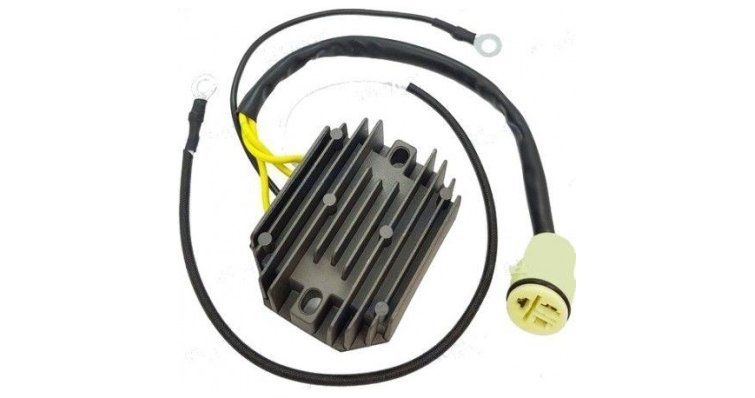

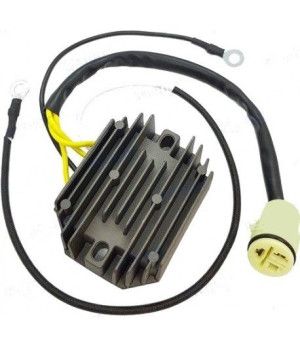

RECTIFIER REGULATOR 32800-93J03

Function and technical context

The rectifier regulator is an essential component of the electrical system of outboard motors, responsible for converting the alternating current (AC) generated by the alternator into stabilized direct current (DC), suitable for charging the battery and powering the on-board electrical systems. Without this component functioning properly, the alternator cannot supply usable power, leading to progressive battery depletion and failure of instruments, navigation systems and, ultimately, engine shutdown. Its correct voltage regulation also protects the engine's sensitive electronics against voltage spikes that could irreversibly damage control units and ignition modules.

When to replace this part?

The most common symptoms of a faulty rectifier regulator include the battery not holding a charge or draining while cruising, unstable or out-of-range voltage readings on the dashboard, and in severe cases, overcharging that rapidly deteriorates the battery or causes intermittent failures in electrical systems. It is recommended to check the condition of this component at each seasonal inspection, especially if the engine exceeds 500 hours of use or has had recurring electrical problems. Acting preventively at the first signs prevents being adrift due to an electrical failure on the high seas and protects the rest of the outboard's electrical installation.
