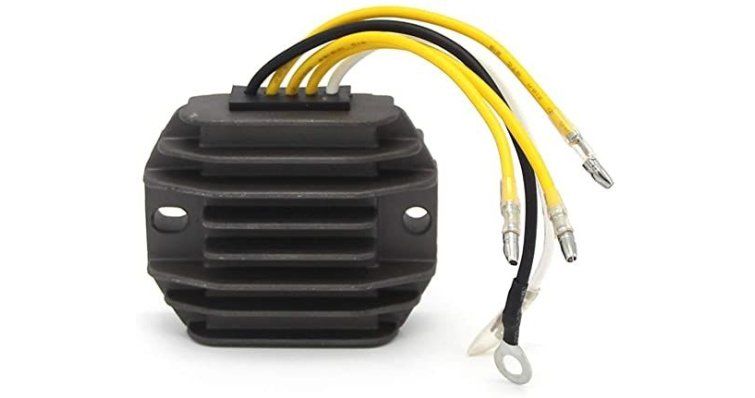

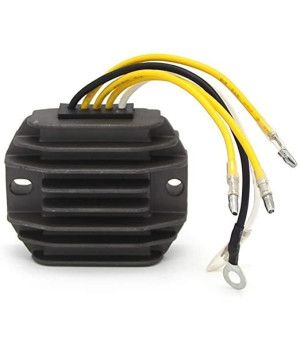

SUZUKI REGULATOR RECTIFIER 32800-89L01

Function and technical context

The rectifier regulator is an essential component of the outboard electrical system, responsible for converting the alternating current (AC) generated by the alternator stator into direct current (DC) usable by the battery and the boat's electrical consumers. In addition to rectifying the current, it regulates the charging voltage to avoid overloads that would damage the battery or motor wiring. In Suzuki DF series engines, this module works continuously every time the engine is running, supporting speed variations and the electrical demands of the navigation equipment. A failure in this component can leave the battery without charge, cause failures in the electronic ignition or cause irreversible damage to the charging system due to overvoltage.

When to replace this part?

The most common symptoms of a faulty rectifier regulator are the battery that does not charge or progressively discharges during navigation, unstable voltage readings on the panel, fuses that blow repeatedly or the engine that shuts down due to lack of power. As it is an electronic component subjected to constant heat and vibrations, it should be inspected at each seasonal inspection and replaced if there is any sign of charging failure. Replacing it preventively when detecting the first symptoms avoids being left without propulsion due to an unexpected electrical shutdown far from the port.
