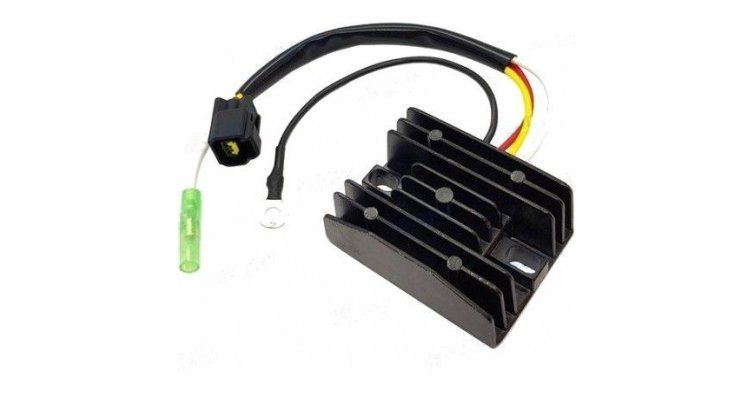

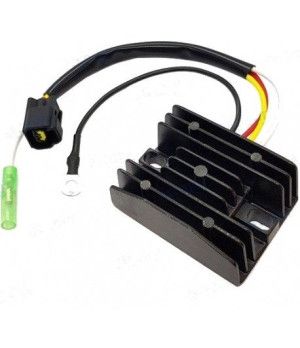

RECTIFIER REGULATOR 32800-89J00

Function and technical context

The rectifier regulator is an essential component of the outboard motor's electrical system: it converts the alternating current generated by the stator into direct current usable by the battery and the boat's electrical consumers, while regulating the voltage to prevent overloads. It works in the charging circuit, acting as a bridge between the alternator and the battery, and its correct operation guarantees that the battery remains charged during navigation. If this component fails, the charging system stops working: the battery is progressively depleted, electrical instruments and accessories lose power, and the engine may become inoperable at sea. The reference 32800-89J00 is designed for Suzuki DF25 and DF30 engines from the series between the years 2000 and 2007, and has equivalent numbering in the OMC range under the reference 5032030.

When to replace this part?

The most common symptoms of a defective rectifier regulator are the battery that does not charge or discharges quickly even after prolonged use of the engine, the appearance of unstable voltages in the electrical circuit and, in advanced cases, the complete failure of the on-board electrical supply. It can also manifest as overcharging of the battery, with excessive heating or loss of electrolyte, when the regulator loses the ability to limit the voltage. It is recommended to check the condition of this component at each seasonal inspection using a multimeter, measuring the charge voltage with the engine running; Any reading outside the nominal range or absence of load is reason for immediate replacement to avoid being left without electricity while sailing.
