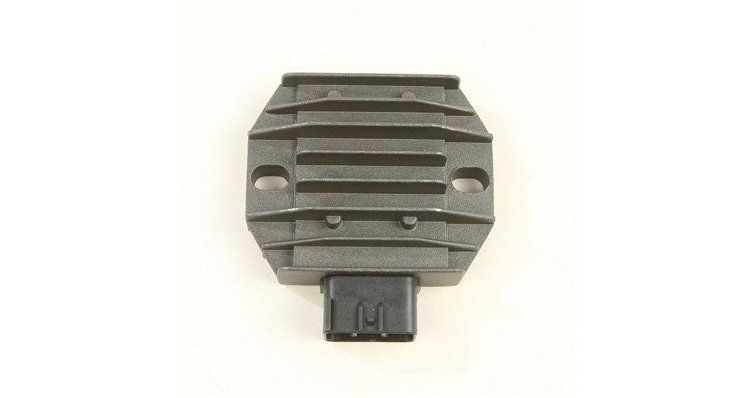

SUZUKI REGULATOR RECTIFIER 32800-88L01

Function and technical context

The rectifier regulator is part of the outboard motor's electrical system, carrying out two simultaneous and essential functions: it converts the alternating current (AC) generated by the stator into direct current (DC) usable by the boat's electrical consumers, and regulates that the charging voltage is maintained within the correct limits to protect the battery and connected equipment. Without this operational component, the engine alternator cannot supply a stable charge, resulting in discharged batteries, failure of navigation instruments and, in severe cases, irreversible damage to on-board electronics. Its correct function is especially critical in four-stroke engines with high electrical demand such as the Suzuki DF A-series models, where the engine management electronics depend on a stable power supply.

When to replace this part?

The most common symptoms of a faulty regulator rectifier include the inability to charge the battery even with the engine running, excessively high charging voltages that damage the battery, flickering or unstable navigation lights, and the illumination of the battery warning light or electrical alarms on the control panel. Unlike mechanical wear parts, there is no fixed interval of hours for their replacement, although it is recommended to verify its operation at each seasonal inspection using a multimeter, checking that the output voltage is within the manufacturer's nominal values. Replacing it preventively at the first signs of failure avoids being stranded due to lack of electricity or suffering damage to the battery and engine ECU, significantly more expensive repairs.
