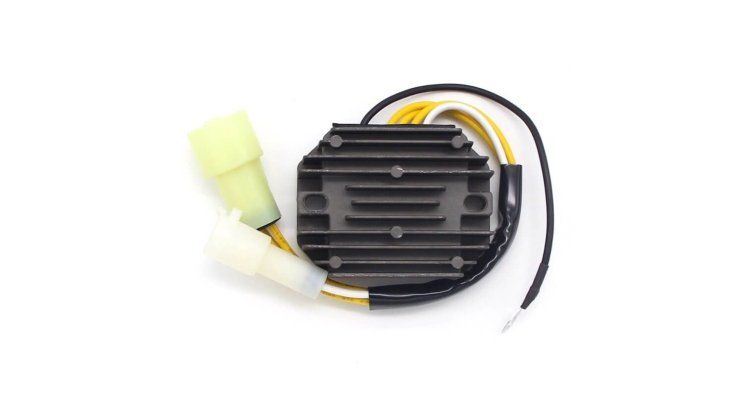

SUZUKI REGULATOR RECTIFIER 32800-87J10

Function and technical context

The rectifier regulator is an essential component of the outboard motor's electrical system: its mission is to convert the alternating current generated by the alternator into stabilized direct current, while regulating the voltage to protect the battery and the engine's electrical circuits. It works in the electrical charging system, acting as a bridge between the stator and the battery. A failure in this component can cause overcharging or undercharging of the battery, damage to the ignition system, loss of electric start and even failure of the stator due to unregulated voltage. The reference 32800-87J10 groups the rectification and voltage regulation functions in a single device, covering the electrical needs of the Suzuki DF40 and DF50 engines of the affected series.

When to replace this part?

The most frequent symptoms of a rectifier regulator in poor condition are: battery that does not charge or discharges with the engine running, unstable voltage in the electrical panel, intermittent failures in the electronic ignition or position lights with variable brightness depending on the engine revolutions. In outboard engines with intensive use, it is recommended to check the rectifier regulator during each seasonal maintenance or in the event of any anomaly in the charging system. Replacing it preventively when detecting the first signs avoids being left without starting at sea and protects higher-cost electrical components such as the stator or the control unit.
