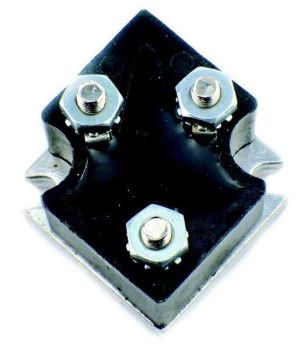

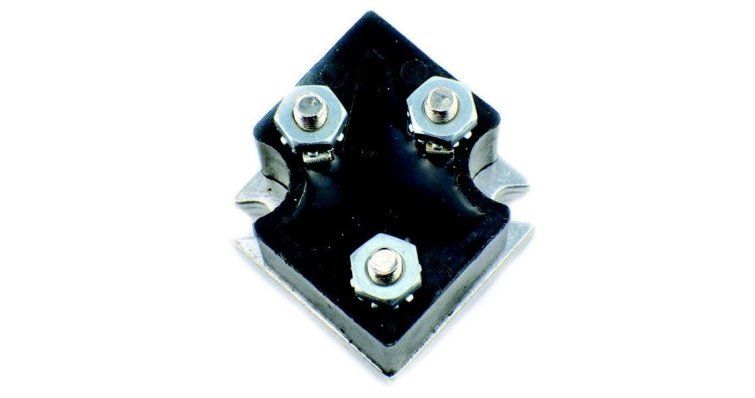

Mercury 332-2910 PH350-0003 Rectifier

Function and Technical Context

The rectifier is part of the charging and electrical regulation system of the outboard motor, being responsible for converting the alternating current (AC) generated by the stator or alternator into direct current (DC) usable for charging the battery and powering the onboard electrical systems. Without a rectifier in correct operating condition, the battery does not receive charge during navigation, which can leave the vessel without electricity for starting, instrumentation, or navigation lights. This component works in close relationship with the stator and voltage regulator, forming the core of the charging circuit; its degradation directly affects the stability of the supplied voltage and can cause battery overcharging or deep discharge. The rectifier 332-2910 / PH350-0003 is designed for Mercury and Mariner outboard motors from 7 to 200 HP, ensuring precise electrical integration with the harnesses and connectors specific to these series.

When to Replace This Part?

The most common symptoms of a faulty rectifier are battery that does not charge or progressively discharges during navigation, unstable voltage readings or below 13.5 V with the motor running, and occasionally repeated fuse blowouts in the charging circuit. It is recommended to check the rectifier condition at each seasonal service using a multimeter, measuring the output voltage with the engine at medium rpm; if voltage drops or irregular readings are detected, immediate replacement is the correct action. Replacing the rectifier preventively at the first symptoms avoids being stranded due to lack of electrical starting or damaging the battery through incorrect charging cycles.

Mercury / MerCruiser

Equivalent Manufacturer References
