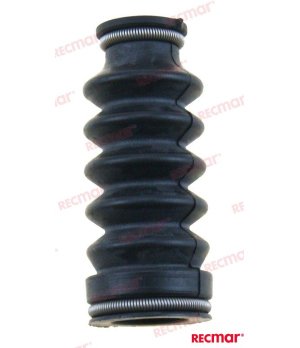

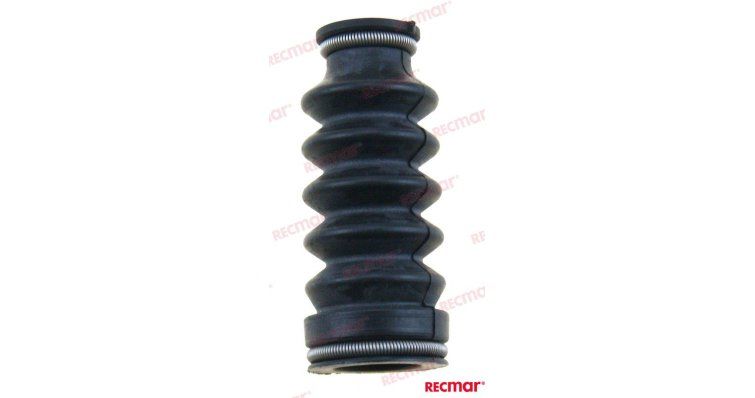

SUZUKI GEARBOX VAR. BELLOWS

Function and technical context

The shift linkage bellows is the component responsible for protecting and sealing the gear selector mechanism in the outboard drive unit, preventing salt water, dirt and moisture from entering the linkage joint area. It works within the transmission system, specifically in the connection between the shift knob and the motor foot gearbox. Its integrity is essential: a cracked or deteriorated bellows allows corrosion to penetrate the linkage, which can cause harsh actuation or even blocking of the gear change, with the consequent risk of loss of control of the boat. This component is designed for low and medium displacement Suzuki DF and DT series outboard engines, with coverage for a wide range of models manufactured from the mid-1980s to the early 2010s.

When to replace this part?

The most common symptoms of deterioration of the shift bellows include difficulty engaging or disengaging forward and reverse gears, excessive play in the selector lever, presence of visible rust or corrosion on the linkage and, in advanced cases, breakage or plasticization of the bellows itself that allows direct entry of water. It is recommended to inspect this element during each seasonal maintenance, since continuous exposure to salt water, UV rays and thermal cycles accelerates the aging of the elastomer. Replacing it preventively at the first signs of cracking or loss of elasticity prevents costly damage to the linkage and ensures safe control of propulsion at all times.
