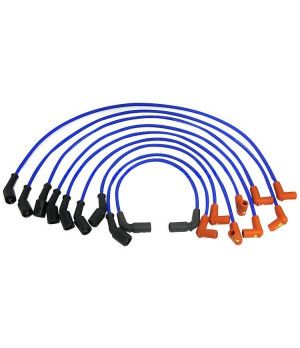

SPARK PLUG WIRE KIT 6.2L 84-863656A1

REC15-813
€170.78
Tax included
For MercCruiser 6.2L MPI and MIE, 5.0L, 5.7L engines and MAG models from 350-377 hp. Electronic ignition system ref. 84-863656A1. It transmits the ignition voltage from the coil to the spark plugs under continuous driving conditions.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Thursday 13 August and Friday 14 August with UPS/DHL/TNT North America

Description

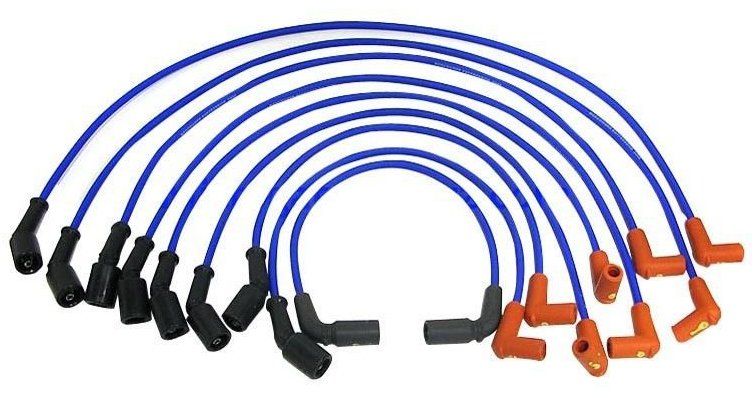

Complete set of spark plug wires for MercCruiser 6.2L MPI and MIE engines with electronic ignition. This set of cables guarantees the correct transmission of the ignition voltage from the coil to the spark plugs, ensuring optimal engine operation in continuous navigation conditions. The MercCruiser part number 84-863656A1 replaces the previous MAG15-813 assembly, improving ignition system reliability in high-performance marine applications.

These cables are designed to withstand the extreme conditions of the marine environment: salinity, humidity and temperature variations. Its superior quality insulation protects against current leakage and ensures consistent sparks at all engine revolutions.



Engine Compatibility

Mercury/MerCruiser

MarcaModeloRango de serie
MerCruiser5.0L MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser5.0L MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser5.7L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI MIE EC1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser5.7L MPI SKI1A090000 & Up
MerCruiser5.7L MPI TOW1G400000 THRU 1G499999
MerCruiser5.7L MPI TOWSPORT WITH GEN III1A091881 & Up
MerCruiser5.7L SKI EC1A090000 & Up
MerCruiser6.2L MPI HORIZON MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE1A090000 THRU 1A092168 / 1A092169 & Up
MerCruiser6.2L MPI MIE EC1A091600 THRU 1A092168 / 1A092169 & Up
MerCruiserMX 6.2L MPI BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiserMX 6.2L MPI HORIZON MIE0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI MIE0M310000 THRU 0M316999 / 0M398395 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398394
MerCruiserMX 6.2L MPI SKI0M317000 THRU 0W689999
MerCruiser350 HORIZON BOBTAIL1G700000 THRU 1G799999
MerCruiser350 MAG MPI ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 1A300000 THRU 1A611927 / 0M600000 THRU 0W059999 / 1A623185 & Up / 1A611928 THRU 1A623184 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A299999 / 0M600000 THRU 0W059999 / 0M300000 THRU 0M599999
MerCruiser350 MAG MPI HORIZON ALPHA/BRAVO EC1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser350 MAG MPI HORIZON MIE0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI MIE0M310000 THRU 0M316999 / 0M398372 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0M398371
MerCruiser350 MAG MPI SKI0M300000 THRU 0M316999 / 0W690000 THRU 1A089999 / 0M317000 THRU 0W689999
MerCruiser350 MPI ALPHA1G400000 THRU 1G499999
MerCruiser350 MPI Alpha/Bravo1G700000 THRU 1G799999
MerCruiser350 MPI BRAVO1G400000 THRU 1G499999
MerCruiser350 MPI Crate1G400000 THRU 1G499999
MerCruiser357 HRZ BOBTAIL RM1G300000 THRU 1G399999
MerCruiser377 MAG MPI BRAVO1A300000 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser377 MAG MPI BRAVO EC1A343300 THRU 1A611927 / 1A623185 & Up / 1A611928 THRU 1A623184
MerCruiser383 MAG STROKER BRAVO1G400000 THRU 1G499999
MerCruiser383 MAG STROKER INBOARD1G300000 THRU 1G399999
MerCruiser383 MPI FWC Bravo1G700000 THRU 1G799999
MerCruiser385 Performance Tuned1G400000 THRU 1G499999



Equivalent manufacturer part numbers

Manufacturer/BrandReference/Part Number
MerCruiser813, 84-863656A1, 863656A1
Volvo3888328



Certified compatibilities

  • MercCruiser: 84-863656A1, 863656A1
  • Volvo Penta: 3888328
  • Replaces: MAG15-813
