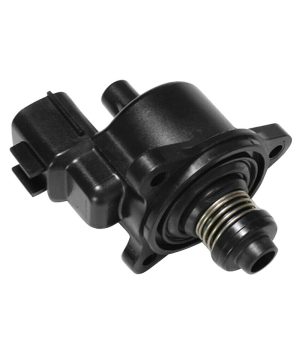

Yamaha IAC Sensor 68V-1312A-00

Function and technical context

The Yamaha 68V-1312A-00 IAC (Idle Air Control) sensor regulates the air flow in the intake system during idling of the outboard engine, allowing the ECU to maintain stable idle revolutions regardless of electrical load, water temperature or boating conditions. It acts as a proportional control valve in the electronic engine management circuit, continually adjusting the air passage opening to compensate for variations in engine demand. When this component fails, the engine may experience irregular idling, spontaneous shutdowns, or difficulty maintaining minimum rpm, compromising the maneuverability and safety of the boat. Its correct operation is essential in Yamaha four-stroke electronic injection engines, where precise control of the idle speed directly impacts consumption and engine response.

When to replace this part?

The most common symptoms of a faulty IAC sensor include unstable or fluctuating idle speeds without operator intervention, engine stalling when reducing power or reversing, and difficult cold starts when the system cannot adequately compensate for the air-fuel mixture. It is recommended to inspect the IAC sensor at each seasonal check or in the event of any anomaly in the idle behavior, since dirt due to carbon deposits or wear of the internal actuator can deteriorate its response. Replacing it preventively at the first symptoms avoids emergency interventions on board and protects the electronic injection system from secondary damage.
