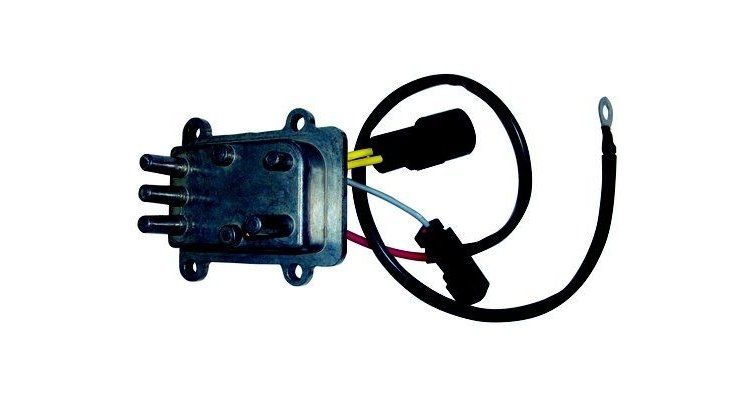

Voltage Regulator Rectifier 586048 300-03586

REC300-03586
€337.29
Tax included
Voltage regulator rectifier for charging systems in OMC outboard engines. Compatible with Johnson and Evinrude V6 60° 150-175 HP from 1996 onwards, as well as BE, BJ, C, E, J, L, RJ and SE series in various displacements.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Thursday 13 August and Friday 14 August with UPS/DHL/TNT North America

Description

Function and Technical Context

The regulator-rectifier is the central component of the electrical charging system in outboard motors, responsible for converting the alternating current (AC) generated by the stator into direct current (DC) usable by the battery and onboard electronic systems. At the same time, it regulates the output voltage to prevent overcharges that could damage the battery, tachometer, instruments, or CDI unit. In the 60° V6 engines of the Johnson/Evinrude family of 150 and 175 HP manufactured from 1996 onwards, this component works in close relationship with the stator and ignition switch, being an essential link for the correct operation of all electrical systems on the vessel. A faulty regulator-rectifier can cause insufficient or excessive battery charging, sudden engine shutdowns, instrument failures, and in severe cases, complete failure of the onboard electrical system.

When to Replace This Part?

The most common symptoms of a defective regulator-rectifier include the battery not charging or continuously overcharging, the onboard voltmeter showing erratic or out-of-range readings, and unexpected engine shutdowns or restarts during navigation. It is also common to detect excessive heating of the regulator itself or charging circuit fuses repeatedly blowing without apparent cause. It is recommended to inspect this component during each seasonal maintenance and replace it preventively at any sign of electrical failure, as a breakdown at sea could leave the vessel without propulsion and without communications; replacing it in time is the safest and most economical decision in the long term.

Compatible Johnson/Evinrude Engines

SeriesModels
BE150BE150ELECD 1998, BE150ELEDB 1996, BE150ELEUC 1997, BE150ELEUE 1997, BE150EXECD 1998, BE150EXEDB 1996, BE150EXEUC 1997, BE150EXEUE 1997, BE150GLECD 1998, BE150GLEDB 1996, BE150GLEUC 1997, BE150GLEUE 1997, BE150NXECD 1998, BE150NXEDB 1996, BE150NXEUC 1997, BE150NXEUE 1997
BE175BE175EXECD 1998, BE175EXEDB 1996, BE175EXEUC 1997, BE175EXEUE 1997, BE175GLECD 1998, BE175GLEDB 1996, BE175GLEUC 1997, BE175GLEUE 1997, BE175NXECD 1998, BE175NXEDB 1996, BE175NXEUC 1997, BE175NXEUE 1997
BJ150BJ150ELECD 1998, BJ150ELEDB 1996, BJ150ELEUC 1997, BJ150ELEUE 1997, BJ150EXECD 1998, BJ150EXEDB 1996, BJ150EXEUC 1997, BJ150EXEUE 1997, BJ150GLECD 1998, BJ150GLEDB 1996, BJ150GLEUC 1997, BJ150GLEUE 1997, BJ150NXECD 1998, BJ150NXEDB 1996, BJ150NXEUC 1997, BJ150NXEUE 1997
BJ175BJ175EXECD 1998, BJ175EXEDB 1996, BJ175EXEUC 1997, BJ175EXEUE 1997, BJ175GLECD 1998, BJ175GLEDB 1996, BJ175GLEUC 1997, BJ175GLEUE 1997, BJ175NXECD 1998, BJ175NXEDB 1996, BJ175NXEUC 1997, BJ175NXEUE 1997, BJ175PLEES 1999, BJ175PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ175PLSSC Elec. Start, TNT, 20 IN. shaft 2000, BJ175PXEES 1999, BJ175PXSSC Elec. Start, TNT, 20 IN. shaft, wht, N/A USA 2000, BJ175VXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, BJ175VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000
C150C150ALCAAF - (G2 66° V6, 2.7 L), C150ALCABA - (G2 66° V6, 2.7 L), C150ALHAAF - (G2 66° V6, 2.7 L), C150ALHABA - (G2 66° V6, 2.7 L), C150AXCAAE - (G2 66° V6, 2.7 L), C150AXCAAF - (G2 66° V6, 2.7 L), C150AXCABA - (G2 66° V6, 2.7 L), C150AXCABB - (G2 66° V6, 2.7 L), C150AXCABC - (G2 66° V6, 2.7 L), C150AXHAAE - (G2 66° V6, 2.7 L), C150AXHAAF - (G2 66° V6, 2.7 L), C150AXHABA - (G2 66° V6, 2.7 L), C150AXHABB - (G2 66° V6, 2.7 L), C150AXHABC - (G2 66° V6, 2.7 L), C150FLHAAA - (G2 66° V6, 2.7 L), C150FLHAAB - (G2 66° V6, 2.7 L), C150FLHAAC - (G2 66° V6, 2.7 L), C150FLHAAD - (G2 66° V6, 2.7 L), C150FLHAAE - (G2 66° V6, 2.7 L), C150FLHAAF - (G2 66° V6, 2.7 L), C150FLHABA - (G2 66° V6, 2.7 L), C150FLHABB - (G2 66° V6, 2.7 L), C150FLHABC - (G2 66° V6, 2.7 L), C150FXHAAA - (G2 66° V6, 2.7 L), C150FXHAAB - (G2 66° V6, 2.7 L), C150FXHAAC - (G2 66° V6, 2.7 L), C150FXHAAD - (G2 66° V6, 2.7 L), C150FXHAAE - (G2 66° V6, 2.7 L), C150FXHAAF - (G2 66° V6, 2.7 L), C150FXHABA - (G2 66° V6, 2.7 L), C150FXHABB - (G2 66° V6, 2.7 L), C150FXHABC - (G2 66° V6, 2.7 L), C150GLPAFA - (G2 66° V6, 2.7 L), C150GLPAFB - (G2 66° V6, 2.7 L), C150GLPAFD - (G2 66° V6, 2.7 L), C150GLPAFE - (G2 66° V6, 2.7 L), C150GLPAFF - (G2 66° V6, 2.7 L), C150GXCAAFA - (G2 66° V6, 2.7 L), C150GXCAAFB - (G2 66° V6, 2.7 L), C150GXCAAFF - (G2 66° V6, 2.7 L), C150GXCPAFA - (G2 66° V6, 2.7 L), C150GXCPAFB - (G2 66° V6, 2.7 L), C150GXCPAFF - (G2 66° V6, 2.7 L), C150GXPAFA - (G2 66° V6, 2.7 L), C150GXPAFB - (G2 66° V6, 2.7 L), C150GXPAFF - (G2 66° V6, 2.7 L), C150HGLFAFB - (G2 66° V6, 2.7 L), C150HGLFAFD - (G2 66° V6, 2.7 L), C150HGLFAFE - (G2 66° V6, 2.7 L), C150HGLFAFF - (G2 66° V6, 2.7 L), C150HGLPAFA - (G2 66° V6, 2.7 L), C150HGLPAFB - (G2 66° V6, 2.7 L), C150HGLPAFD - (G2 66° V6, 2.7 L), C150HGLPAFE - (G2 66° V6, 2.7 L), C150HGLPAFF - (G2 66° V6, 2.7 L), C150HGXAAFA - (G2 66° V6, 2.7 L), C150HGXAAFB - (G2 66° V6, 2.7 L), C150HGXAAFD - (G2 66° V6, 2.7 L), C150HGXAAFE - (G2 66° V6, 2.7 L), C150HGXAAFF - (G2 66° V6, 2.7 L), C150HGXCAFA - (G2 66° V6, 2.7 L), C150HGXCAFB - (G2 66° V6, 2.7 L), C150HGXCAFF - (G2 66° V6, 2.7 L), C150HGXFAFA - (G2 66° V6, 2.7 L), C150HGXFAFB - (G2 66° V6, 2.7 L), C150HGXFAFE - (G2 66° V6, 2.7 L), C150HGXFAFF - (G2 66° V6, 2.7 L), C150HGXOAFA - (G2 66° V6, 2.7 L), C150HGXOAFB - (G2 66° V6, 2.7 L), C150HGXOAFF- (G2 66° V6, 2.7 L), C150HGXPAFA - (G2 66° V6, 2.7 L), C150HGXPAFB - (G2 66° V6, 2.7 L), C150HGXPAFD - (G2 66° V6, 2.7 L), C150HGXPAFF - (G2 66° V6, 2.7 L), C150HWLFAFA - (G2 66° V6, 2.7 L), C150HWLFAFB - (G2 66° V6, 2.7 L), C150HWLFAFE - (G2 66° V6, 2.7 L), C150HWLFAFF - (G2 66° V6, 2.7 L), C150HWLPAFA - (G2 66° V6, 2.7 L), C150HWLPAFB - (G2 66° V6, 2.7 L), C150HWLPAFE - (G2 66° V6, 2.7 L), C150HWLPAFF - (G2 66° V6, 2.7 L), C150HWXAAFA - (G2 66° V6, 2.7 L), C150HWXAAFB - (G2 66° V6, 2.7 L), C150HWXAAFF - (G2 66° V6, 2.7 L), C150HWXCAFA - (G2 66° V6, 2.7 L), C150HWXCAFB - (G2 66° V6, 2.7 L), C150HWXCAFE - (G2 66° V6, 2.7 L), C150HWXCAFF - (G2 66° V6, 2.7 L), C150HWXFAFA - (G2 66° V6, 2.7 L), C150HWXFAFB - (G2 66° V6, 2.7 L), C150HWXFAFE - (G2 66° V6, 2.7 L), C150HWXFAFF - (G2 66° V6, 2.7 L), C150HWXPAFA - (G2 66° V6, 2.7 L), C150HWXPAFB - (G2 66° V6, 2.7 L), C150HWXPAFE - (G2 66° V6, 2.7 L), C150HWXPAFF - (G2 66° V6, 2.7 L), C150PLAAA - (G2 66° V6, 2.7 L), C150PLAAB - (G2 66° V6, 2.7 L), C150PLAAC - (G2 66° V6, 2.7 L), C150PLAAD - (G2 66° V6, 2.7 L), C150PLAAE - (G2 66° V6, 2.7 L), C150PLAAF - (G2 66° V6, 2.7 L), C150PLABA - (G2 66° V6, 2.7 L), C150PLABB - (G2 66° V6, 2.7 L), C150PLABC - (G2 66° V6, 2.7 L), C150PLHAAA - (G2 66° V6, 2.7 L), C150PLHAAB - (G2 66° V6, 2.7 L), C150PLHAAC - (G2 66° V6, 2.7 L), C150PLHAAD - (G2 66° V6, 2.7 L), C150PLHAAE - (G2 66° V6, 2.7 L), C150PLHAAF - (G2 66° V6, 2.7 L), C150PLHABA - (G2 66° V6, 2.7 L), C150PLHABB - (G2 66° V6, 2.7 L), C150PLHABC - (G2 66° V6, 2.7 L), C150PXAAA - (G2 66° V6, 2.7 L), C150PXAAB - (G2 66° V6, 2.7 L), C150PXAAC - (G2 66° V6, 2.7 L), C150PXAAD - (G2 66° V6, 2.7 L), C150PXAAE - (G2 66° V6, 2.7 L), C150PXAAF - (G2 66° V6, 2.7 L), C150PXABA - (G2 66° V6, 2.7 L), C150PXABB - (G2 66° V6, 2.7 L), C150PXABC - (G2 66° V6, 2.7 L), C150PXCAAA - (G2 66° V6, 2.7 L), C150PXCAAB - (G2 66° V6, 2.7 L), C150PXCAAC - (G2 66° V6, 2.7 L), C150PXCAAD - (G2 66° V6, 2.7 L), C150PXCAAE - (G2 66° V6, 2.7 L), C150PXCAAF - (G2 66° V6, 2.7 L), C150PXCABA - (G2 66° V6, 2.7 L), C150PXCABB - (G2 66° V6, 2.7 L), C150PXCABC - (G2 66° V6, 2.7 L), C150PXHAAA - (G2 66° V6, 2.7 L), C150PXHAAB - (G2 66° V6, 2.7 L), C150PXHAAC - (G2 66° V6, 2.7 L), C150PXHAAD - (G2 66° V6, 2.7 L), C150PXHAAE - (G2 66° V6, 2.7 L), C150PXHAAF - (G2 66° V6, 2.7 L), C150PXHABA - (G2 66° V6, 2.7 L), C150PXHABB - (G2 66° V6, 2.7 L), C150PXHABC - (G2 66° V6, 2.7 L), C150WXCAAFA - (G2 66° V6, 2.7 L), C150WXCAAFB - (G2 66° V6, 2.7 L), C150WXCAAFF - (G2 66° V6, 2.7 L), C150XHCAAA - (G2 66° V6, 2.7 L), C150XHCAAB - (G2 66° V6, 2.7 L), C150XHCAAC - (G2 66° V6, 2.7 L), C150XHCAAD - (G2 66° V6, 2.7 L), C150XHCAAE - (G2 66° V6, 2.7 L), C150XHCAAF - (G2 66° V6, 2.7 L), C150XHCABA - (G2 66° V6, 2.7 L), C150XHCABB - (G2 66° V6, 2.7 L), C150XHCABC - (G2 66° V6, 2.7 L), C150XHOAAA - (G2 66° V6, 2.7 L), C150XHOAAB - (G2 66° V6, 2.7 L), C150XHOAAC - (G2 66° V6, 2.7 L), C150XHOAAD - (G2 66° V6, 2.7 L), C150XHOAAE - (G2 66° V6, 2.7 L), C150XHOAAF - (G2 66° V6, 2.7 L), C150XHOABA - (G2 66° V6, 2.7 L), C150XHOABB - (G2 66° V6, 2.7 L), C150XHOABC - (G2 66° V6, 2.7 L)
C175C175FLAAB - (G2 66° V6, 2.7 L), C175FLAAC - (G2 66° V6, 2.7 L), C175FLAAD - (G2 66° V6, 2.7 L), C175FLAAE - (G2 66° V6, 2.7 L), C175FLAAF - (G2 66° V6, 2.7 L), C175FLABA - (G2 66° V6, 2.7 L), C175FLABB - (G2 66° V6, 2.7 L), C175FLABC - (G2 66° V6, 2.7 L), C175FXAAB - (G2 66° V6, 2.7 L), C175FXAAC - (G2 66° V6, 2.7 L), C175FXAAD - (G2 66° V6, 2.7 L), C175FXAAE - (G2 66° V6, 2.7 L), C175FXABA - (G2 66° V6, 2.7 L), C175FXABB - (G2 66° V6, 2.7 L), C175FXABC - (G2 66° V6, 2.7 L), C175GLFAFA - (G2 66° V6, 2.7 L), C175GLFAFB - (G2 66° V6, 2.7 L), C175GLFAFF - (G2 66° V6, 2.7 L), C175GLPAFA - (G2 66° V6, 2.7 L), C175GLPAFB - (G2 66° V6, 2.7 L), C175GLPAFF - (G2 66° V6, 2.7 L), C175GXCAFA - (G2 66° V6, 2.7 L), C175GXCAFB - (G2 66° V6, 2.7 L), C175GXCAFF - (G2 66° V6, 2.7 L), C175GXCPAFA - (G2 66° V6, 2.7 L), C175GXCPAFB - (G2 66° V6, 2.7 L), C175GXCPAFE - (G2 66° V6, 2.7 L), C175GXCPAFF - (G2 66° V6, 2.7 L), C175GXFAFA - (G2 66° V6, 2.7 L), C175GXFAFB - (G2 66° V6, 2.7 L), C175GXFAFF - (G2 66° V6, 2.7 L), C175GXPAFA - (G2 66° V6, 2.7 L), C175GXPAFB - (G2 66° V6, 2.7 L), C175GXPAFE - (G2 66° V6, 2.7 L), C175GXPAFF - (G2 66° V6, 2.7 L), C175PLAAC - (G2 66° V6, 2.7 L), C175PLAAD - (G2 66° V6, 2.7 L), C175PLAAE - (G2 66° V6, 2.7 L), C175PLAAF - (G2 66° V6, 2.7 L), C175PLABA - (G2 66° V6, 2.7 L), C175PLABB - (G2 66° V6, 2.7 L), C175PLABC - (G2 66° V6, 2.7 L), C175PXAAC - (G2 66° V6, 2.7 L), C175PXAAD - (G2 66° V6, 2.7 L), C175PXAAE - (G2 66° V6, 2.7 L), C175PXAAF - (G2 66° V6, 2.7 L), C175PXABA - (G2 66° V6, 2.7 L), C175PXABB - (G2 66° V6, 2.7 L), C175PXABC - (G2 66° V6, 2.7 L), C175PXCAAE - (G2 66° V6, 2.7 L), C175PXCAAF - (G2 66° V6, 2.7 L), C175PXCABA - (G2 66° V6, 2.7 L), C175PXCABB - (G2 66° V6, 2.7 L), C175PXCABC - (G2 66° V6, 2.7 L), C175WLFAFA - (G2 66° V6, 2.7 L), C175WLFAFB - (G2 66° V6, 2.7 L), C175WLFAFF - (G2 66° V6, 2.7 L), C175WLPAFA - (G2 66° V6, 2.7 L), C175WLPAFB - (G2 66° V6, 2.7 L), C175WLPAFF - (G2 66° V6, 2.7 L), C175WXCAFA - (G2 66° V6, 2.7 L), C175WXCAFB - (G2 66° V6, 2.7 L), C175WXCAFF - (G2 66° V6, 2.7 L), C175WXCPAFA - (G2 66° V6, 2.7 L), C175WXCPAFB - (G2 66° V6, 2.7 L), C175WXCPAFF - (G2 66° V6, 2.7 L), C175WXFAFA - (G2 66° V6, 2.7 L), C175WXFAFB - (G2 66° V6, 2.7 L), C175WXFAFE - (G2 66° V6, 2.7 L), C175WXFAFF - (G2 66° V6, 2.7 L), C175WXPAFA - (G2 66° V6, 2.7 L), C175WXPAFB - (G2 66° V6, 2.7 L), C175WXPAFE - (G2 66° V6, 2.7 L), C175WXPAFF - (G2 66° V6, 2.7 L), C175XCAAB - (G2 66° V6, 2.7 L), C175XCAAC - (G2 66° V6, 2.7 L), C175XCAAD - (G2 66° V6, 2.7 L), C175XCAAE - (G2 66° V6, 2.7 L), C175XCAAF - (G2 66° V6, 2.7 L), C175XCABA - (G2 66° V6, 2.7 L), C175XCABB - (G2 66° V6, 2.7 L), C175XCABC - (G2 66° V6, 2.7 L)
C200C200AXAAE - (G2 66° V6, 2.7 L), C200AXAAF - (G2 66° V6, 2.7 L), C200AXABA - (G2 66° V6, 2.7 L), C200AXABB - (G2 66° V6, 2.7 L), C200AXABC - (G2 66° V6, 2.7 L), C200AXCAAE - (G2 66° V6, 2.7 L), C200AXCAAF - (G2 66° V6, 2.7 L), C200AXCABA - (G2 66° V6, 2.7 L), C200AXCABB - (G2 66° V6, 2.7 L), C200AXCABC - (G2 66° V6, 2.7 L), C200CXAAE - (G2 66° V6, 2.7 L), C200CXAAF - (G2 66° V6, 2.7 L), C200FLAAB - (G2 66° V6, 2.7 L), C200FLAAC - (G2 66° V6, 2.7 L), C200FLAAD - (G2 66° V6, 2.7 L), C200FLAAE - (G2 66° V6, 2.7 L), C200FLAAF - (G2 66° V6, 2.7 L), C200FLABA - (G2 66° V6, 2.7 L), C200FLABB - (G2 66° V6, 2.7 L), C200FLABC - (G2 66° V6, 2.7 L), C200FXAAB - (G2 66° V6, 2.7 L), C200FXAAC - (G2 66° V6, 2.7 L), C200FXAAD - (G2 66° V6, 2.7 L), C200FXAAE - (G2 66° V6, 2.7 L), C200FXAAF - (G2 66° V6, 2.7 L), C200FXABA - (G2 66° V6, 2.7 L), C200FXABB - (G2 66° V6, 2.7 L), C200FXABC - (G2 66° V6, 2.7 L), C200GLFAFA - (G2 66° V6, 2.7 L), C200GLFAFB - (G2 66° V6, 2.7 L), C200GLFAFF - (G2 66° V6, 2.7 L), C200GLPAFA - (G2 66° V6, 2.7 L), C200GLPAFB - (G2 66° V6, 2.7 L), C200GLPAFF - (G2 66° V6, 2.7 L), C200GXAAFA - (G2 66° V6, 2.7 L), C200GXAAFB - (G2 66° V6, 2.7 L), C200GXAAFF - (G2 66° V6, 2.7 L), C200GXCAAFA - (G2 66° V6, 2.7 L), C200GXCAAFB - (G2 66° V6, 2.7 L), C200GXCAAFF - (G2 66° V6, 2.7 L), C200GXCAFA - (G2 66° V6, 2.7 L), C200GXCAFB - (G2 66° V6, 2.7 L), C200GXCAFF - (G2 66° V6, 2.7 L), C200GXCPAFA - (G2 66° V6, 2.7 L), C200GXCPAFB - (G2 66° V6, 2.7 L), C200GXCPAFF - (G2 66° V6, 2.7 L), C200GXFAFA - (G2 66° V6, 2.7 L), C200GXFAFB - (G2 66° V6, 2.7 L), C200GXFAFE - (G2 66° V6, 2.7 L), C200GXFAFF - (G2 66° V6, 2.7 L), C200GXOAFA - (G2 66° V6, 2.7 L), C200GXOAFB - (G2 66° V6, 2.7 L), C200GXOAFF - (G2 66° V6, 2.7 L), C200GXPAFA - (G2 66° V6, 2.7 L), C200GXPAFB - (G2 66° V6, 2.7 L), C200GXPAFF - (G2 66° V6, 2.7 L), C200PLAAC - (G2 66° V6, 2.7 L), C200PLAAD - (G2 66° V6, 2.7 L), C200PLAAE - (G2 66° V6, 2.7 L), C200PLAAF - (G2 66° V6, 2.7 L), C200PLABA - (G2 66° V6, 2.7 L), C200PLABB - (G2 66° V6, 2.7 L), C200PLABC - (G2 66° V6, 2.7 L), C200PXAAC - (G2 66° V6, 2.7 L), C200PXAAD - (G2 66° V6, 2.7 L), C200PXAAE - (G2 66° V6, 2.7 L), C200PXAAF - (G2 66° V6, 2.7 L), C200PXABA - (G2 66° V6, 2.7 L), C200PXABB - (G2 66° V6, 2.7 L), C200PXABC - (G2 66° V6, 2.7 L), C200PXCAAC - (G2 66° V6, 2.7 L), C200PXCAAD - (G2 66° V6, 2.7 L), C200PXCAAE - (G2 66° V6, 2.7 L), C200PXCAAF - (G2 66° V6, 2.7 L), C200PXCABA - (G2 66° V6, 2.7 L), C200PXCABB - (G2 66° V6, 2.7 L), C200PXCABC - (G2 66° V6, 2.7 L), C200WLFAFA - (G2 66° V6, 2.7 L), C200WLFAFB - (G2 66° V6, 2.7 L), C200WLFAFE - (G2 66° V6, 2.7 L), C200WLFAFF - (G2 66° V6, 2.7 L), C200WLPAFA - (G2 66° V6, 2.7 L), C200WLPAFB - (G2 66° V6, 2.7 L), C200WLPAFF - (G2 66° V6, 2.7 L), C200WXAAFA - (G2 66° V6, 2.7 L), C200WXAAFB - (G2 66° V6, 2.7 L), C200WXAAFF - (G2 66° V6, 2.7 L), C200WXCAAFA - (G2 66° V6, 2.7 L), C200WXCAAFB - (G2 66° V6, 2.7 L), C200WXCAAFF - (G2 66° V6, 2.7 L), C200WXCAFA - (G2 66° V6, 2.7 L), C200WXCAFB - (G2 66° V6, 2.7 L), C200WXCAFF - (G2 66° V6, 2.7 L), C200WXCPAFA - (G2 66° V6, 2.7 L), C200WXCPAFB - (G2 66° V6, 2.7 L), C200WXCPAFF - (G2 66° V6, 2.7 L), C200WXFAFA - (G2 66° V6, 2.7 L), C200WXFAFB - (G2 66° V6, 2.7 L), C200WXFAFE - (G2 66° V6, 2.7 L), C200WXFAFF - (G2 66° V6, 2.7 L), C200WXPAFA - (G2 66° V6, 2.7 L), C200WXPAFB - (G2 66° V6, 2.7 L), C200WXPAFE - (G2 66° V6, 2.7 L), C200WXPAFF - (G2 66° V6, 2.7 L), C200XCAAB - (G2 66° V6, 2.7 L), C200XCAAC - (G2 66° V6, 2.7 L), C200XCAAD - (G2 66° V6, 2.7 L), C200XCAAE - (G2 66° V6, 2.7 L), C200XCABA - (G2 66° V6, 2.7 L), C200XCABB - (G2 66° V6, 2.7 L), C200XCABC - (G2 66° V6, 2.7 L), C200XOAAB - (G2 66° V6, 2.7 L), C200XOAAC - (G2 66° V6, 2.7 L), C200XOAAD - (G2 66° V6, 2.7 L), C200XOAAE - (G2 66° V6, 2.7 L), C200XOAAF - (G2 66° V6, 2.7 L), C200XOABA - (G2 66° V6, 2.7 L), C200XOABB - (G2 66° V6, 2.7 L), C200XOABC - (G2 66° V6, 2.7 L)
E150E150ELECD 1998, E150ELEDB 1996, E150ELEUC 1997, E150ELEUE 1997, E150EXECD 1998, E150EXEDB 1996, E150EXEUC 1997, E150EXEUE 1997, E150GLECD 1998, E150GLEDB 1996, E150GLEUC 1997, E150GLEUE 1997, E150JLECD 1998, E150JLEDB 1996, E150JLEUC 1997, E150JLEUE 1997, E150NXECD 1998, E150NXEDB 1996, E150NXEUC 1997, E150NXEUE 1997, E150SLECD 1998, E150SLEDB 1996, E150SLEUC 1997, E150SLEUE 1997, E150WPLSIF commercial, elec start, TNT, 20 in shaft 2001, E150WPLSSC Commercial, Elec Start, TNT, 20 IN. shaft 2000
E175E175EXECD 1998, E175EXEDB 1996, E175EXEUC 1997, E175EXEUE 1997, E175GLECD 1998, E175GLEDB 1996, E175GLEUC 1997, E175GLEUE 1997, E175NXECD 1998, E175NXEDB 1996, E175NXEUC 1997, E175NXEUE 1997, E175SLECD 1998, E175SLEDB 1996, E175SLEUC 1997, E175SLEUE 1997
J150J150CXEES 1999, J150CXSDE, J150CXSNF Carbureted, 25 in. shaft, White, Counter Rotation 2002, J150CXSOB, J150CXSRM, J150CXSSC Elec. Start, TNT, 25 IN. shaft, cntr. Rotate 2000, J150CXSTA, J150ELECD 1998, J150ELEDB 1996, J150ELEUC 1997, J150ELEUE 1997, J150EXECD 1998, J150EXEDB 1996, J150EXEUC 1997, J150EXEUE 1997, J150GLECD 1998, J150GLEDB 1996, J150GLEUC 1997, J150GLEUE 1997, J150GLSDE, J150GLSOB, J150GLSRM, J150GLSTA, J150GLSTF, J150JLECD 1998, J150JLEDB 1996, J150JLEUC 1997, J150JLEUE 1997, J150JPLEES 1999, J150JPLSIF jet drive, elec start, TNT, 20 in shaft 2001, J150JPLSSC Jet Drive, Elec. Start, TNT, 20 IN. shaft 2000, J150MLSOR, J150MLSRC, J150MLSTS, J150MXSOR, J150MXSRC, J150MXSSD Military, Elec. Start, TNT, 25 IN. shaft 2000, J150MXSTS, J150NXECD 1998, J150NXEDB 1996, J150NXEUC 1997, J150NXEUE 1997, J150PLEES 1999, J150PLSDD, J150PLSIF elec start, TNT, 20 in shaft 2001, J150PLSNF Carbureted, 20 in. shaft, Smoke 2002, J150PLSOE, J150PLSRB, J150PLSSC Military, Elec. Start, TNT, 20 IN. shaft 2000, J150PLSTF, J150PLSTM, J150PXEES 1999, J150PXSDD, J150PXSNF Carbureted, 25 in. shaft, White 2002, J150PXSOE, J150PXSRB, J150PXSSC Elec. Start, TNT, 25 IN. shaft 2000, J150PXSTM, J150SLECD 1998, J150SLEDB 1996, J150SLEUC 1997, J150SLEUE 1997, J150SPLEES 1999, J150SPLSSC Elec. Start, TNT, 20 IN. shaft 2000, J150VCSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J150VCXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, J150VLSIF elec start, TNT, 20 in shaft, wht 2001, J150VLSNF Carbureted, 20 in. shaft, White 2002, J150VLSSS Elec. Start, TNT, 20 IN. shaft, wht, cntr rotate 2000, J150VXSIF elec start, TNT, 25 in shaft, wht 2001, J150VXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J150WPLEES 1999, J150WPLSIF commercial, elec start, TNT, 20 in shaft 2001, J150WPLSSC Commercial, Elec Start, TNT, 20 IN. shaft 2000
J175J175CXEES 1999, J175CXSDE, J175CXSNF Carbureted, 25 in. shaft, White, Counter Rotation 2002, J175CXSOB, J175CXSRM, J175CXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J175CXSTA, J175EXECD 1998, J175EXEDB 1996, J175EXEUC 1997, J175EXEUE 1997, J175GLECD 1998, J175GLEDB 1996, J175GLEUC 1997, J175GLEUE 1997, J175GLSDE, J175GLSOB, J175GLSRM, J175GLSTA, J175GLSTF, J175MXSOR, J175MXSRC, J175MXSTS, J175NXECD 1998, J175NXEDB 1996, J175NXEUC 1997, J175NXEUE 1997, J175PLEES 1999, J175PLSDD, J175PLSIF elec start, TNT, 20 in shaft 2001, J175PLSNF Carbureted, 20 in. shaft, Smoke 2002, J175PLSOE, J175PLSRB, J175PLSSC Elec. Start, TNT, 20 IN. shaft 2000, J175PLSTF, J175PLSTM, J175PXEES 1999, J175PXSDD, J175PXSNF Carbureted, 25 in. shaft, White 2002, J175PXSOE, J175PXSRB, J175PXSSC Elec. Start, TNT, 25 IN. shaft, wht 2000, J175PXSTM, J175SLECD 1998, J175SLEDB 1996, J175SLEUC 1997, J175SLEUE 1997, J175SPLEES 1999, J175SPLSSC Elec. Start, TNT, 20 IN. shaft 2000, J175VCXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, J175VCXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J175VLSIF elec start, TNT, 20 in shaft, wht 2001, J175VLSNF Carbureted, 20 in. shaft, White 2002, J175VLSSS Elec. Start, TNT, 20 IN. shaft, wht 2000, J175VXSIF elec start, TNT, 25 in shaft, wht 2001, J175VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
L150L150GLECA 1998, L150GLEDC 1996, L150GLEUC 1997, L150GLEUR 1997
RJ150RJ150CXSSC Elec. Start, TNT, 25 IN. shaft, cntr. Rotate 2000, RJ150PLSIF elec start, TNT, 20 in shaft 2001, RJ150PLSSC Elec. Start, TNT, 20 IN. shaft 2000, RJ150PXSSC Elec. Start, TNT, 25 IN. shaft 2000, RJ150VCSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, RJ150VCSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, RJ150VLSIF elec start, TNT, 20 in shaft, wht 2001, RJ150VLSSS Elec. Start, TNT, 20 IN. shaft, wht, cntr rotate 2000, RJ150VXSIF elec start, TNT, 25 in shaft, wht 2001, RJ150VXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000
RJ175RJ175CXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, RJ175CXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, RJ175PLSIF elec start, TNT, 20 in shaft 2001, RJ175PLSSC Elec. Start, TNT, 20 IN. shaft 2000, RJ175VXSIF elec start, TNT, 25 in shaft, wht 2001, RJ175VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
SE150SE150WTPLB 1996, SE150WTPLT 1997, SE150WTPLT4 1997, SE150WTPLY 1998, SE150WTPXB 1996, SE150WTPXT 1997, SE150WTPXT4 1997, SE150WTPXY 1998
SJ150SJ150ELEDB 1996, SJ150WTPLB 1996, SJ150WTPLT 1997, SJ150WTPLT4 1997, SJ150WTPLY 1998, SJ150WTPXB 1996, SJ150WTPXT 1997, SJ150WTPXT4 1997, SJ150WTPXY 1998



Equivalent Manufacturer References

Manufacturer/BrandReference/Part Number
OMC0586048, 0769533, 586048, 03586 ✓ (actual)
