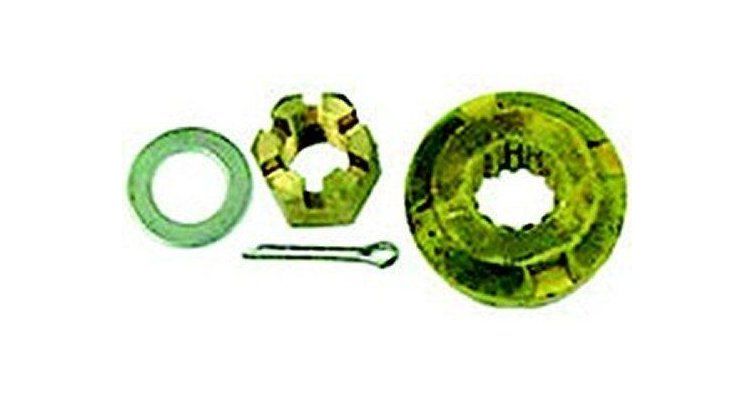

Propeller Locking Kit 57630-94300

Function and Technical Context

The propeller closure kit acts as a retention and sealing element in the propulsion shaft assembly, preventing unwanted axial displacement and ensuring that torque transmission between the shaft and propeller hub occurs correctly and safely. This component is part of the propulsion transmission system, located in the propeller shaft and hub area, where it is continuously exposed to torsional stresses, vibrations, and the harsh marine environment. If the closure kit loses its retention capacity, propeller displacement or even propeller loss during navigation can occur, resulting in total loss of propulsion and risk of serious damage to the propulsion shaft and lower gearcase of the outboard motor. Its proper condition is therefore critical both for vessel safety and for the mechanical integrity of the propulsion unit.

When Should You Replace This Part?

The most common signs that the propeller closure kit requires replacement are: perceptible axial play when moving the propeller by hand, knocking or unusual noises in the shaft area during navigation, and visible evidence of corrosion, deformation, or breakage in the kit components when inspecting the assembly. It is recommended to check the closure condition at each seasonal haul-out or whenever the propeller is removed to clear fouling or perform lower gearcase maintenance. Replacing it preventively at the first sign of wear prevents a breakdown during navigation that can be costly and compromise safety aboard.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
