OMC Cobra Anode 3853930 TEN00919

Function and Technical Context

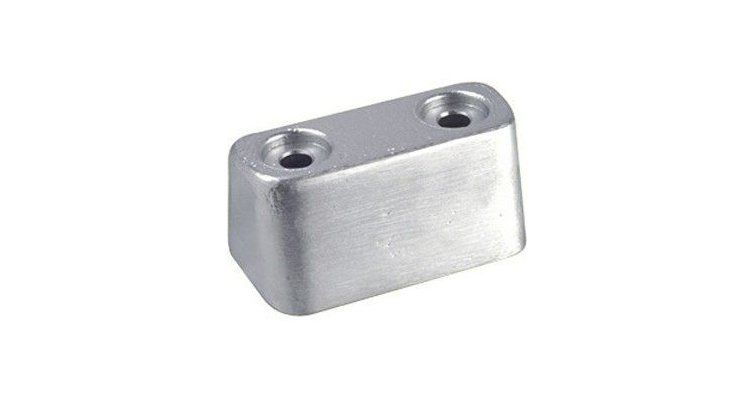

This zinc anode is specifically designed to protect the transom mirror of OMC Cobra outboard units manufactured between 1986 and 1993, directly replacing OMC reference 3853930. Its function is to act as a galvanic sacrificial anode: by oxidizing in a controlled manner, it protects the higher-value metallic components of the assembly — such as the transmission aluminum and the transom steel components — against electrochemical corrosion caused by immersion in saltwater, brackish water, or fresh water with minerals. Without effective cathodic protection, galvanic corrosion silently attacks the motor and transmission surfaces, causing severe structural damage and costly repairs. The correct installation of this anode on the transom is, therefore, one of the most important preventive maintenance measures to extend the service life of the OMC Cobra unit.

When to Replace This Component?

Anodes should be inspected at least once per boating season and replaced when they have lost approximately 50% of their mass, showing an irregular, porous, or heavily eroded surface. A completely consumed anode — or worse, absent — leaves the metallic surfaces of the transom and transmission exposed to accelerated corrosion that can manifest as pitting, material loss in the aluminum, or failures in the tail components. Professional recommendation is to change the anode every season as a preventive measure, regardless of its apparent visual condition, especially if the vessel operates in saltwater or brackish waters.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
