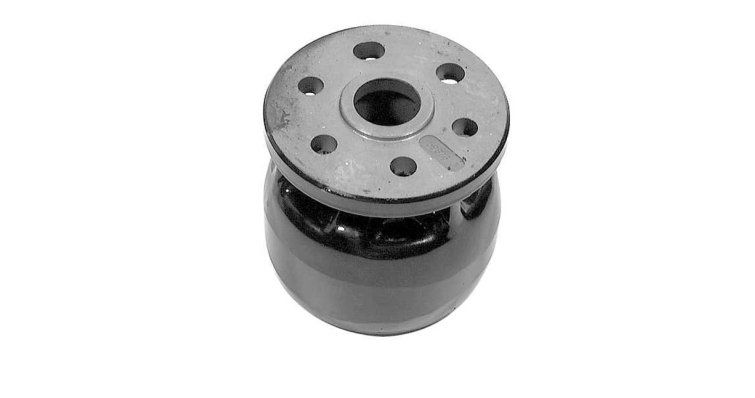

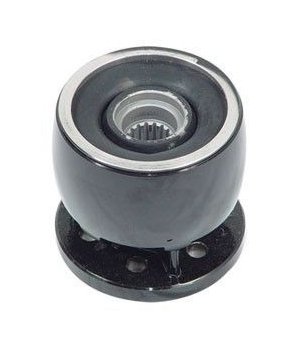

ENGINE COUPLING 59826A3

Function and technical context

The 59826A3 mechanical coupling is part of the transmission system in Mercruiser installations with Ford engines, acting as a connecting element between the crankshaft and the propulsion unit. Its function is to absorb the differences in axial and angular alignment between both axles, transmitting the engine torque fluidly and continuously to the propeller without significant energy losses. The internal elastomer of the assembly cushions the torsional vibrations generated during the combustion cycles, thus protecting the bearings of the reduction box and the seals of the tail shaft. A failure in this component directly compromises the integrity of the entire transmission line, potentially causing chain damage to the flexible coupling, the horn seal and the thrust bearings.

When to replace this part?

Progressive wear of the inner elastomeric core is manifested by perceptible vibrations in the hull at low and medium revolutions, intermittent metallic noises or clicking during acceleration and a gradual loss of response in power transmission. In salt water environments, the degradation of the elastomer is accelerated by the action of corrosive agents and thermal cycles, so it is recommended to visually inspect the assembly during each seasonal maintenance and consider its preventive replacement between 1,000 and 1,500 hours of operation. Replacing the coupling before it presents advanced symptoms of fatigue avoids navigation breakdowns that involve towing, unscheduled grounding and higher-cost repairs to the gearbox.

Engine Compatibility Table
