M20 nipple screw for Mercury Mariner engines from 8 to 60 hp in carburetor and EFI versions. Fixing and sealing element in the cooling circuit that prevents coolant leaks and the entry of salt water.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

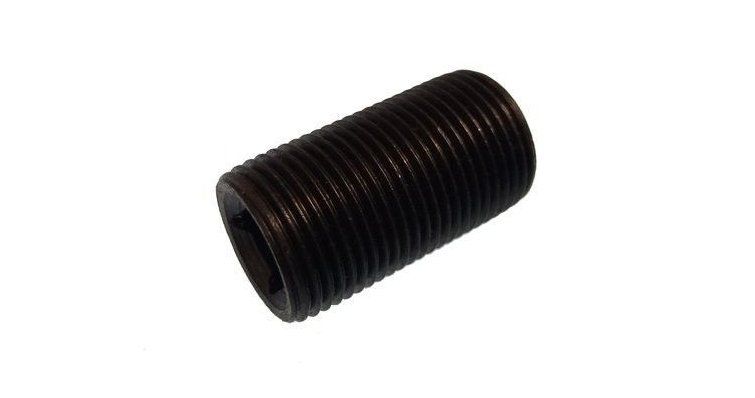

SCREW 822625
PAF15-07010003
€26.22
Tax included
M20 nipple screw for Mercury Mariner engines from 8 to 60 hp in carburetor and EFI versions. Fixing and sealing element in the cooling circuit that prevents coolant leaks and the entry of salt water.
Description
Function and technical context
The M20 nipple screw 822625 is a fixing and sealing element that operates in the cooling circuit ducts of Mercury, Mariner and Mercruiser engines. This part ensures the hermetic retention of the water chambers and flexible ducts, preventing coolant leaks during engine operation in variable navigation conditions. Its function is critical in the cooling system: any deterioration in the fastening allows the entry of salt water or loss of coolant, triggering engine overheating and irreversible internal damage to cylinders and gaskets.
When to replace this part?
The retaining nipple bolts on marine cooling systems should be checked annually before each sailing campaign, especially if the engine has been idle for months. Salt corrosion and continuous engine vibration progressively degrade the sealing capacity of these elements, manifesting in coolant leaks around the ducts or the formation of mineral deposits in the joints. Replacing this screw preventatively during seasonal maintenance prevents emergencies at sea and significantly prolongs the life of the entire cooling system.
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| Mercury Mariner | 8 HP Carb BODENSEE (International) | 0P086824 THRU 0P400999 |
| Mercury Mariner | 9.9 HP Carb (323 cc) | 0G760300 THRU 1B226999 / 0P075166 THRU 0P400999 |
| Mercury Mariner | 13.5 HP Carb (International) | 0P401000 & Up / 0P134638 THRU 0P400999 |
| Mercury Mariner | 15 HP Carb 2 CYL | 9973100 THRU 0P016999 / 0G590000 THRU 0G760299 / 1B227000 THRU 1B727495 / 0P401000 & Up / 0G760300 THRU 1B226999 / 0P075166 THRU 0P400999 |
| Mercury Mariner | 25 HP Carb | 0P153500 THRU 0P388282 / 0T409000 THRU 1B344298 / 9973100 THRU 0P016999 / 0G590000 THRU 0G760299 / 0G760300 THRU 0T408999 / 0P017000 THRU 0P153499 |
| Mercury Mariner | 30 HP Carb 3 CYL | 0P153500 THRU 0P400999 / 0T409000 THRU 1B226999 / 0G760300 THRU 0T408999 / 0P017000 THRU 0P153499 |
| Mercury Mariner | 30 HP EFI 3 CYL | 0T409000 THRU 1B226999 / 0P153500 THRU 0P400999 / 1C109093 THRU 1C456299 / 1C456300 & Up |
| Mercury Mariner | 35 HP EFI Jet 4 CYL | 1C453840 & Up |
| Mercury Mariner | 40 HP Carb | 9944807 THRU 0P016999 / 0G231123 THRU 0G760299 / 0G760300 THRU 0T408999 / 0P017000 THRU 0P153499 |
| Mercury Mariner | 40 HP Carb 3 CYL | 0P153500 THRU 0P400999 / 0T409000 THRU 1B226999 / 1B227000 THRU 1B344306 / 0P401000 & Up / 1C000001 THRU 1C018825 / 1C018826 & Up |
| Mercury Mariner | 40 HP Carb 4 CYL | 0P094500 THRU 0P206999 / 0T178500 THRU 0T598999 |
| Mercury Mariner | 40 HP Carb ITALY | 0P017000 THRU 0P094499 / 0G760300 THRU 0T178499 |
| Mercury Mariner | 40 HP EFI 3 CYL | 0T409000 THRU 1B226999 / 0P153500 THRU 0P400999 / 1B227000 THRU 1B355027 / 0P401000 THRU 0P515896 / 1C000001 THRU 1C043416 / 1C043417 THRU 1C456299 / 1C456300 & Up |
| Mercury Mariner | 40 HP EFI 4 CYL | 0P153500 THRU 0P400999 / 0T409000 THRU 1B355222 / 1C000001 THRU 1C050251 / 0P401000 THRU 0P515896 / 1C050252 THRU 1C453839 / 0P515897 THRU 0P580772 / 1C453840 & Up |
| Mercury Mariner | 40 HP EFI Jet 4 CYL | 1C051324 THRU 1C453839 / 1C453840 & Up |
| Mercury Mariner | 40 HP EFI SeaPro 4 CYL | 1C453840 & Up |
| Mercury Mariner | 45 HP Carb BODENSEE | 0G760300 THRU 0T178499 / 0P017000 THRU 0P094499 / 9944807 THRU 0P016999 / 0G231123 THRU 0G760299 |
| Mercury Mariner | 50 HP Carb | 0G760300 THRU 0T178499 / 0P017000 THRU 0P094499 / 9944807 THRU 0P016999 / 0G231123 THRU 0G760299 |
| Mercury Mariner | 50 HP Carb 4 CYL | 0P094500 THRU 0P206999 / 0T178500 THRU 0T598999 |
| Mercury Mariner | 50 HP Carb BIGFOOT | 0G760300 THRU 0T178499 / 0P017000 THRU 0P094499 / 9944807 THRU 0P016999 / 0G231123 THRU 0G760299 |
| Mercury Mariner | 50 HP EFI 4 CYL | 0P153500 THRU 0P400999 / 0T409000 THRU 1B355222 / 1C000001 THRU 1C050251 / 0P401000 THRU 0P515896 / 1C050252 THRU 1C453839 / 0P515897 THRU 0P580772 / 1C453840 & Up |
| Mercury Mariner | 60 HP 1.0L EFI L4 APX | 1C782688 & Up |
| Mercury Mariner | 60 HP Carb 4 CYL | 0P094500 THRU 0P206999 / 0T178500 THRU 0T598999 |
| Mercury Mariner | 60 HP EFI 4 CYL | 0P153500 THRU 0P400999 / 0T409000 THRU 1B355222 / 1C000001 THRU 1C050251 / 0P401000 THRU 0P515896 / 1C050252 THRU 1C453839 / 0P515897 THRU 0P580772 / 1C453840 & Up |
| Mercury Mariner | 60 HP EFI SeaPro 4 CYL | 1C453840 & Up |
| Mercury Mariner | 60R HP EFI Racing | 1C615064 & Up |
| Mercury Mariner | Formula 60 | 1C104574 THRU 1C782687 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury Mariner | 07010003, 822625 |
| Parsun | F15-07010003 |
| Yamaha | 90401-20M00-00 |
Product Details
PAF15-07010003
