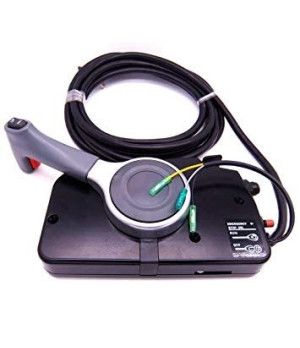

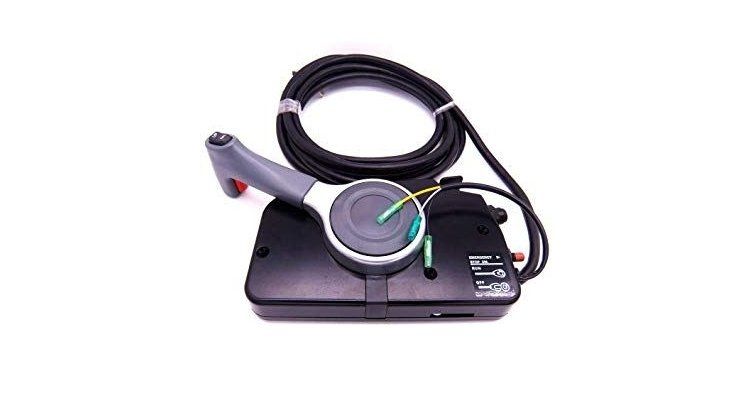

SUZUKI SIDE CONTROL STD 67200-99E56

Function and technical context

The side control is the control assembly that allows the skipper to manage the gear and speed of the outboard engine directly from the side of the boat, acting on the acceleration and clutch system simultaneously using a single lever. Installed between the pilot control panel and the engine, it transmits mechanical or cable commands for both the throttle and the forward and reverse clutch, being an essential element in the safe and precise driving of the boat. A side control in poor condition can cause imprecise engine responses, loss of control over the power delivered or even involuntary locking in a driving position, which represents a real risk in docking maneuvers or navigation in busy waters. This standard size unit is manufactured for Suzuki DF series outboard motors, guaranteeing the precise mechanical adjustment that these propellers require.

When to replace this part?

The most common symptoms of wear on a side shifter include excessive play in the lever, stiff or jerky movement when accelerating or changing gears, incomplete return to neutral, and visible deterioration of the internal mechanism or connecting cables. It is recommended to inspect the control at each seasonal inspection, paying special attention to the smoothness of operation and the correct interlocking of the neutral, forward and reverse positions. Replacing the side control at the first symptoms of irregularity avoids situations of loss of control during navigation and costly emergency interventions outside the port.
