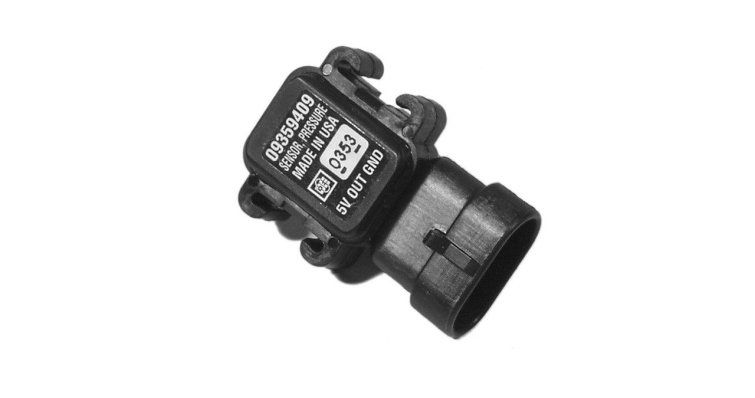

MAP SENSOR V6 V8 MPI 8M0054726 881731
REC8M0054726
€59.90
Tax included
Measures intake manifold absolute pressure on fuel-injected MerCruiser V6 and V8 engines. Transmits data to the control unit to adjust the air-fuel mixture and ignition timing. Compatible with references 8M0054726, 881731, 861249A1 and 8M0186195.
Description
The MAP (Manifold Absolute Pressure) sensor is a critical component in the fuel injection systems of Mercury Marine V6 and V8 MPI engines. This sensor measures the absolute pressure of the intake manifold and transmits the information to the engine control unit to optimize the air-fuel mixture and ignition timing, ensuring precise and efficient operation of the marine thruster.
Compatible with Mercury Marine references 861249A1, 881731, 8M0054726 and 8M0186195, as well as Indmar engines using reference 556102. This replacement part guarantees full compatibility with high-performance MPI applications.
Engine Compatibility
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | 4.3L EFI (GEN+) TBI GM 262 V-6 | 0L619000 THRU 0M322780 / 0L012009 THRU 0L618999 |
| MerCruiser | 5.0L EFI GM 305 V-8 | 0L012052 THRU 0L339999 / 0L331631 THRU 0M299999 |
| MerCruiser | 5.7L EFI GM 350 V-8 | 0L010035 THRU 0L339999 / 0L325977 THRU 0M299999 |
| MerCruiser | MX 6.2L MPI BRAVO | 0L680003 THRU 0M299999 |
| MerCruiser | MX 6.2L MPI MIE | 0L302200 THRU 0M299999 |
| MerCruiser | 7.4L BRAVO (MPI)(GEN. VI) GM 454 V-8 | 0L010003 THRU 0M024330 |
| MerCruiser | 7.4L MPI MIE (L29) GEN. VI GM 454 V-8 | 0L002006 THRU 0L674613 |
| MerCruiser | 8.1L Crate Engine | 1G800000 THRU 1G899999 |
| MerCruiser | 8.1L H.O. Crate Engine | 1G800000 THRU 1G899999 |
| MerCruiser | 8.1L INBOARD | 1G300000 THRU 1G300884 |
| MerCruiser | 8.1L INBOARD (Base) | 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 0W698172 / 0M319125 THRU 0W089999 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319124 |
| MerCruiser | 8.1L INBOARD (Base) EC | 0W697154 THRU 1A380251 |
| MerCruiser | 8.1L INBOARD (H.O.) | 0W090000 THRU 0W389999 / 0W390000 THRU 0W689999 / 0W690000 THRU 0W698172 / 0M319191 THRU 0W089999 / 0W691821 THRU 1A380318 / 0M026000 THRU 0M319190 |
| MerCruiser | 8.1L INBOARD (H.O.) EC | 0W697154 THRU 1A380251 |
| MerCruiser | 8.1L Quicksilver Engine | 1G700000 THRU 1G701415 |
| MerCruiser | 8.1L TOWSPORT (Base) | 1A380074 & Up |
| MerCruiser | 350 MAG MPI ALPHA/BRAVO | 0L331599 THRU 0M299999 |
| MerCruiser | 350 MAG MPI HORIZON MIE | 0L302200 THRU 0M299999 |
| MerCruiser | 350 MAG MPI MIE | 0L302200 THRU 0M299999 |
| MerCruiser | 350 MAG MPI SKI (GEN+) GM 350 V-8 | 0L002600 THRU 0M310009 |
| MerCruiser | 350 MAG. MPI MIE (GEN+) GM 350 V-8 | 0L002008 THRU 0L302199 |
| MerCruiser | 496 BRAVO | 1G700000 THRU 1G701393 / 1G701569 THRU 1G799999 |
| MerCruiser | 496 H.O. BRAVO | 1G400000 THRU 1G412955 / 1G700000 THRU 1G701402 / 1G701569 THRU 1G799999 |
| MerCruiser | 496 MAG (Base Model) | 0M687083 THRU 0W059999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A066165 / 1A066166 THRU 1A350678 / 1A350679 & Up / 0M025000 THRU 0M687082 |
| MerCruiser | 496 MAG (H.O. Model) | 0M687144 THRU 0W059999 / 0W060000 THRU 0W309999 / 0W310000 THRU 0W649999 / 0W650000 THRU 1A066165 / 1A066166 THRU 1A350678 / 1A350679 & Up / 0M025000 THRU 0M687143 |
| MerCruiser | 496 MAG EC (Base Model) | 1A066166 THRU 1A350440 |
| MerCruiser | 496 MAG EC (H.O. Model) | 1A066166 THRU 1A350440 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| MerCruiser | 8M0054726, 861249A1, 881731, 8M0186195 ✓ (actual) |
| Indmar | 556102 |
At Marine Parts we know that nautical life does not allow mistakes. If you have doubts about whether this spare part is suitable for your engine, we recommend that you contact us before making the purchase, providing us with the serial number of your propeller.
