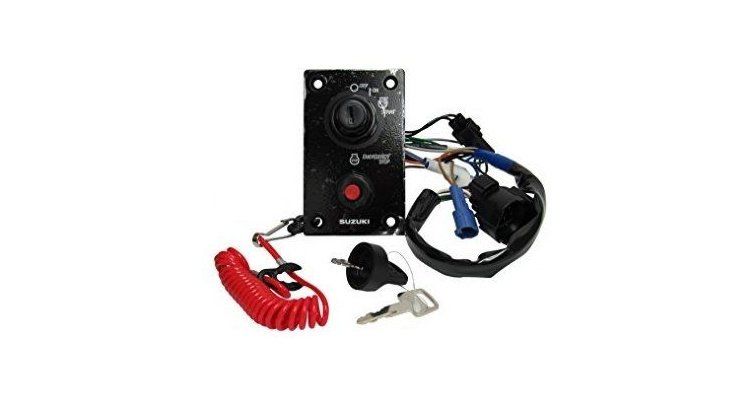

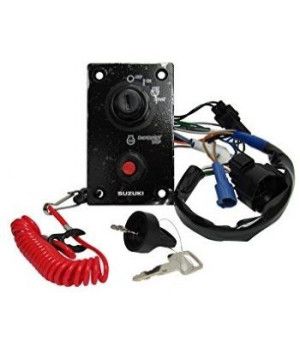

SUZUKI SINGLE IGNITION PANEL 37100-96J25

Function and technical context

The ignition panel is the component of the electrical control system responsible for managing the starting, ignition and control functions of the outboard engine. Integrated into the engine ignition circuit, it centralizes the electrical signals that allow the propeller to be activated and stopped safely. An ignition panel in poor condition can cause starting failures, unexpected ignition cuts or total loss of electrical control of the engine, situations that compromise the operation of the boat in any navigation condition. This panel corresponds to Suzuki reference 37100-96J25 and covers a wide range of DF series outboard engines, from small auxiliary thrusters to high-power engines.

When to replace this part?

The most common symptoms of a faulty ignition panel include difficulty or inability to start, intermittent ignition, sudden engine shutdowns without apparent cause, or erratic response to stop switch commands. It is recommended to inspect the panel at each seasonal inspection, paying special attention to the integrity of the connectors, the absence of corrosion on the terminals and the condition of the associated wiring. Replacing the ignition panel preventively at the first signs of malfunction avoids being left without propulsion at sea and prevents secondary damage to the engine's electrical system.
