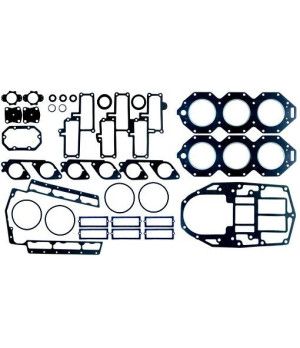

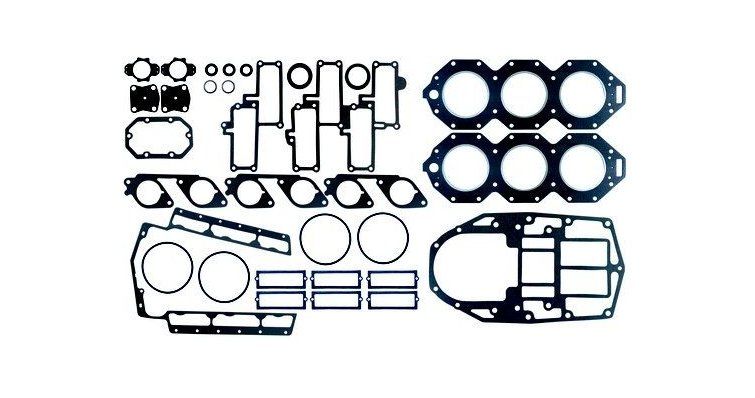

ENGINE GASKET KIT 436891

Function and Technical Context

The engine gasket kit includes all the sealing components necessary to ensure a tight seal between the various surfaces and internal passages of the engine block. In 90° V6 outboard engines with the Loopcharge system—such as the 185 and 225 hp models in the Johnson/Evinrude range—the gaskets work simultaneously in the water cooling, oil lubrication, and combustion chamber circuits, sealing the cylinder head covers, the timing cover, and the exhaust cover. A failure in any of these gaskets can cause fluids (water and oil) to mix, loss of compression in the cylinders, or exhaust gas leakage into the engine block, with serious consequences for the integrity of the engine and the safety of the boat.

When should this gasket kit be replaced?

The most common symptoms indicating deterioration of engine gaskets in V6 outboard motors are: the presence of whitish foam in the oil (indicating mixing with water), white or bluish smoke from the exhaust, progressive loss of compression detected during a pressure gauge test, or moisture marks around the cylinder head covers. It is recommended to check the condition of the gaskets every time the cylinder head is removed or during a seasonal overhaul, and to always replace them as a preventive measure whenever the engine is opened, since reusing compressed gaskets compromises the seal even if they appear to be in good condition. Replacing the complete kit at the appropriate time prevents more extensive repairs—such as cylinder head machining or replacement of water-damaged pistons—which significantly increase the cost of the repair.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer Part Numbers
