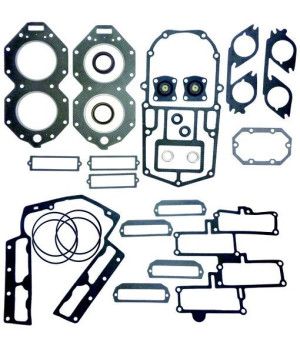

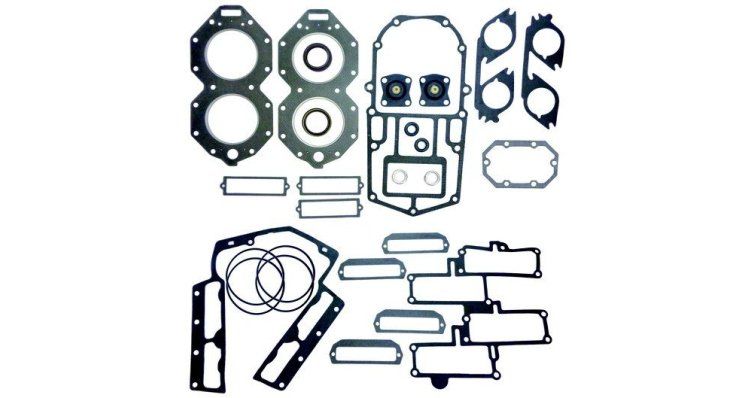

ENGINE GASKET KIT 432570

REC432570
€98.74
Tax included
ENGINE GASKET KIT 432570 REC432570. for Johnson. 140 HP. JOHNSON EVINRUDE: 120 - 140 HP 90º V4 Loopcharged (1988-99).
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Friday 14 August and Monday 17 August with Correos Express

Description

Function and Technical Context

The engine gasket kit includes all the sealing parts necessary to maintain a tight seal between the different sections of the engine: cylinder head, block, intake and exhaust manifolds, and valve cover, among other critical areas. These gaskets work simultaneously in the lubrication, cooling, and combustion systems of Johnson and Evinrude 120-140 hp outboard engines with a 90° V4 configuration and loop-charged system, manufactured between 1988 and 1999. Their function is to prevent combustion gases, oil, and coolant from mixing with each other or escaping to the outside, ensuring proper compression pressure and the mechanical integrity of the assembly. A failure in any of these gaskets can cause loss of compression, water ingress into the cylinder, lubricant contamination, or severe engine overheating, with the consequent risk of serious damage.

When should this part be replaced?

The most common symptoms of wear or failure of engine gaskets in V4 outboard motors are: white or bluish smoke from the exhaust, bubbles in the cooling system, loss of compression detected during cylinder testing, high oil level with a milky appearance, or excessive coolant consumption. It is recommended to inspect and replace the complete gasket kit whenever the cylinder head or block is opened, as well as during every major maintenance service—generally every 300–500 hours of use or when the engine has been in service for more than five years in saltwater conditions. Replacing the gasket kit as a preventive measure during a scheduled service prevents breakdowns while underway and significantly reduces the total cost of repairs.

Compatible Johnson/Evinrude Engines

SeriesModels
BE130BE130TLECE 1998, BE130TLEDM 1996, BE130TLEUB 1997
BJ130BJ130PLEED 1999, BJ130PLSSS Elec. Start, TNT, 20 IN. shaft 2000, BJ130PXEED 1999, BJ130PXSSS Elec. Start, TNT, 25 IN. shaft 2000, BJ130TLECE 1998, BJ130TLEDM 1996, BJ130TLEUB 1997
BJ135BJ135PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ135VXSIF elec start, TNT, 25 in shaft, wht, n/a usa 2001
E120E120TLCCA 1988, E120TLCEM 1989, E120TLEIE 1991, E120TLEND 1992, E120TLERC 1994, E120TLERK 1994, E120TLESB 1990, E120TLETF 1993, E120TLETS 1993, E120TXARC 1994, E120TXARK 1994, E120TXATF 1993, E120TXATS 1993, E120TXCCA 1988, E120TXCEM 1989, E120TXEIE 1991, E120TXEND 1992, E120TXERC 1994, E120TXERK 1994, E120TXESB 1990, E120TXETF 1993, E120TXETS 1993
E125E125ESXENR 1992, E125ESXERK 1994, E125ESXESS 1990, E125ESXETA 1993, E125ESXETF 1993, E125ESXW 1989, E125WTPLE 1995
E130E130CXAOR 1995, E130TLECE 1998, E130TLEDM 1996, E130TLEOA 1995, E130TLEUB 1997, E130TXACB 1998, E130TXADA 1996, E130TXAOR 1995, E130TXAUM 1997
E140E140CXARC 1994, E140CXARK 1994, E140CXATF 1993, E140CXATS 1993, E140CXCCS 1988, E140CXCEC 1989, E140CXEIA 1991, E140CXENM 1992, E140CXERE 1994, E140CXERK 1994, E140CXESR 1990, E140CXETB 1993, E140CXETF 1993, E140TLATC 1993, E140TLATF 1993, E140TLCCM 1988, E140TLCEB 1989, E140TLEID 1991, E140TLENS 1992, E140TLERK 1994, E140TLERR 1994, E140TLESE 1990, E140TLETC 1993, E140TLETF 1993, E140TXARC 1994, E140TXARK 1994, E140TXATF 1993, E140TXATS 1993, E140TXCCM 1988, E140TXCEB 1989, E140TXEID 1991, E140TXENS 1992, E140TXERK 1994, E140TXERR 1994, E140TXESE 1990, E140TXETC 1993, E140TXETF 1993
HE130HE130CXADA 1996, HE130CXAUM 1997, HE130TXACB 1998, HE130TXADA 1996, HE130TXAUM 1997
HJ130HJ130CXADA 1996, HJ130CXAUM 1997, HJ130TXACB 1998, HJ130TXADA 1996, HJ130TXAUM 1997
J120J120TLAEM 1989, J120TLAIE 1991, J120TLAND 1992, J120TLARC 1994, J120TLARK 1994, J120TLASB 1990, J120TLATF 1993, J120TLATS 1993, J120TLCCA 1988, J120TLCEM 1989, J120TLEIE 1991, J120TLEND 1992, J120TLERC 1994, J120TLERK 1994, J120TLESB 1990, J120TLETF 1993, J120TLETS 1993, J120TXARC 1994, J120TXARK 1994, J120TXATF 1993, J120TXATS 1993, J120TXCCA 1988, J120TXCEM 1989, J120TXEIE 1991, J120TXEND 1992, J120TXERC 1994, J120TXERK 1994, J120TXESB 1990, J120TXETF 1993, J120TXETS 1993
J125J125ESXENR 1992, J125ESXERK 1994, J125ESXESS 1990, J125ESXETA 1993, J125ESXETF 1993, J125ESXW 1989, J125WTPLE 1995
J130J130CXAOR 1995, J130PLEED 1999, J130PLSSS Elec. Start, TNT, 20 IN. shaft 2000, J130PXEED 1999, J130PXSSS Elec. Start, TNT, 25 IN. shaft 2000, J130TLECE 1998, J130TLEDM 1996, J130TLEOA 1995, J130TLEUB 1997, J130TXACB 1998, J130TXADA 1996, J130TXAOR 1995, J130TXAUM 1997, J130VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
J135J135PLSIF elec start, TNT, 20 in shaft 2001, J135VLSIF elec start, TNT, 20 in shaft, wht 2001, J135VXSIF elec start, TNT, 25 in shaft, wht 2001
J140J140CXARC 1994, J140CXARK 1994, J140CXATF 1993, J140CXATS 1993, J140CXCCS 1988, J140CXCEC 1989, J140CXEIA 1991, J140CXENM 1992, J140CXERE 1994, J140CXERK 1994, J140CXESR 1990, J140CXETB 1993, J140CXETF 1993, J140TLAEB 1989, J140TLANS 1992, J140TLARK 1994, J140TLARR 1994, J140TLASE 1990, J140TLATC 1993, J140TLATF 1993, J140TLCCM 1988, J140TLCEB 1989, J140TLEID 1991, J140TLENS 1992, J140TLERK 1994, J140TLERR 1994, J140TLESE 1990, J140TLETC 1993, J140TLETF 1993, J140TXARC 1994, J140TXARK 1994, J140TXATF 1993, J140TXATS 1993, J140TXCCM 1988, J140TXCEB 1989, J140TXEID 1991, J140TXENS 1992, J140TXERK 1994, J140TXERR 1994, J140TXESE 1990, J140TXETC 1993, J140TXETF 1993
RJ130RJ130PLSSS Elec. Start, TNT, 20 IN. shaft 2000, RJ130PXSSS Elec. Start, TNT, 25 IN. shaft 2000, RJ130VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
RJ135RJ135PLSIF elec start, TNT, 20 in shaft 2001, RJ135VXSIF elec start, TNT, 20 in shaft, wht 2001
SE125SE125RWYJ 1997, SE125RWYN 1998, SE125RWYV 1996, SE125WTPLJ 1997, SE125WTPLN 1998, SE125WTPLV 1996, SE125WTPXJ 1997, SE125WTPXN 1998, SE125WTPXV 1996
SJ125SJ125RWYJ 1997, SJ125RWYN 1998, SJ125RWYV 1996, SJ125WTPLJ 1997, SJ125WTPLN 1998, SJ125WTPLV 1996, SJ125WTPXJ 1997, SJ125WTPXN 1998, SJ125WTPXV 1996
SJ130SJ130CXADA 1996, SJ130TLEDM 1996, SJ130TXADA 1996
TE120TE120TXCEM 1989
TJ120TJ120TXCEM 1989
VE120VE120TLEIE 1991, VE120TLEND 1992, VE120TLESB 1990, VE120TLETF 1993, VE120TLETS 1993, VE120TXEIE 1991, VE120TXEND 1992, VE120TXESB 1990, VE120TXETF 1993, VE120TXETS 1993
VE140VE140TLEID 1991, VE140TLENS 1992, VE140TLESE 1990, VE140TLETC 1993, VE140TLETF 1993, VE140TXEID 1991, VE140TXENS 1992, VE140TXESE 1990, VE140TXETC 1993, VE140TXETF 1993
VJ120VJ120TLAIE 1991, VJ120TLAND 1992, VJ120TLASB 1990, VJ120TLATF 1993, VJ120TLATS 1993, VJ120TLEIE 1991, VJ120TLEND 1992, VJ120TLESB 1990, VJ120TLETF 1993, VJ120TLETS 1993, VJ120TXEIE 1991, VJ120TXEND 1992, VJ120TXESB 1990, VJ120TXETF 1993, VJ120TXETS 1993
VJ140VJ140TLAID 1991, VJ140TLANS 1992, VJ140TLASE 1990, VJ140TLEID 1991, VJ140TLENS 1992, VJ140TLESE 1990, VJ140TLETC 1993, VJ140TLETF 1993, VJ140TXEID 1991, VJ140TXENS 1992, VJ140TXESE 1990, VJ140TXETC 1993, VJ140TXETF 1993



Equivalent Manufacturer Part Numbers

Manufacturer/BrandReference/Part Number
Mercury/Mariner/Mercruiser878919
OMC0432570, 432570
