ENGINE GASKET KIT 393433 REC439083. for Johnson. 60 hp. JOHNSON EVINRUDE: 40 - 60 HP (2 CYL) Loopcharged (1998-01).
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.
ENGINE GASKET KIT 393433
REC439083
€143.65
Tax included
ENGINE GASKET KIT 393433 REC439083. for Johnson. 60 hp. JOHNSON EVINRUDE: 40 - 60 HP (2 CYL) Loopcharged (1998-01).
Description
Function and Technical Context

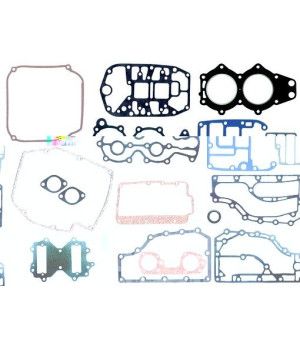

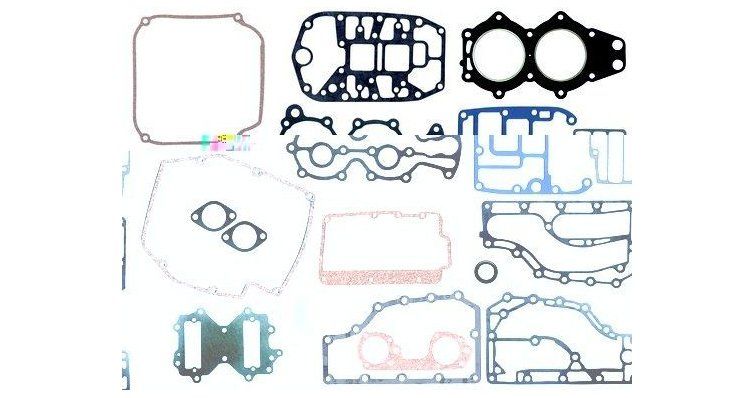

The engine gasket kit includes all the sealing components required for the powerhead of Johnson and Evinrude 2-cylinder outboard motors with Loopcharged technology, hermetically sealing the joint surfaces between the cylinder head, the block, and the crankshaft covers. These gaskets operate simultaneously in the combustion system and the water cooling circuit, acting as a physical barrier between circuits subjected to completely different pressures, temperatures, and fluids. If any of them lose integrity, combustion gases can escape to the outside or into the cooling circuit, water can infiltrate the cylinders, and the lubricant can become contaminated, severely compromising the engine’s performance and service life. Part number 0439083 is the replacement for the previous part number 0393433 and covers 40 to 60 HP engines manufactured between 1998 and 2001, ensuring the same gasket coverage as the set of parts it replaces.
When should this part be replaced?
The clearest signs that the powerhead gasket set needs replacement are the appearance of white or bluish smoke from the exhaust, a noticeable drop in compression during the cylinder test, the presence of bubbles in the cooling system, or obvious signs of water-oil mixing in the crankcase. In outboard motors, it is recommended to inspect the condition of the gaskets every time the cylinder head is opened and, as a preventive measure, whenever 300–400 hours of operation are exceeded or after an episode of severe overheating. Replacing the complete kit during any work on the powerhead prevents the need to disassemble the engine again shortly thereafter and ensures complete sealing of all joint surfaces from the first start-up.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| AM55 | AM55RSLD 1999 |
| BE40 | BE40EECR 1998, BE40ELECR 1998, BE40TLECR 1998 |
| BE50 | BE50ESECC 1998, BE50RLECR 1998, BE50TLECR 1998, BE50TSLECC 1998 |
| BJ40 | BJ40EECR 1998, BJ40EEEA 1999, BJ40ELECR 1998, BJ40ELEEA 1999, BJ40ELSIF elec start, 20 in shaft, n/a usa 2001, BJ40ELSSM Elec. Start, 20 IN. shaft, N/A USA 2000, BJ40ESIF elec start, 15 in shaft, n/a usa 2001, BJ40ESSM Elec. Start, 15 IN. shaft, N/A USA 2000, BJ40PLEEA 1999, BJ40PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ40PLSSM Elec. Start, TNT, 15 IN. shaft, N/A USA 2000, BJ40TLECR 1998 |
| BJ50 | BJ50EEER 1999, BJ50ELEER 1999, BJ50ELSIF elec start, 20 in shaft, n/a usa 2001, BJ50ELSSA Elec. Start, 20 IN. shaft, N/A USA 2000, BJ50ESECC 1998, BJ50ESIF elec start, 15 in shaft, n/a usa 2001, BJ50ESSA Elec Start, 15 IN. shaft, N/A USA 2000, BJ50PLEEA 1999, BJ50PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ50PLSSM Elec. Start, TNT, Tiller, 20 IN. shaft, N/A USA 2000, BJ50RLECR 1998, BJ50RLEEA 1999, BJ50RLSIF elec start, 20 in shaft, n/a usa 2001, BJ50RLSSM Rope Start, 20 IN. shaft, N/A USA 2000, BJ50TLECR 1998, BJ50TSLECC 1998 |
| E40 | E40AELCCS 1988, E40ARLCCS 1988, E40ATLCCS 1988, E40ECCS 1988, E40ECEC 1989, E40EEIA 1991, E40EENJ 1992, E40EENM 1992, E40EERE 1994, E40EESR 1990, E40EETB 1993, E40ELCCS 1988, E40ELCEC 1989, E40ELECR 1998, E40ELEIA 1991, E40ELENJ 1992, E40ELENM 1992, E40ELERE 1994, E40ELESR 1990, E40ELETB 1993, E40JRECA 1998, E40RCCS 1988, E40RCEC 1989, E40RECR 1998, E40REIA 1991, E40RENM 1992, E40RERE 1994, E40RESR 1990, E40RETB 1993, E40RLCCS 1988, E40RLCEC 1989, E40RLECR 1998, E40RLEIA 1991, E40RLENM 1992, E40RLERE 1994, E40RLESR 1990, E40RLETB 1993, E40TECCS 1988, E40TECEC 1989, E40TEECR 1998, E40TEEIA 1991, E40TEENJ 1992, E40TEENM 1992, E40TEERE 1994, E40TEESR 1990, E40TEETB 1993, E40TELCCS 1988, E40TELCEC 1989, E40TELECR 1998, E40TELEIA 1991, E40TELENJ 1992, E40TELENM 1992, E40TELERE 1994, E40TELESR 1990, E40TELETB 1993, E40TLCCS 1988, E40TLCEC 1989, E40TLECR 1998, E40TLEIA 1991, E40TLENJ 1992, E40TLENM 1992, E40TLERE 1994, E40TLESR 1990, E40TLETB 1993, E40TLETF 1993, E40TTLCCS 1988, E40TTLCEC 1989, E40TTLECR 1998, E40TTLEIA 1991, E40TTLENM 1992, E40TTLERE 1994, E40TTLESR 1990, E40TTLETB 1993, E40TTLETF 1993, E40WREES 1999, E40WRLEES 1999, E40WRLSIR commercial, rope start, 20 in shaft 2001, E40WRLSSC Commercial, Rope Start, Tiller, 15 IN. shaft 2000, E40WRSIR commercial, rope start, 15 in shaft 2001, E40WRSSC Commercial, Rope Start, Tiller, 15 IN. shaft 2000, E40WRYEES 1999, E40WRYSIR commercial, rope start, 25 in shaft 2001, E40WRYSSC Commercial, Rope Start, Tiller, 22.5 IN. shaft 2000 |
| E45 | E45RCCDS 1986, E45RCCUC 1987, E45RCE 1989, E45RCEIA 1991, E45RCENM 1992, E45RCERE 1994, E45RCESR 1990, E45RCETB 1993, E45RCLCDS 1986, E45RCLCUC 1987, E45RCLE 1989, E45RCLEIA 1991, E45RCLENM 1992, E45RCLERE 1994, E45RCLESR 1990, E45RCLETB 1993, E45WMLE 1989, E45WMLEIA 1991, E45WMLENM 1992, E45WMLESR 1990 |
| E48 | E48ESLCER 1989, E48ESLEIM 1991, E48ESLENB 1992, E48ESLERD 1994, E48ESLESA 1990, E48ESLETE 1993 |
| E50 | E50BECCS 1988, E50BECEC 1989, E50BEEIA 1991, E50BEENJ 1992, E50BEENM 1992, E50BEERE 1994, E50BEESR 1990, E50BEETB 1993, E50BELCCS 1988, E50BELCEC 1989, E50BELEIA 1991, E50BELENJ 1992, E50BELENM 1992, E50BELERE 1994, E50BELESR 1990, E50BELETB 1993, E50ESLECC 1998, E50JEIA 1991, E50JENJ 1992, E50JENM 1992, E50JERE 1994, E50JETB 1993, E50RNLIA 1990, E50RNLIB 1992, E50TELCCS 1988, E50TELCEC 1989, E50TELEIA 1991, E50TELENM 1992, E50TELERE 1994, E50TELESR 1990, E50TELETB 1993, E50TLCCS 1988, E50TLCEC 1989, E50TLECR 1998, E50TLEIA 1991, E50TLENJ 1992, E50TLENM 1992, E50TLERE 1994, E50TLESR 1990, E50TLETB 1993, E50TLETF 1993, E50TSLECC 1998 |
| E55 | E55RSLN 1983, E55RSLN-2 1983, E55RSN 1983, E55RSN-2 1983, E55RSYN 1983, E55RSYN-2 1983, E55RWLCDC 1986, E55RWLCOS 1985, E55RWLCRD 1984, E55RWLCUC 1987, E55RWLE 1989, E55RWLEIA 1991, E55RWLENM 1992, E55RWLERE 1994, E55RWLESR 1990, E55RWLETB 1993, E55WREES 1999, E55WRLEES 1999, E55WRLSIR commercial, rope start, 20 in shaft 2001, E55WRLSSC Commercial, Rope Start, Tiller, 20 IN. shaft 2000, E55WRSIR commercial, rope start, 15 in shaft 2001, E55WRSSC Commercial, Rope Start, Tiller, 15 IN. shaft 2000, E55WRYEES 1999, E55WRYSIR commercial, rope start, 25 in shaft 2001, E55WRYSSC Commercial, Rope Start, Tiller, 22.5 IN. shaft 2000 |
| J25 | J25JRTSSS Jet Drive, Rope Start, Tiller, 15 IN. shaft 2000 |
| J30 | J30JREEM 1999, J30JRSIE jet drive, rope start, 15 in shaft 2001, J30JRSSB Jet Drive, Rope Start, Tiller, 15 IN. shaft 2000 |
| J40 | J40AELCCS 1988, J40ARLCCS 1988, J40ATLCCS 1988, J40ECCS 1988, J40ECEC 1989, J40EEIA 1991, J40EENJ 1992, J40EENM 1992, J40EERE 1994, J40EESR 1990, J40EETB 1993, J40ELCCS 1988, J40ELCEC 1989, J40ELECR 1998, J40ELEIA 1991, J40ELENJ 1992, J40ELENM 1992, J40ELERE 1994, J40ELESR 1990, J40ELETB 1993, J40JRECA 1998, J40PLEEA 1999, J40PLSIF elec start, TNT, 20 in shaft 2001, J40PLSNF Oil Injection, 20 in., White, Remote, Elec, TNT, 2002, J40PLSOC, J40PLSRS, J40PLSSM Elec. Start, TNT, 20 IN. shaft 2000, J40PLSTD, J40RCCS 1988, J40RCEC 1989, J40RECR 1998, J40REEA 1999, J40REIA 1991, J40RENM 1992, J40RERE 1994, J40RESR 1990, J40RETB 1993, J40RLCCS 1988, J40RLCEC 1989, J40RLECR 1998, J40RLEEA 1999, J40RLEIA 1991, J40RLENM 1992, J40RLERE 1994, J40RLESR 1990, J40RLETB 1993, J40RLSIF rope start, 20 in shaft 2001, J40RLSNF 20 in. shaft, White, Tiller, Rope, Touch Trim 2002, J40RLSOC, J40RLSRS, J40RLSSM Rope Start, Tiller, 20 IN. shaft 2000, J40RLSTD, J40RSIF rope start, 15 in shaft 2001, J40RSNF 15 in. shaft, White, Tiller, Rope, Touch Trim 2002, J40RSOC, J40RSRS, J40RSSM Rope Start, Tiller, 15 IN. shaft 2000, J40RSTD, J40TECCS 1988, J40TECEC 1989, J40TEECR 1998, J40TEEIA 1991, J40TEENJ 1992, J40TEENM 1992, J40TEERE 1994, J40TEESR 1990, J40TEETB 1993, J40TELCCS 1988, J40TELCEC 1989, J40TELECR 1998, J40TELEIA 1991, J40TELENJ 1992, J40TELENM 1992, J40TELERE 1994, J40TELESR 1990, J40TELETB 1993, J40TLCCS 1988, J40TLCEC 1989, J40TLECR 1998, J40TLEIA 1991, J40TLENJ 1992, J40TLENM 1992, J40TLERE 1994, J40TLESR 1990, J40TLETB 1993, J40TLETF 1993, J40TPLEEA 1999, J40TPLSIF elec start, tiller, TNT, 20 in shaft 2001, J40TPLSSM Elec. Start, TNT, Tiller, 20 IN. shaft 2000, J40TTLCCS 1988, J40TTLCEC 1989, J40TTLECR 1998, J40TTLEIA 1991, J40TTLENM 1992, J40TTLERE 1994, J40TTLESR 1990, J40TTLETB 1993, J40TTLETF 1993, J40WREES 1999, J40WRLEES 1999, J40WRLSIR commercial, rope start, 20 in shaft 2001, J40WRLSSC Commercial, Rope Start, Tiller, 20 IN. shaft 2000, J40WRSIR commercial, rope start, 15 in shaft 2001, J40WRSSC Commercial, Rope Start, Tiller, 15 IN. shaft 2000, J40WRYEES 1999, J40WRYSIR commercial, rope start, 25 in shaft 2001, J40WRYSSC Commercial, Rope Start, Tiller, 22.5 IN. shaft 2000 |
| J45 | J45RCCDS 1986, J45RCCUC 1987, J45RCE 1989, J45RCEIA 1991, J45RCENM 1992, J45RCERE 1994, J45RCESR 1990, J45RCETB 1993, J45RCLCDS 1986, J45RCLCUC 1987, J45RCLE 1989, J45RCLEIA 1991, J45RCLENM 1992, J45RCLERE 1994, J45RCLESR 1990, J45RCLETB 1993, J45WMLE 1989, J45WMLEIA 1991, J45WMLENM 1992, J45WMLESR 1990 |
| J48 | J48ESLCER 1989, J48ESLEIM 1991, J48ESLENB 1992, J48ESLERD 1994, J48ESLESA 1990, J48ESLETE 1993 |
| J50 | J50BECCS 1988, J50BECEC 1989, J50BEEIA 1991, J50BEENJ 1992, J50BEENM 1992, J50BEERE 1994, J50BEESR 1990, J50BEETB 1993, J50BELCCS 1988, J50BELCEC 1989, J50BELEIA 1991, J50BELENJ 1992, J50BELENM 1992, J50BELERE 1994, J50BELESR 1990, J50BELETB 1993, J50ELEER 1999, J50ELSIF elec start, 20 in shaft 2001, J50ELSSA Elec. Start, Tiller, 15 IN. shaft 2000, J50ESLECC 1998, J50JEIA 1991, J50JENJ 1992, J50JENM 1992, J50JERE 1994, J50JETB 1993, J50PLEEA 1999, J50PLSIF elec start, TNT, 20 in shaft 2001, J50PLSNF Oil Injection, 20 in., White, Remote, Elec, TNT, 2002, J50PLSOC, J50PLSRS, J50PLSSM Elec. Start, TNT, Tiller, 20 IN. shaft 2000, J50PLSTD, J50TELCCS 1988, J50TELCEC 1989, J50TELEIA 1991, J50TELENM 1992, J50TELERE 1994, J50TELESR 1990, J50TELETB 1993, J50TLCCS 1988, J50TLCEC 1989, J50TLECR 1998, J50TLEIA 1991, J50TLENJ 1992, J50TLENM 1992, J50TLERE 1994, J50TLESR 1990, J50TLETB 1993, J50TLETF 1993, J50TSLECC 1998 |
| J55 | J55APRL, J55APRLSOM, J55APRLSRA, J55APRLSRG, J55ML, J55MLSOR, J55MLSRC, J55MLSRG, J55RSLN 1983, J55RSLN-2 1983, J55RSN 1983, J55RSN-2 1983, J55RSYN 1983, J55RSYN-2 1983, J55RWLCDC 1986, J55RWLCOS 1985, J55RWLCRD 1984, J55RWLCUC 1987, J55RWLE 1989, J55RWLEIA 1991, J55RWLENM 1992, J55RWLERE 1994, J55RWLESR 1990, J55RWLETB 1993, J55WREES 1999, J55WRLEES 1999, J55WRLSIR commercial, rope start, 20 in shaft 2001, J55WRLSOE, J55WRLSRB, J55WRLSRG, J55WRLSSC Commercial, Rope Start, Tiller, 20 IN. shaft 2000, J55WRLSTM, J55WRSIR commercial, rope start, 15 in shaft 2001, J55WRSSC Commercial, Rope Start, Tiller, 15 IN. shaft 2000, J55WRYEES 1999, J55WRYSIR commercial, rope start, 25 in shaft 2001, J55WRYSOB, J55WRYSRM, J55WRYSSC Commercial, Rope Start, Tiller, 22.5 IN. shaft 2000 |
| M55 | M55RWLR 1988 |
| R45 | R45RCLR 1988, R45RCR 1988 |
| R55 | R55RWLR 1988 |
| RJ50 | RJ50ELSIF elec start, TNT, 20 in shaft 2001 |
| S45 | S45RCLR 1988, S45RCR 1988 |
| SE40 | SE40RPLT2 1998, SE40RPT2 1998, SE40RPYT2 1998, SE40RSLR 1998 |
| SE55 | SE55RSLM2 1998, SE55RSM2 1998, SE55RSYM2 1998 |
| SJ40 | SJ40RPLT2 1998, SJ40RPT2 1998, SJ40RPYT2 1998, SJ40RSLR 1998 |
| SJ55 | SJ55RSLM2 1998, SJ55RSM2 1998, SJ55RSYM2 1998 |
| TE40 | TE40ELCEC 1989, TE40ELEIA 1991, TE40ELENJ 1992, TE40ELENM 1992, TE40ELESR 1990, TE40ELETB 1993, TE40TELESF 1990, TE40TELESR 1990 |
| TE48 | TE48ESLETE 1993 |
| TE50 | TE50TLCEC 1989, TE50TLESF 1989, TE50TLESF 1990, TE50TLESR 1990 |
| TJ40 | TJ40ELCEC 1989, TJ40ELEIA 1991, TJ40ELENJ 1992, TJ40ELENM 1992, TJ40ELESF 1990, TJ40ELESR 1990, TJ40ELETB 1993, TJ40TELESF 1990, TJ40TELESR 1990 |
| TJ48 | TJ48ESLETE 1993 |
| TJ50 | TJ50TLCEC 1989, TJ50TLESF 1989, TJ50TLESF 1990, TJ50TLESR 1990 |
| VE40 | VE40EEIA 1991, VE40EENJ 1992, VE40EENM 1992, VE40EESR 1990, VE40EETB 1993, VE40ELEIA 1991, VE40ELENJ 1992, VE40ELENM 1992, VE40ELESR 1990, VE40ELETB 1993, VE40TELEIA 1991, VE40TELENJ 1992, VE40TELENM 1992, VE40TELESR 1990, VE40TELETB 1993, VE40TLEIA 1991, VE40TLENJ 1992, VE40TLENM 1992, VE40TLESR 1990, VE40TLETB 1993, VE40TLETF 1993 |
| VE48 | VE48ESLCER 1989, VE48ESLENB 1992, VE48ESLESA 1990, VE48ESLETE 1993 |
| VE50 | VE50BEEIA 1991, VE50BEENJ 1992, VE50BEENM 1992, VE50BEESR 1990, VE50BEETB 1993, VE50BELEIA 1991, VE50BELENJ 1992, VE50BELENM 1992, VE50BELESR 1990, VE50BELETB 1993, VE50TELENM 1992, VE50TLEIA 1991, VE50TLENJ 1992, VE50TLENM 1992, VE50TLESR 1990, VE50TLETB 1993, VE50TLETF 1993 |
| VJ40 | VJ40EEIA 1991, VJ40EENJ 1992, VJ40EENM 1992, VJ40EESR 1990, VJ40EETB 1993, VJ40ELEIA 1991, VJ40ELENJ 1992, VJ40ELENM 1992, VJ40ELESR 1990, VJ40ELETB 1993, VJ40TELEIA 1991, VJ40TELENJ 1992, VJ40TELENM 1992, VJ40TELESR 1990, VJ40TELETB 1993, VJ40TLEIA 1991, VJ40TLENJ 1992, VJ40TLENM 1992, VJ40TLESR 1990, VJ40TLETB 1993, VJ40TLETF 1993 |
| VJ48 | VJ48ESLCER 1989, VJ48ESLENB 1992, VJ48ESLESA 1990, VJ48ESLETE 1993 |
| VJ50 | VJ50BEEIA 1991, VJ50BEENJ 1992, VJ50BEENM 1992, VJ50BEESR 1990, VJ50BEETB 1993, VJ50BELEIA 1991, VJ50BELENJ 1992, VJ50BELENM 1992, VJ50BELESR 1990, VJ50BELETB 1993, VJ50TELENM 1992, VJ50TLEIA 1991, VJ50TLENJ 1992, VJ50TLENM 1992, VJ50TLESR 1990, VJ50TLETB 1993, VJ50TLETF 1993 |
| X50 | X50ESLECC 1998 |
Equivalent Manufacturer Part Numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/Mariner/Mercruiser | 802110 |
| OMC | 0439083, 393433, 439083 |
Related Johnson/Evinrude Spare Parts
If you are maintaining or repairing your Johnson/Evinrude engine, these spare parts might also interest you:
- Cojinete 398529Category: Engine Bearings Johnson Evinrude
- Kit Juntas Carburador 396701Category: Carburettor Kits Johnson Evinrude
- Chaveta 344470Category: J/E Lower Drive 25-35 HP
- Termostato Johnson 436195 878904Category: Thermostats and Gaskets Johnson Evinrude
- Junta Culata 335359Category: 2-stroke Cylinder Head Gaskets Johnson Evinrude
Product Details
REC439083
