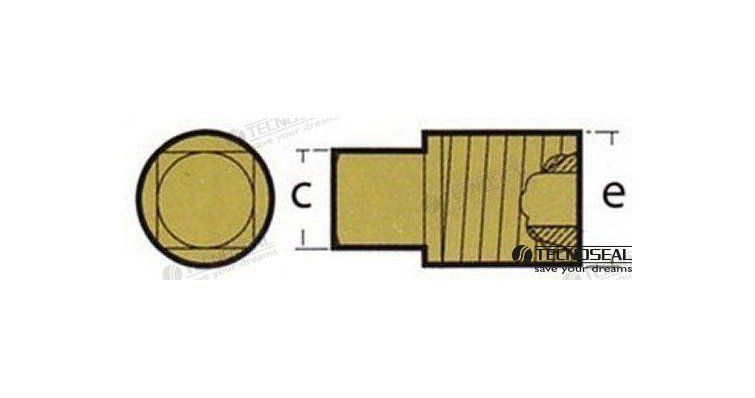

GM COOLING ANODE PLUG

Function and technical context

The General Motors engine cooling circuit anode plug is a sacrificial component that is installed in the engine block or water cooling system passages to protect internal metal surfaces from galvanic corrosion. Being made of an alloy with a lower electrochemical potential than the aluminum or cast iron of the block, it acts as a sacrificial electrode: it corrodes itself before the structural parts of the engine do so. Proper operation is essential to preserve the integrity of cooling channels, water-cooled exhaust manifolds and cylinder liners, especially in salt or brackish water environments where galvanic corrosion is significantly accelerated. A depleted or missing cooling anode can lead to pitting in the block, clogging of water passages and, ultimately, overheating of the engine or entry of water into the lubrication circuit.

When to replace this part?

Symptoms of a depleted cooling anode include the presence of visible pitting or erosion in the metal areas adjacent to the plug housing, loss of coolant due to micro-leaks in the block, or simply visual confirmation that the anode has lost more than 50% of its mass. For engines operating in salt water, it is recommended that the cooling anodes be inspected and replaced at the beginning of each boating season or every 200-300 hours of operation, whichever comes first. Replacing this anode plug preventively is a low-cost intervention that prevents serious internal damage to the engine block, the repair of which can be considerably more expensive and leave the boat out of service for long periods.

Compatibility
