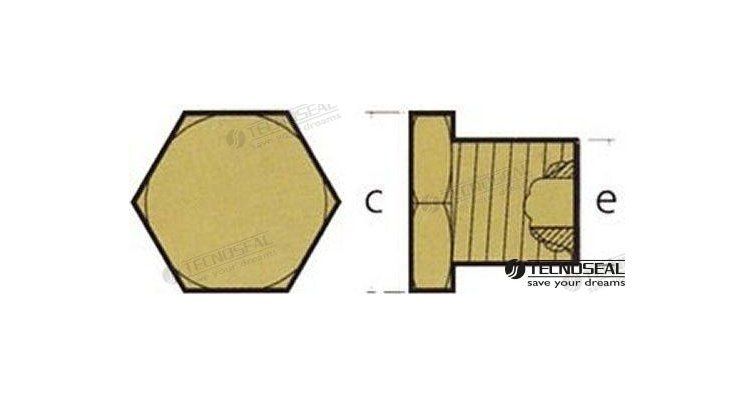

CUMMINS ANODE PLUG

Function and technical context

The anode plug for Cummins marine engines is a cathodic protection element installed in the block or in the engine cooling circuits, whose mission is to electrochemically sacrifice itself to protect internal metal surfaces from galvanic corrosion. It acts as a sacrificial anode in cooling water passage areas, preventing the corrosive attack from affecting structural components of the engine such as the liners, the block or the heat exchangers. Its correct presence in the circuit is essential in salt or brackish water environments, where electrolytic activity is especially aggressive. Reference TEN02044TP identifies this specific anode plug for Cummins marine engines, ensuring the proper fit and alloy for this type of application.

When to replace this part?

An anode plug should be inspected at the beginning and end of each boating season; When the anode has lost more than 50% of its mass or has an irregular and highly eroded surface, its immediate replacement is essential. In waters with high electrical conductivity (marines with shore current, ports with high electrical activity) wear can be noticeably faster, so it is recommended to check the condition every 100-150 hours of operation. Replacing the anode plug preventatively is the most economical measure to avoid severe corrosion damage to the Cummins engine block, repairs that can be extremely expensive out of port.
