ANODE PLUG CATERPILLAR 3412

Function and technical context

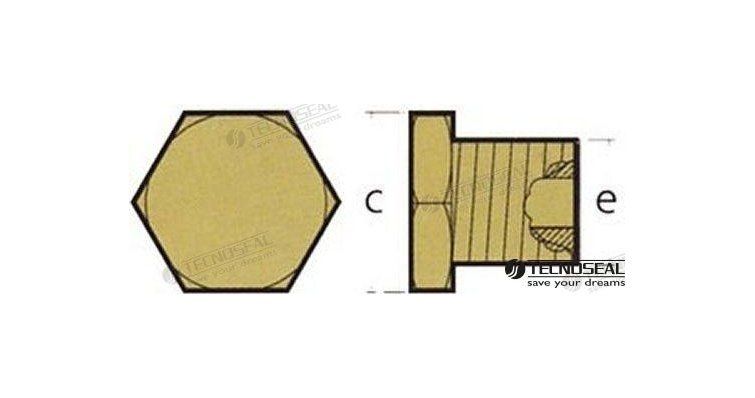

The anode plug for the Caterpillar 3412 engine is a cathodic protection element installed in the block or in the engine cooling circuits, whose mission is to sacrifice itself electrochemically to protect the internal metal surfaces against galvanic corrosion. Being made of zinc or magnesium alloy, this plug acts as a sacrificial anode in the seawater passages that run through the interior of the engine, preventing corrosion from affecting structural components of the block, the cylinder head or the heat exchanger. Its presence is critical in nautical installations where the engine works with salt or brackish water as a cooling fluid, since without active cathodic protection, electrolytic corrosion can irreversibly deteriorate the internal cooling galleries and cause leaks, overheating or even rendering the engine unusable. Reference TEN02028TP identifies this threaded anode plug, designed specifically to fit the cathodic protection points of the Caterpillar 3412 block.

When to replace this part?

Sacrificial anodes in plug format must be inspected at the beginning of each nautical season and replaced when they have lost more than 50% of their mass, have a completely oxidized surface or have fragmented, since in that state they no longer offer effective protection. For motors operating in water with high salinity or high galvanic currents—for example, vessels moored in ports with heavy electrical traffic—the useful life may be reduced to a single season or even less. Replacing the anode plug preventively at each annual maintenance is the most economical measure to avoid serious internal damage to the Caterpillar 3412 block, which is enormously expensive to repair.

Compatibility
