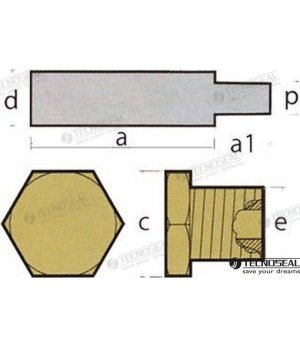

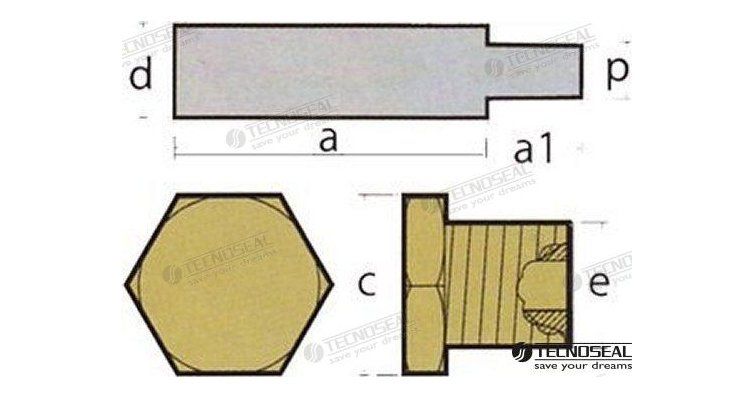

FORD ANODE W/PLUG

Function and technical context

The sacrificial anode with cap for Ford engines is a cathodic protection component that is installed directly in the block or in strategic areas of the marine engine, acting as a sacrificial element against galvanic corrosion. It works within the cooling system and metal structure of the engine, preferentially ionizing to protect the aluminum, cast iron and other noble metal parts that make up the propellant. Without adequate anodic protection, galvanic corrosion silently advances on exhaust manifolds, pump housings and internal surfaces of the water circuit, causing pitting, leaks and irreversible structural deterioration. The capped design of this anode makes it easy to fit into threaded holes in the motor, ensuring reliable electrical contact and easy replacement without the need for complex disassembly.

When to replace this part?

The most obvious symptom of a depleted anode is the appearance of visible corrosion—pitting, reddish or whitish stains—on the adjacent metal surfaces it should be protecting; When the anode has consumed more than 50% of its mass, it loses protective effectiveness and must be replaced immediately. For marine engines operating in salt or brackish water it is recommended that the anodes be inspected at least once per boating season, or every 200 hours of operation, whichever comes first. Replacing the anode preventively at the beginning of each season is the most economical measure to avoid major repairs to the engine, since the cost of an anode is minimal compared to replacing an exhaust manifold or a corroded block.
