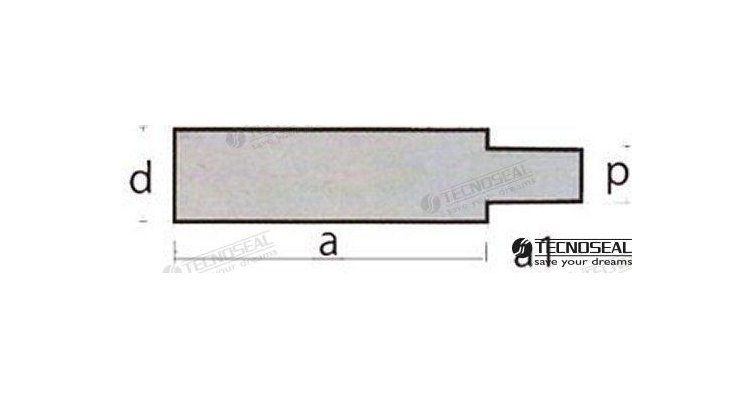

CATERPILLAR ANODE SERIES 3412

Function and technical context

Sacrificial anodes are the central element of cathodic protection in marine engines and propulsion assemblies: they corrode in a controlled manner to preserve the noblest metal parts of the engine against the electrochemical attack of salt or brackish water. In Caterpillar Series 3412 engines, these components work to protect blocks, cylinder liners, heat exchangers and internal cooling circuits from galvanic corrosion. Without effective cathodic protection, the aluminum alloys and steel surfaces exposed to the cooling circuit deteriorate rapidly, compromising the tightness of the motor and the thermal performance of the assembly.

When to replace this part?

The clearest symptom that an anode has completed its useful cycle is the visible reduction in its mass: when the anode has lost approximately half of its volume it must be replaced, since it no longer offers sufficient protection. In stationary marine engines such as those of the 3412 Series, the condition of the anodes must be checked at least once a season or every 200-300 hours of operation, always anticipating the emptying of the cooling circuit. Replacing the anode preventively before it is completely exhausted avoids irreversible damage due to corrosion in components of much higher cost and prevents unplanned stops in operation.
