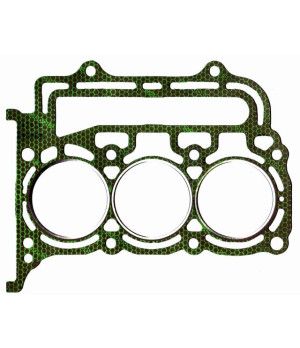

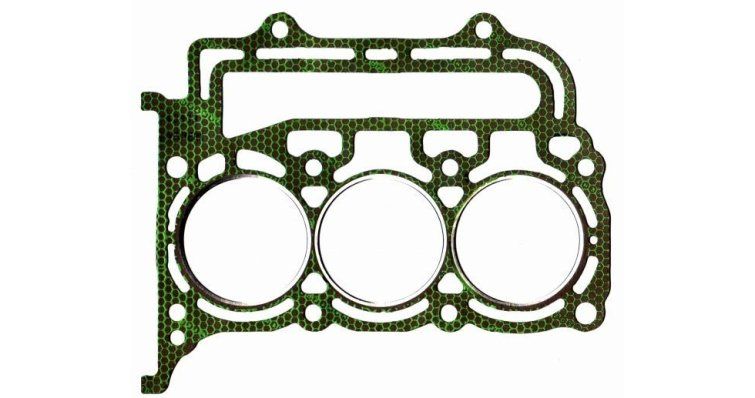

SUZUKI CYLINDER HEAD GASKET 11141-87J00

Function and technical context

The head gasket is the sealing element that seals the joint between the engine block and the cylinder head, guaranteeing that the combustion gases, coolant and oil remain in their respective circuits without mixing or leaks. It works at the heart of the four-stroke engine, continuously supporting the pressures and temperatures generated in each combustion cycle. On Suzuki DF40 and DF50 outboards, this part is critical to maintaining correct compression in each cylinder and ensuring the integrity of the seawater cooling circuits. If the gasket loses its tightness, the engine may experience loss of compression, mixing of coolant with oil or severe overheating, situations that lead to serious damage to the engine assembly.

When to replace this part?

The most common symptoms of a deteriorated head gasket include white smoke from the exhaust (coolant burned in the chamber), progressive loss of power due to compression drop, abnormal consumption of cooling water or the appearance of a whitish emulsion in the crankcase oil. It is recommended to inspect the head gasket whenever a thorough engine inspection is carried out, after episodes of overheating or when the working hours indicated by the manufacturer for cylinder head disassembly are exceeded. Replacing it preventively during scheduled maintenance avoids high-cost breakdowns in compromised navigation situations.
