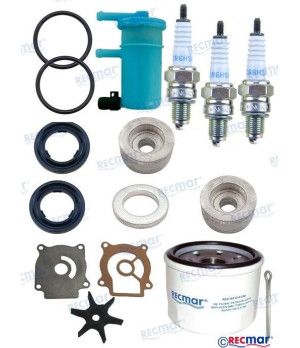

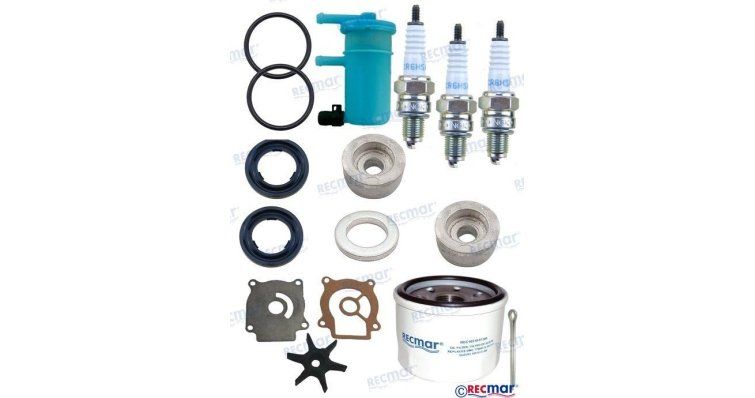

SUZUKI MAINTENANCE KIT 17400-87820

Function and technical context

This comprehensive maintenance kit brings together in a single set all the consumable and wear components necessary to perform the complete periodic service of the Suzuki DF40 and DF50 outboard engines of the 2006-2010 series. It groups together parts from different engine systems: the water cooling circuit (complete water pump kit), the lubrication system (oil filter and drain plug washer), the ignition system (spark plug), the fuel supply system (fuel filter), as well as sealing and anti-corrosion elements (gasket, O-ring, anode and locking pin). Having all these components in a single kit ensures that no critical element is left unrenewed during the overhaul, reducing the risk of breakdowns resulting from partial maintenance. Replacing the water pump impeller and the anode, in particular, is crucial to preserving the integrity of the engine against overheating and galvanic corrosion in a marine environment.

When to replace this part?

It is recommended that this kit be fully serviced each season or every 100 hours of operation, following Suzuki maintenance specifications for the DF40 and DF50 models. Symptoms that indicate an urgent need for intervention include: elevated engine temperature or overheating alarm (deteriorated water pump impeller), uneven oil pressure or contaminated oil (clogged oil filter), difficult starting or high fuel consumption (bad spark plug or fuel filter), and visible signs of corrosion on the block or propeller (depleted anode). Acting preventively with the complete kit at the beginning of each season avoids emergency interventions in navigation and significantly prolongs the useful life of the engine.

Engine Compatibility
