Ignition module for ignition systems of Johnson and Evinrude outboard motors. Compatible with E20, E25, E28, E30, E35, E40, E45, E48, E50, E55 families and their J equivalents, covering over 410 engine configurations.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

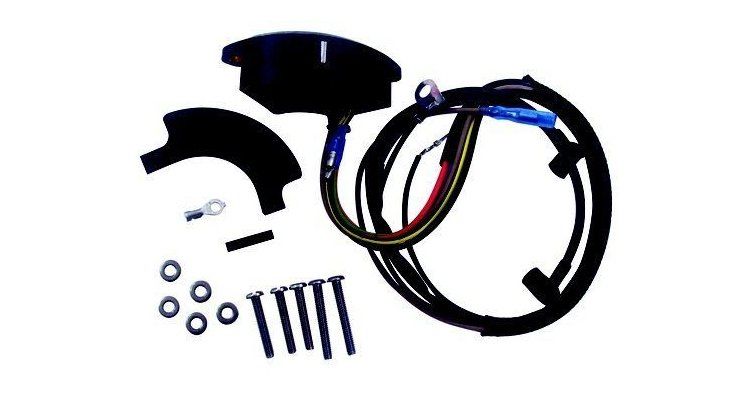

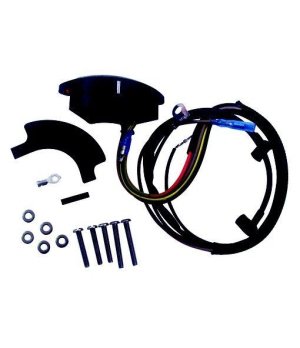

Black Box 583896 300-26085
REC300-26085
€193.24
Tax included
Ignition module for ignition systems of Johnson and Evinrude outboard motors. Compatible with E20, E25, E28, E30, E35, E40, E45, E48, E50, E55 families and their J equivalents, covering over 410 engine configurations.
Description
Function and Technical Context
The ignition module—also called the black box or ignition control unit—is the electronic component responsible for managing and timing the spark events in the ignition system of OMC outboard engines (Johnson and Evinrude). It receives signals from the crankshaft position sensor and, based on these, sends the precise electrical impulses to the ignition coils so that combustion occurs at the exact moment of the cycle. A faulty ignition module interrupts or desynchronizes this process, causing hard starting, engine stalls during navigation, or severe loss of performance that can render the vessel unusable. This reference directly replaces OMC part numbers 0584489, 583896, 584329, 584331, and 584489, and is the recommended replacement solution for all engines that use any of these factory references.
When Should This Part Be Replaced?
The most common symptoms of a faulty ignition module are: the engine starts with difficulty or does not start at all, backfiring or jerking occurs at different RPMs, the engine stops suddenly and spontaneously during navigation, or it is impossible to maintain a stable engine speed. As this is an electronic component with no moving parts, there is no defined replacement interval based on operating hours, but inspection is recommended at each seasonal maintenance service, especially if the engine has been in service for several years or has suffered electrical overvoltage. Replacing the module at the first signs of trouble avoids being stranded and rules out this cause before undertaking more costly diagnostics on the ignition system.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| E20 | E20CRCEM 1989, E20CREIE 1991, E20CREND 1992, E20CRESB 1990, E20CRLCEM 1989, E20CRLEIE 1991, E20CRLEND 1992, E20CRLESB 1990, E20ECEM 1989, E20EEIE 1991, E20EEND 1992, E20EESB 1990, E20ELCEM 1989, E20ELEIE 1991, E20ELEND 1992, E20ELESB 1990 |
| E25 | E25ECEB 1989, E25EEID 1991, E25EENS 1992, E25EESE 1990, E25ELCEB 1989, E25ELEID 1991, E25ELENS 1992, E25ELESE 1990, E25RCEM 1989, E25REIE 1991, E25REND 1992, E25RESB 1990, E25RLCEM 1989, E25RLEIE 1991, E25RLEND 1992, E25RLESB 1990, E25TECEM 1989, E25TEEIE 1991, E25TEEND 1992, E25TEESB 1990, E25TELCEM 1989, E25TELEIE 1991, E25TELEND 1992, E25TELESB 1990 |
| E28 | E28ESLCEA 1989, E28ESLEIB 1991, E28ESLENE 1992, E28ESLESM 1990 |
| E30 | E30ECED 1989, E30EEIC 1991, E30EENR 1992, E30EESS 1990, E30ELCED 1989, E30ELEIC 1991, E30ELENR 1992, E30ELESS 1990, E30RCED 1989, E30REIC 1991, E30RENR 1992, E30RESS 1990, E30RLCED 1989, E30RLEIC 1991, E30RLENR 1992, E30RLESS 1990, E30TECED 1989, E30TEEIC 1991, E30TEENR 1992, E30TEESS 1990, E30TELCED 1989, E30TELEIC 1991, E30TELENR 1992, E30TELESS 1990 |
| E35 | E35RCED 1989, E35REIC 1991, E35RENR 1992, E35RESS 1990, E35RLCED 1989, E35RLEIC 1991, E35RLENR 1992, E35RLESS 1990 |
| E40 | E40EEIA 1991, E40EENJ 1992, E40EENM 1992, E40EETB 1993, E40ELEIA 1991, E40ELENJ 1992, E40ELENM 1992, E40ELETB 1993, E40REIA 1991, E40RENM 1992, E40RETB 1993, E40RLEIA 1991, E40RLENM 1992, E40RLETB 1993, E40TEEIA 1991, E40TEENJ 1992, E40TEENM 1992, E40TEETB 1993, E40TELEIA 1991, E40TELENJ 1992, E40TELENM 1992, E40TELETB 1993, E40TLEIA 1991, E40TLENJ 1992, E40TLENM 1992, E40TLETB 1993, E40TLETF 1993, E40TTLEIA 1991, E40TTLENM 1992, E40TTLETB 1993, E40TTLETF 1993 |
| E45 | E45RCEIA 1991, E45RCENM 1992, E45RCLEIA 1991, E45RCLENM 1992, E45WMLEIA 1991, E45WMLENM 1992 |
| E48 | E48ESLEIM 1991, E48ESLENB 1992, E48ESLETE 1993 |
| E50 | E50BEEIA 1991, E50BEENJ 1992, E50BEENM 1992, E50BEETB 1993, E50BELEIA 1991, E50BELENJ 1992, E50BELENM 1992, E50BELETB 1993, E50JEIA 1991, E50JENJ 1992, E50JENM 1992, E50JETB 1993, E50RNLIB 1992, E50TELEIA 1991, E50TELENM 1992, E50TELETB 1993, E50TLEIA 1991, E50TLENJ 1992, E50TLENM 1992, E50TLETB 1993, E50TLETF 1993 |
| E55 | E55RWLEIA 1991, E55RWLENM 1992 |
| J20 | J20CRCEM 1989, J20CREIE 1991, J20CREND 1992, J20CRESB 1990, J20CRLCEM 1989, J20CRLEIE 1991, J20CRLEND 1992, J20CRLESB 1990, J20ECEM 1989, J20EEIE 1991, J20EEND 1992, J20EESB 1990, J20ELCEM 1989, J20ELEIE 1991, J20ELEND 1992, J20ELESB 1990 |
| J25 | J25ECEB 1989, J25EEID 1991, J25EENS 1992, J25EESE 1990, J25ELCEB 1989, J25ELEID 1991, J25ELENS 1992, J25ELESE 1990, J25RCEM 1989, J25REIE 1991, J25REND 1992, J25RESB 1990, J25RLCEM 1989, J25RLEIE 1991, J25RLEND 1992, J25RLESB 1990, J25TECEM 1989, J25TEEIE 1991, J25TEEND 1992, J25TEESB 1990, J25TELCEM 1989, J25TELEIE 1991, J25TELEND 1992, J25TELESB 1990 |
| J28 | J28ESLCEA 1989, J28ESLEIB 1991, J28ESLENE 1992, J28ESLESM 1990 |
| J30 | J30ECED 1989, J30EEIC 1991, J30EENR 1992, J30EESS 1990, J30ELCED 1989, J30ELEIC 1991, J30ELENR 1992, J30ELESS 1990, J30RCED 1989, J30REIC 1991, J30RENR 1992, J30RESS 1990, J30RLCED 1989, J30RLEIC 1991, J30RLENR 1992, J30RLESS 1990, J30TECED 1989, J30TEEIC 1991, J30TEENR 1992, J30TEESS 1990, J30TELCED 1989, J30TELEIC 1991, J30TELENR 1992, J30TELESS 1990 |
| J35 | J35RCED 1989, J35REIC 1991, J35RENR 1992, J35RESS 1990, J35RLCED 1989, J35RLEIC 1991, J35RLENR 1992, J35RLESS 1990 |
| J40 | J40EEIA 1991, J40EENJ 1992, J40EENM 1992, J40EETB 1993, J40ELEIA 1991, J40ELENJ 1992, J40ELENM 1992, J40ELETB 1993, J40REIA 1991, J40RENM 1992, J40RETB 1993, J40RLEIA 1991, J40RLENM 1992, J40RLETB 1993, J40TEEIA 1991, J40TEENJ 1992, J40TEENM 1992, J40TEETB 1993, J40TELEIA 1991, J40TELENJ 1992, J40TELENM 1992, J40TELETB 1993, J40TLEIA 1991, J40TLENJ 1992, J40TLENM 1992, J40TLETB 1993, J40TLETF 1993, J40TTLEIA 1991, J40TTLENM 1992, J40TTLETB 1993, J40TTLETF 1993 |
| J45 | J45RCEIA 1991, J45RCENM 1992, J45RCLEIA 1991, J45RCLENM 1992, J45WMLEIA 1991, J45WMLENM 1992 |
| J48 | J48ESLEIM 1991, J48ESLENB 1992, J48ESLETE 1993 |
| J50 | J50BEEIA 1991, J50BEENJ 1992, J50BEENM 1992, J50BEETB 1993, J50BELEIA 1991, J50BELENJ 1992, J50BELENM 1992, J50BELETB 1993, J50JEIA 1991, J50JENJ 1992, J50JENM 1992, J50JETB 1993, J50TELEIA 1991, J50TELENM 1992, J50TELETB 1993, J50TLEIA 1991, J50TLENJ 1992, J50TLENM 1992, J50TLETB 1993, J50TLETF 1993 |
| J55 | J55RWLEIA 1991, J55RWLENM 1992 |
| TE20 | TE20CRCEM 1989, TE20CREND 1992, TE20CRESB 1990, TE20CRLCEM 1989, TE20CRLEIE 1991, TE20CRLEND 1992, TE20CRLESB 1990, TE20CRLESF 1989 |
| TE25 | TE25ELCEB 1989, TE25ELEID 1991, TE25ELENS 1992, TE25ELESE 1990, TE25ELESF 1989 |
| TE30 | TE30ELCED 1989, TE30ELESF 1989, TE30ELESS 1990 |
| TE40 | TE40ELEIA 1991, TE40ELENJ 1992, TE40ELENM 1992, TE40ELETB 1993 |
| TE48 | TE48ESLETE 1993 |
| TJ20 | TJ20CRCEM 1989, TJ20CREND 1992, TJ20CRESB 1990, TJ20CRLCEM 1989, TJ20CRLEIE 1991, TJ20CRLEND 1992, TJ20CRLESB 1990, TJ20CRLESF 1989 |
| TJ25 | TJ25ELCEB 1989, TJ25ELEID 1991, TJ25ELENS 1992, TJ25ELESE 1990, TJ25ELESF 1989 |
| TJ30 | TJ30ELCED 1989, TJ30ELESF 1989, TJ30ELESS 1990 |
| TJ40 | TJ40ELEIA 1991, TJ40ELENJ 1992, TJ40ELENM 1992, TJ40ELETB 1993 |
| TJ48 | TJ48ESLETE 1993 |
| VE25 | VE25ELEID 1991, VE25ELENS 1992, VE25ELESE 1990, VE25REIE 1991, VE25RESB 1990 |
| VE28 | VE28ESLCEA 1989, VE28ESLESM 1990 |
| VE30 | VE30EEIC 1991, VE30EENR 1992, VE30EESS 1990, VE30ELEIC 1991, VE30ELENR 1992, VE30ELESS 1990 |
| VE40 | VE40EEIA 1991, VE40EENJ 1992, VE40EENM 1992, VE40EETB 1993, VE40ELEIA 1991, VE40ELENJ 1992, VE40ELENM 1992, VE40ELETB 1993, VE40TELEIA 1991, VE40TELENJ 1992, VE40TELENM 1992, VE40TELETB 1993, VE40TLEIA 1991, VE40TLENJ 1992, VE40TLENM 1992, VE40TLETB 1993, VE40TLETF 1993 |
| VE48 | VE48ESLENB 1992, VE48ESLETE 1993 |
| VE50 | VE50BEEIA 1991, VE50BEENJ 1992, VE50BEENM 1992, VE50BEETB 1993, VE50BELEIA 1991, VE50BELENJ 1992, VE50BELENM 1992, VE50BELETB 1993, VE50TELENM 1992, VE50TLEIA 1991, VE50TLENJ 1992, VE50TLENM 1992, VE50TLETB 1993, VE50TLETF 1993 |
| VJ25 | VJ25ELEID 1991, VJ25ELENS 1992, VJ25ELESE 1990, VJ25REIE 1991, VJ25RESB 1990 |
| VJ28 | VJ28ESLCEA 1989, VJ28ESLESM 1990 |
| VJ30 | VJ30EEIC 1991, VJ30EENR 1992, VJ30EESS 1990, VJ30ELENR 1992, VJ30ELESS 1990 |
| VJ40 | VJ40EEIA 1991, VJ40EENJ 1992, VJ40EENM 1992, VJ40EETB 1993, VJ40ELEIA 1991, VJ40ELENJ 1992, VJ40ELENM 1992, VJ40ELETB 1993, VJ40TELEIA 1991, VJ40TELENJ 1992, VJ40TELENM 1992, VJ40TELETB 1993, VJ40TLEIA 1991, VJ40TLENJ 1992, VJ40TLENM 1992, VJ40TLETB 1993, VJ40TLETF 1993 |
| VJ48 | VJ48ESLENB 1992, VJ48ESLETE 1993 |
| VJ50 | VJ50BEEIA 1991, VJ50BEENJ 1992, VJ50BEENM 1992, VJ50BEETB 1993, VJ50BELEIA 1991, VJ50BELENJ 1992, VJ50BELENM 1992, VJ50BELETB 1993, VJ50TELENM 1992, VJ50TLEIA 1991, VJ50TLENJ 1992, VJ50TLENM 1992, VJ50TLETB 1993, VJ50TLETF 1993 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0584489, 583896, 584329, 584331, 584489 |
