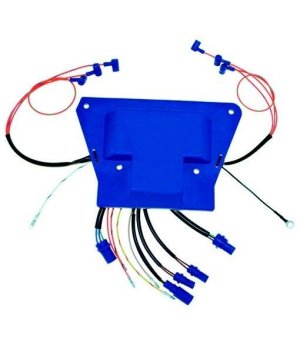

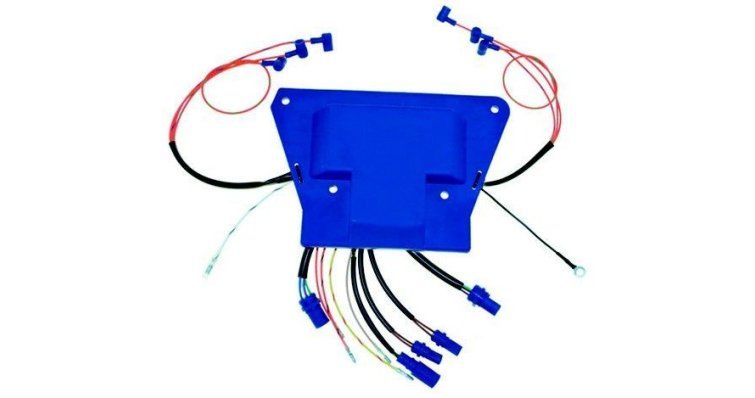

Black Box 584636 0586661

REC0586661
€358.34
Tax included
Cooling black box for Johnson and Evinrude 2-stroke engines. Compatible with BE200, BE225, BJ200, BJ225, E185, E200, E225, E250, J185, J200, J225, J250, LE200, LJ200, RJ200, RJ225, RJ250, SE200, SE225 and SJ200 families, covering more than 480 different models.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Order it before 9 hours y 5 minutes and receive it between tomorrow and Friday 7 August with Correos Express

Description

Function and Technical Context

The black box is the electronic ignition control module that governs the spark system in OMC outboard engines of the Johnson and Evinrude brands. Its mission is to process signals from the stator and position trigger to precisely calculate ignition timing and send the correct electrical impulse to the ignition coils in each combustion cycle. It works at the heart of the CDI (Capacitor Discharge Ignition) system, coordinating the capacitive discharge that generates the spark in each cylinder. A failure in this module causes loss of power, rough starting, intermittent shutdowns, or complete inability to start the engine, rendering the vessel inoperative.

When to Replace This Part?

The most common symptoms of a defective black box include misfires in one or several cylinders, sudden engine shutdowns at cruise speed, difficult starting especially when hot, and absent or irregular spark detected when checking the system with an ignition tester. This type of electronic module does not have a fixed preventive replacement interval, but it is advisable to check its condition at each seasonal maintenance and verify connector connections and waterproofing. Replace the black box as soon as the first symptoms appear to avoid being stranded at sea and to protect the remaining components of the ignition system from overloads caused by a degraded module.

Compatible Johnson/Evinrude Engines

SeriesModels
BE200BE200CXECM 1998, BE200CXEDR 1996, BE200CXEUA 1997, BE200TXECM 1998, BE200TXEDR 1996, BE200TXEUA 1997
BE225BE225CXECS 1998, BE225CXEDE 1996, BE225CXEUD 1997, BE225PXEDE 1996, BE225SLECS 1998, BE225SLEDE 1996, BE225SLEUD 1997, BE225TXECS 1998, BE225TXEDE 1996, BE225TXEUD 1997
BJ200BJ200CXEDR 1996, BJ200CXEEB 1999, BJ200CXEEN 1999, BJ200CXSSE Elec. Start, TNT, 25 IN. shaft, cntr rotate, N/A USA 2000, BJ200PLEEB 1999, BJ200PLEEN 1999, BJ200PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ200PLSSC Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, BJ200PXEEB 1999, BJ200PXEEN 1999, BJ200PXSSC Elec. Start, TNT, 25 IN. shaft, N/A USA 2000, BJ200TXEDR 1996, BJ200VCSIF elec start, TNT, 25 in , wht, cntr rotate, n/a usa 2001, BJ200VCSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000, BJ200VXSIF elec start, TNT, 25 in shaft, wht, n/a usa 2001, BJ200VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000
BJ225BJ225CXEEC 1999, BJ225CXEEN 1999, BJ225CXSSR Elec Start, TNT, 25 IN. shaft, cntr rotate, N/A USA 2000, BJ225PLEEC 1999, BJ225PLEEN 1999, BJ225PLSIF elec start, TNT, 20 in shaft, n/a usa 2001, BJ225PLSSR Elec. Start, TNT, 20 IN. shaft, N/A USA 2000, BJ225PXEEC 1999, BJ225PXEEN 1999, BJ225PXSSR Elec. Start, TNT, 25 IN. shaft, N/A USA 2000, BJ225VCSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, BJ225VCSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, BJ225VXSIF elec start, TNT, 25 in shaft, wht, n/a usa 2001, BJ225VXSSS Elec. Start, TNT, 25 IN. shaft, wht, N/A USA 2000
E185E185ESERK 1994, E185ESXETA 1993, E185ESXETF 1993
E200E200CXARC 1994, E200CXARK 1994, E200CXATF 1993, E200CXATS 1993, E200CXECM 1998, E200CXEDR 1996, E200CXEOC 1995, E200CXERK 1994, E200CXERS 1994, E200CXETD 1993, E200CXETF 1993, E200CXEUA 1997, E200CZARK 1994, E200CZATF 1993, E200CZATS 1993, E200CZEOC 1995, E200CZERK 1994, E200CZERS 1994, E200CZETD 1993, E200CZETF 1993, E200STLECE 1998, E200STLEDM 1996, E200STLEOA 1995, E200STLERK 1994, E200STLERR 1994, E200STLETC 1993, E200STLETF 1993, E200STLEUB 1997, E200TLECM 1998, E200TXARC 1994, E200TXARK 1994, E200TXATF 1993, E200TXATS 1993, E200TXECM 1998, E200TXEDR 1996, E200TXEOC 1995, E200TXERK 1994, E200TXERS 1994, E200TXETD 1993, E200TXETF 1993, E200TXEUA 1997, E200TZARK 1994, E200TZATF 1993, E200TZATS 1993, E200TZEOC 1995, E200TZERK 1994, E200TZERS 1994, E200TZETD 1993, E200TZETF 1993, E200WPXEEN 1999, E200WPXEES 1999, E200WPXSIF commercial, elec start, TNT, 25 in shaft 2001, E200WPXSSC Commercial, Elec Start, TNT, 25 IN shaft 2000
E225E225CXARC 1994, E225CXARK 1994, E225CXATF 1993, E225CXATS 1993, E225CXECS 1998, E225CXEDE 1996, E225CXEOB 1995, E225CXERK 1994, E225CXERM 1994, E225CXETA 1993, E225CXETF 1993, E225CXEUD 1997, E225CZARK 1994, E225CZATF 1993, E225CZATS 1993, E225CZECS 1998, E225CZEDE 1996, E225CZEOB 1995, E225CZERK 1994, E225CZERM 1994, E225CZETA 1993, E225CZETF 1993, E225CZEUD 1997, E225PLERK 1994, E225PLERM 1994, E225PLETA 1993, E225PLETF 1993, E225PXARC 1994, E225PXARK 1994, E225PXATF 1993, E225PXATS 1993, E225PXEDE 1996, E225PXEOB 1995, E225PXERK 1994, E225PXERM 1994, E225PXETA 1993, E225PXETF 1993, E225PZARK 1994, E225PZATF 1993, E225PZATS 1993, E225PZEOB 1995, E225PZERK 1994, E225PZERM 1994, E225PZETA 1993, E225PZETF 1993, E225STLECS 1998, E225STLEDE 1996, E225STLEOB 1995, E225STLERC 1994, E225STLERK 1994, E225STLETF 1993, E225STLEUD 1997, E225TLERK 1994, E225TLERM 1994, E225TLETA 1993, E225TLETF 1993, E225TXARC 1994, E225TXARK 1994, E225TXATF 1993, E225TXATS 1993, E225TXECS 1998, E225TXEDE 1996, E225TXEOB 1995, E225TXERK 1994, E225TXERM 1994, E225TXETA 1993, E225TXETF 1993, E225TXEUD 1997, E225TZARK 1994, E225TZATF 1993, E225TZATS 1993, E225TZECS 1998, E225TZEDE 1996, E225TZEOB 1995, E225TZERK 1994, E225TZERM 1994, E225TZETA 1993, E225TZETF 1993, E225TZEUD 1997
E250E250CXECD 1998, E250CZECD 1998, E250PXECD 1998, E250PZECD 1998
J185J185ESERK 1994, J185ESXETA 1993, J185ESXETF 1993
J200J200CXARC 1994, J200CXARK 1994, J200CXATF 1993, J200CXATS 1993, J200CXECM 1998, J200CXEDR 1996, J200CXEEB 1999, J200CXEEN 1999, J200CXEOC 1995, J200CXERK 1994, J200CXERS 1994, J200CXETD 1993, J200CXETF 1993, J200CXEUA 1997, J200CXSSE Elec. Start, TNT, 25 IN. shaft, cntr rotate 2000, J200CZARK 1994, J200CZATF 1993, J200CZATS 1993, J200CZEOC 1995, J200CZERK 1994, J200CZERS 1994, J200CZETD 1993, J200CZETF 1993, J200PLEEB 1999, J200PLEEN 1999, J200PLSIF elec start, TNT, 20 in shaft 2001, J200PLSSC Elec. Start, TNT, 20 IN. shaft 2000, J200PXEEB 1999, J200PXEEN 1999, J200PXSSC Elec. Start, TNT, 25 IN. shaft 2000, J200STLECE 1998, J200STLEDM 1996, J200STLEOA 1995, J200STLERK 1994, J200STLERR 1994, J200STLETC 1993, J200STLETF 1993, J200STLEUB 1997, J200TLECM 1998, J200TXARC 1994, J200TXARK 1994, J200TXATF 1993, J200TXATS 1993, J200TXECM 1998, J200TXEDR 1996, J200TXEOC 1995, J200TXERK 1994, J200TXERS 1994, J200TXETD 1993, J200TXETF 1993, J200TXEUA 1997, J200TZARK 1994, J200TZATF 1993, J200TZATS 1993, J200TZEOC 1995, J200TZERK 1994, J200TZERS 1994, J200TZETD 1993, J200TZETF 1993, J200VCXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, J200VCXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J200VLSIF elec start, TNT, 20 in shaft, wht 2001, J200VXSIF elec start, TNT, 25 in shaft, wht 2001, J200VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000, J200WPXEEN 1999, J200WPXEES 1999, J200WPXSIF commercial, elec start, TNT, 25 in shaft 2001, J200WPXSSC Commercial, Elec Start, TNT, 25 IN shaft 2000
J225J225CXARC 1994, J225CXARK 1994, J225CXATF 1993, J225CXATS 1993, J225CXECS 1998, J225CXEDE 1996, J225CXEEC 1999, J225CXEEN 1999, J225CXEOB 1995, J225CXERK 1994, J225CXERM 1994, J225CXETA 1993, J225CXETF 1993, J225CXEUD 1997, J225CXSSR Elec Start, TNT, 25 IN. shaft, cntr rotate 2000, J225CZARK 1994, J225CZATF 1993, J225CZATS 1993, J225CZECS 1998, J225CZEDE 1996, J225CZEOB 1995, J225CZERK 1994, J225CZERM 1994, J225CZETA 1993, J225CZETF 1993, J225CZEUD 1997, J225HGLSIF elec start, TNT, 20 in shaft 2001, J225HGLSSC Elec. Start, TNT, 20 IN. shaft, H.O., HS GC 2000, J225HPLEEN 1999, J225HPLEES 1999, J225HPLSIF elec start, TNT, 20 in shaft 2001, J225HPLSSC Elec. Start, TNT, 20 IN. shaft, H.O. 2000, J225PLEEC 1999, J225PLEEN 1999, J225PLERK 1994, J225PLERM 1994, J225PLETA 1993, J225PLETF 1993, J225PLSIF elec start, TNT, 20 in shaft 2001, J225PLSSR Elec. Start, TNT, 20 IN. shaft 2000, J225PXARC 1994, J225PXARK 1994, J225PXATF 1993, J225PXATS 1993, J225PXEDE 1996, J225PXEEC 1999, J225PXEEN 1999, J225PXEOB 1995, J225PXERK 1994, J225PXERM 1994, J225PXETA 1993, J225PXETF 1993, J225PXSSR Elec. Start, TNT, 25 IN. shaft 2000, J225PZARK 1994, J225PZATF 1993, J225PZATS 1993, J225PZEOB 1995, J225PZERK 1994, J225PZERM 1994, J225PZETA 1993, J225PZETF 1993, J225STLECS 1998, J225STLEDE 1996, J225STLEOB 1995, J225STLERC 1994, J225STLERK 1994, J225STLETF 1993, J225STLEUD 1997, J225TLERK 1994, J225TLERM 1994, J225TLETA 1993, J225TLETF 1993, J225TXARC 1994, J225TXARK 1994, J225TXATF 1993, J225TXATS 1993, J225TXECS 1998, J225TXEDE 1996, J225TXEOB 1995, J225TXERK 1994, J225TXERM 1994, J225TXETA 1993, J225TXETF 1993, J225TXEUD 1997, J225TZARK 1994, J225TZATF 1993, J225TZATS 1993, J225TZECS 1998, J225TZEDE 1996, J225TZEOB 1995, J225TZERK 1994, J225TZERM 1994, J225TZETA 1993, J225TZETF 1993, J225TZEUD 1997, J225VCXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, J225VCXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J225VLSIF elec start, TNT, 20 in shaft, wht 2001, J225VXSIF elec start, TNT, 25 in shaft, wht 2001, J225VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
J250J250CXECD 1998, J250CXEEN 1999, J250CXEES 1999, J250CXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J250CZECD 1998, J250CZEEN 1999, J250CZEES 1999, J250CZSSC Elec. Start, TNT, 30 IN. shaft, wht, cntr rotate 2000, J250PXECD 1998, J250PXEEN 1999, J250PXEES 1999, J250PXSSC Elec. Start, TNT, 25 IN. shaft 2000, J250PZECD 1998, J250PZEEN 1999, J250PZEES 1999, J250PZSSC Elec. Start, TNT, 30 IN. shaft 2000, J250VCXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, J250VCZSIF elec start, TNT, 30 in shaft, wht, cntr rotate 2001, J250VCZSSS Elec. Start, TNT, 30 IN. shaft, wht, cntr rotate 2000, J250VXSIF elec start, TNT, 25 in shaft, wht 2001, J250VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000, J250VZSSIF elec start, TNT, 30 in shaft, wht 2001, J250VZSSS Elec. Start, TNT, 30 IN. shaft, wht 2000
LE200LE200SLEDR 1996, LE200SLEOC 1995
LJ200LJ200SLEDR 1996, LJ200SLEOC 1995
RJ200RJ200PLSIF elec start, TNT, 20 in shaft 2001, RJ200PLSSC Elec. Start, TNT, 20 IN. shaft 2000, RJ200PXSSC Elec. Start, TNT, 25 IN. shaft 2000, RJ200VXSIF elec start, TNT, 25 in shaft, wht 2001, RJ200VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
RJ225RJ225CXSIF elec start, TNT, 25 in shaft, wht, cntr rotate 2001, RJ225CXSSS Elec Start, TNT, 25 IN. shaft, cntr rotate 2000, RJ225HGSSC Elec. Start, TNT, 20 IN. shaft, H.O., HS GC 2000, RJ225HLSIF elec start, TNT, 20 in shaft 2001, RJ225HLSSC Elec. Start, TNT, 20 IN. shaft, H.O. 2000, RJ225PLSIF elec start, TNT, 20 in shaft 2001, RJ225PLSSR Elec. Start, TNT, 20 IN. shaft 2000, RJ225PXSSR Elec. Start, TNT, 25 IN. shaft 2000, RJ225VXSIF elec start, TNT, 25 in shaft, wht 2001, RJ225VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000
RJ250RJ250CXSSS Elec. Start, TNT, 25 IN. shaft, wht, cntr rotate 2000, RJ250VXSIF elec start, TNT, 25 in shaft, wht 2001, RJ250VXSSS Elec. Start, TNT, 25 IN. shaft, wht 2000, RJ250VZSSIF elec start, TNT, 30 in shaft, wht 2001, RJ250VZSSS Elec. Start, TNT, 30 IN. shaft, wht 2000
SE200SE200WTPLA 1996, SE200WTPLG 1998, SE200WTPLS 1997, SE200WTPXA 1996, SE200WTPXG 1998, SE200WTPXS 1997
SE225SE225GLECC 1998, SE225NXECC 1998, SE225NZECC 1998, SE225QXECC 1998, SE225QZECC 1998
SJ200SJ200CXECM 1998, SJ200CXEUA 1997, SJ200SLECE 1998, SJ200SLEDM 1996, SJ200SLEUB 1997, SJ200TXECM 1998, SJ200TXEUA 1997, SJ200WTPLA 1996, SJ200WTPLG 1998, SJ200WTPLS 1997, SJ200WTPXA 1996, SJ200WTPXG 1998, SJ200WTPXS 1997
SJ225SJ225CXECS 1998, SJ225CXEDE 1996, SJ225CXEUD 1997, SJ225GLECC 1998, SJ225NXECC 1998, SJ225NZECC 1998, SJ225PXEDE 1996, SJ225QXECC 1998, SJ225QZECC 1998, SJ225SLECS 1998, SJ225SLEDE 1996, SJ225SLEUD 1997, SJ225TXECS 1998, SJ225TXEDE 1996, SJ225TXEUD 1997
VE200VE200SLETC 1993, VE200SLETF 1993, VE200TXETD 1993, VE200TXETF 1993, VE200TZETD 1993, VE200TZETF 1993
VE225VE225PLETA 1993, VE225PLETF 1993, VE225PXETA 1993, VE225PXETF 1993, VE225PZETA 1993, VE225PZETF 1993, VE225STLETF 1993, VE225TLETA 1993, VE225TLETF 1993, VE225TXETA 1993, VE225TXETF 1993, VE225TZETA 1993, VE225TZETF 1993
VJ200VJ200SLETC 1993, VJ200SLETF 1993, VJ200TXETD 1993, VJ200TXETF 1993, VJ200TZETD 1993, VJ200TZETF 1993
VJ225VJ225PLETA 1993, VJ225PLETF 1993, VJ225PXETA 1993, VJ225PXETF 1993, VJ225PZETA 1993, VJ225PZETF 1993, VJ225STLETF 1993, VJ225TLETA 1993, VJ225TLETF 1993, VJ225TXETA 1993, VJ225TXETF 1993, VJ225TZETA 1993, VJ225TZETF 1993



Equivalent Manufacturer References

Manufacturer/BrandReference/Part Number
OMC0586661, 584636, 584637, 585114, 586212, 586661
